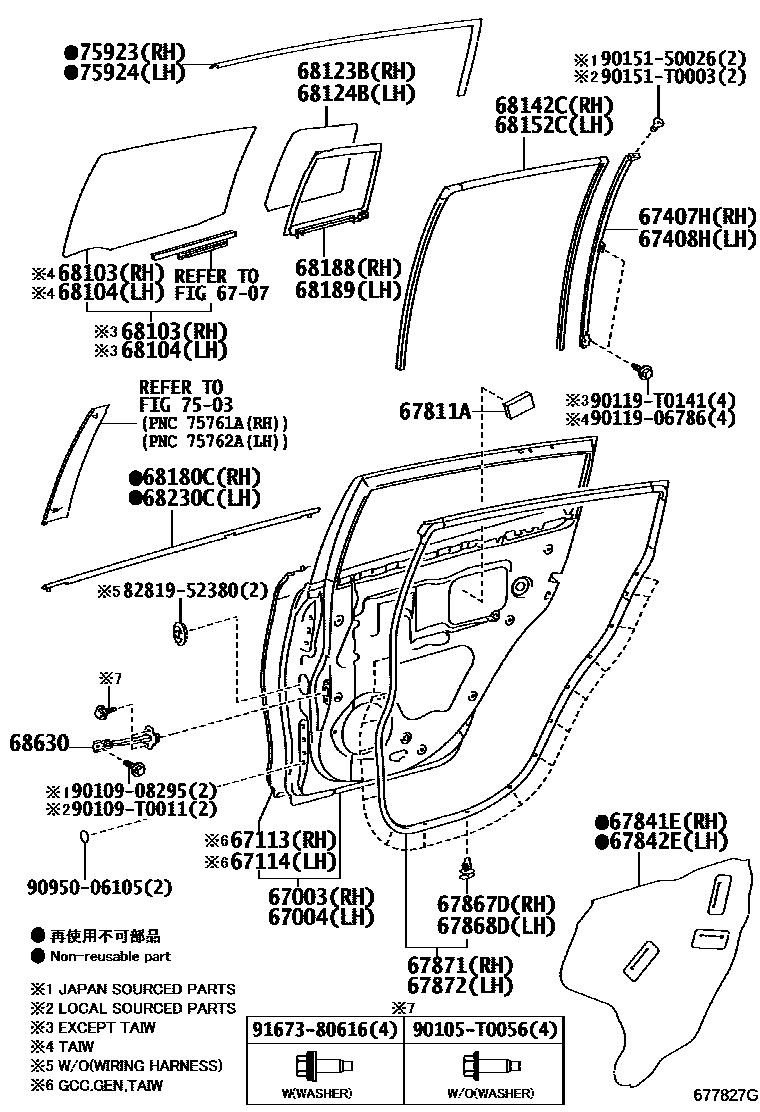

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0005 1DOOR PANEL 0012 1DOOR TRIM 0016 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-0D240iNCP15#..GCC,GEN,PH,VN201310-201708

main67003-0D280iNCP150..C201403-201712

sub67003-0D281

main67003-0D320iNSP151..TAIW201409-201802

main67003-0D420iNSP15#..GCC,GEN,PH,SA,TH,VN201709-201802

sub67003-0D421

main67003-0D421iNSP15#..A201803-202009

sub67003-0D610

main67003-0D430iNSP151..5F..R..C201802-202108

main67003-0D440iNSP151..F201804-202101

main67003-0D450iNSP150,151..H201806-201910

main67003-0D610iNSP150..RHD;NSP150..5F..PH202010-202302

main67003-0D640iNSP151..B201904-202011

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-0D240iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main67004-0D280iNSP151..C201403-201712

sub67004-0D281

main67004-0D320iNCP150..TAIW201409-201802

main67004-0D420iNSP15#..GCC,GEN,PH,SA,TH,VN201709-201802

sub67004-0D421

main67004-0D421iNSP15#..A201803-202009

sub67004-0D610

main67004-0D430iNSP151..5F..R..C201802-202108

main67004-0D440iNSP151..F201804-202101

main67004-0D450iNSP150,151..H201806-201910

main67004-0D610iNSP150..RHD;NSP150..5F..PH202010-202302

main67004-0D640iNSP151..B201904-202011

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-K0010iNCP150,NSP151..TAIW201409-201802

main67113-K0020iNCP15#,NSP150,151..GCC,GEN201403-201708

main67113-K0030iNSP151..PH,SA;NSP150..CVT..PH201709-202302

67114PANEL, REAR DOOR, OUTER LH

main67114-K0010iNCP150,NSP151..TAIW201409-201802

main67114-K0020iNCP15#,NSP150,151..GCC,GEN201403-201708

main67114-K0030iNSP150..RHD;NSP150,151..5F..(IDN,PH)..R201709-202302

67407HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH

main67407-0D120iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main67407-0D150iNSP151..TAIW201409-201802

main67407-0D170iNSP151..C201403-201712

main67407-0D320iNSP150..LHD..(BZ,GCC,GEN);NSP151,152..AGT,BZ,GCC,GEN,MA,TH,VN201709-202302

main67407-0D330iNSP151..5F..R..C201802-202108

main67407-0D340iNSP151..F201804-202101

67408HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH

main67408-0D120iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main67408-0D150iNCP150..TAIW201409-201802

main67408-0D170iNCP150..C201403-201712

main67408-0D320iNSP150..RHD;NSP150..5F..PH201709-202302

main67408-0D330iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

main67408-0D340iNSP151..F201804-202101

67811APAD, REAR DOOR SILENCER

main67811-02380iNSP150,151..H201806-201910

main67811-0D010iNCP15#..GCC,GEN,PH,VN201310-202002

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0D170iNCP15#..D201403-201708

main67841-0D220iNSP151..TAIW..R201605-201802

main67841-0D280iNCP15#..(GCC,GEN,PH,VN)..(G,R)201310-201708

main67841-0D300iNCP150..TAIW..(G,V)201409-201802

main67841-0D310iNCP150..TAIW..R201409-201604

main67841-0D350iNCP150..C201403-201712

main67841-0D430iNSP15#..(GCC,GEN,PH,SA,TH,VN)..(G,R,V)..A201709-201902

main67841-0D450iNSP151..C201802-201902

main67841-0D451iNSP151..5F..R..C201902-202108

main67841-0D460iNSP151..(G,V)..F201804-201902

main67841-0D461iNSP151..(G,V)..F201902-202101

main67841-0D470iNSP151..R..F201902-202101

main67841-0D480iNSP150,151..(G,R,V)..H201806-201910

main67841-0D500iNSP152..HTWC;NSP150,151..LHD..(GCC,GEN,VN)..(G,R)..A201710-202302

main67841-0D520iNSP150,151..D..H201806-201910

main67841-0D600iNSP151..R..F201804-201902

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-0D010iNSP15#..(GCC,GEN,PH,TH,VN)..(G,R)201310-201708

main67842-0D040iNCP15#..D201403-201708

main67842-0D090iNSP151..TAIW..R201605-201802

main67842-0D160iNSP151..TAIW..(G,V)201409-201802

main67842-0D170iNCP150..TAIW..R201409-201604

main67842-0D350iNSP151..C201403-201712

main67842-0D430iNSP15#..(GCC,GEN,PH,SA,TH,VN)..(G,R,V)..A201709-201902

main67842-0D450iNSP151..C201802-201902

main67842-0D451iNSP151..(G,V)..C;NSP151..CVT..R..C201902-202108

main67842-0D460iNSP151..(G,V)..F201804-201902

main67842-0D461iNSP151..(G,V)..F201902-202101

main67842-0D470iNSP151..R..F201902-202101

main67842-0D480iNSP150,151..(G,R,V)..H201806-201910

main67842-0D500iNSP150..CVT..PH;NSP151..(PH,SA)..(G,R,V)201710-202302

main67842-0D520iNSP150,151..D..H201806-201910

main67842-0D600iNSP151..R..F201804-201902

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-0D190iNSP151..C201708-201712

main67867-12150iNSP150..RHD;NSP150..5F..PH¥100201310-202302

main67868-0D070iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iNCP15#..GCC,GEN,PH,VN¥100201310-202302

main67868-0D080iNSP151..C201708-201712

67871WEATHERSTRIP, REAR DOOR, RH

main67871-0D120iNCP15#..GCC,GEN,PH,VN201310-201708

main67871-0D170iNCP150..TAIW201409-201802

main67871-0D190iNSP151..C201403-201712

main67871-0D300iNSP150..RHD;NSP150..5F..PH201709-202302

main67871-0D310iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

main67871-0D320iNSP151..F201804-202101

main67871-0D330iNSP150,151..H201806-201910

main67871-0D350iNSP151..B201904-202011

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0D120iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main67872-0D170iNCP150..TAIW201409-201802

main67872-0D190iNCP150..C201403-201712

main67872-0D300iNSP150..RHD;NSP150..5F..PH201709-202302

main67872-0D310iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

main67872-0D320iNSP151..F201804-202101

main67872-0D330iNSP150,151..H201806-201910

main67872-0D350iNSP151..B201904-202011

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-0D270iNSP151..TAIW201409-201802

main68130-0D290iNSP150,151..GEN,PH,VN201403-201708

main68130-0D330iNSP151..C201403-201712

main68130-0D350iNSP15#..GCC,TH201310-201708

sub68130-0D351

main68130-0D521iNSP151..PH,SA;NSP150..CVT..PH201709-202302

main68130-0D531iNSP150,151..GCC201710-202302

main68130-0D540iNSP151..5F..R..C201802-202108

main68130-0D550iNSP151..F201804-202101

main68130-0D560iNSP150,151..H201806-201910

sub68130-0D561

main68130-0D620iNSP151..B201904-202011

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-0D270iNSP151..TAIW201409-201802

main68140-0D290iNCP15#..GCC,GEN,PH,VN201403-201708

main68140-0D330iNSP151..C201403-201712

main68140-0D350iNSP15#..GCC,TH201310-201708

sub68140-0D351

main68140-0D521iNSP151..PH,SA;NSP150..CVT..PH201709-202302

main68140-0D531iNSP150,151..GCC201710-202302

main68140-0D540iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

main68140-0D550iNSP151..F201804-202101

main68140-0D560iNSP150,151..H201806-201910

sub68140-0D561

main68140-0D620iNSP151..B201904-202011

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-0D200iNCP15#..GCC,GEN,PH,VN201403-201708

main68123-0D210iNSP151..TAIW201409-201802

main68123-0D240iNCP150..C201403-201712

main68123-0D250iNSP15#..GCC,TH201310-201708

sub68123-0D251

main68123-0D381iNSP151..PH,SA;NSP150..CVT..PH201709-202302

main68123-0D391iNSP150,151..GCC201710-202302

main68123-0D400iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

main68123-0D410iNSP151..F201804-202101

main68123-0D420iNSP150,151..H201806-201910

sub68123-0D421

main68123-0D470iNSP151..B201904-202011

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-0D200iNSP150,151..GEN,PH,VN201403-201708

main68124-0D210iNCP150..TAIW201409-201802

main68124-0D240iNSP151..C201403-201712

main68124-0D250iNSP15#..GCC,TH201310-201708

sub68124-0D251

main68124-0D381iNSP151..PH,SA;NSP150..CVT..PH201709-202302

main68124-0D391iNSP150,151..GCC201710-202302

main68124-0D400iNSP151..5F..R..C201802-202108

main68124-0D410iNSP151..F201804-202101

main68124-0D420iNSP150,151..H201806-201910

sub68124-0D421

main68124-0D470iNSP151..B201904-202011

68142CRUN, REAR DOOR GLASS, RH

main68142-0D150iNCP15#..GCC,GEN,PH,VN201310-201708

main68142-0D190iNSP151..TAIW201409-201802

main68142-0D210iNSP151..C201403-201712

main68142-0D360iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,TH,VN)..A201709-202302

main68142-0D370iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

main68142-0D380iNSP151..F201804-202101

main68142-0D390iNSP150,151..H201806-201910

main68142-0D410iNSP151..B201904-202011

68152CRUN, REAR DOOR GLASS, LH

main68152-0D130iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main68152-0D170iNCP150..TAIW201409-201802

main68152-0D190iNCP150..C201403-201712

main68152-0D320iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,TH,VN)..A201709-202302

main68152-0D330iNSP151..5F..R..C201802-202108

main68152-0D340iNSP151..F201804-202101

main68152-0D350iNSP150,151..H201806-201910

main68152-0D370iNSP151..B201904-202011

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-0D180iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main68180-0D230iNCP150..TAIW201409-201802

main68180-0D250iNCP150..C201403-201712

main68180-0D430iNSP15#..GCC,GEN,PH,SA,TH,VN201709-201804

sub68180-0D431

main68180-0D431iNSP151..PH,SA;NSP150..CVT..PH201805-202302

main68180-0D440iNSP151..C201802-201804

sub68180-0D441

main68180-0D441iNSP151..5F..R..C201805-202108

main68180-0D451iNSP151..F201804-202101

main68180-0D460iNSP150,151..H201806-201910

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-0D120iNCP15#..GCC,GEN,PH,VN201310-201708

main68188-0D170iNCP150..TAIW201409-201802

main68188-0D200iNSP151..C201403-201712

main68188-0D300iNSP150..RHD;NSP150..5F..PH201709-202302

main68188-0D310iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

main68188-0D320iNSP151..F201804-202101

main68188-0D330iNSP150,151..H201806-201910

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-0D120iNCP15#..GCC,GEN,PH,VN201310-201708

main68189-0D170iNCP150..TAIW201409-201802

main68189-0D200iNSP151..C201403-201712

main68189-0D300iNSP151..PH,SA;NSP150..CVT..PH201709-202302

main68189-0D310iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

main68189-0D320iNSP151..F201804-202101

main68189-0D330iNSP150,151..H201806-201910

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-0D180iNCP15#..GCC,GEN,PH,VN201310-201708

main68230-0D230iNSP151..TAIW201409-201802

main68230-0D250iNCP150..C201403-201712

main68230-0D430iNSP15#..GCC,GEN,PH,SA,TH,VN201709-201804

sub68230-0D431

main68230-0D431iNSP151..PH,SA;NSP150..CVT..PH201805-202302

main68230-0D440iNSP151..C201802-201804

sub68230-0D441

main68230-0D441iNSP151..(G,V)..C;NSP151..CVT..R..C201805-202108

main68230-0D451iNSP151..F201804-202101

main68230-0D460iNSP150,151..H201806-201910

68630CHECK ASSY, REAR DOOR

main68630-0D170iNSP151..PH,SA;NSP150..CVT..PH201310-202302

main68630-0D200iNSP151..TAIW201409-202101

main68630-0D210iNSP151..5F..R..C201403-202108

7503

75923TAPE, BLACK OUT, NO.2 RH

main75923-0D120iNCP15#..GCC,GEN,PH,VN201310-201708

main75923-0D170iNCP150..TAIW201409-201802

main75923-0D210iNCP150..C201403-201712

main75923-0D340iNSP151..PH,SA;NSP150..CVT..PH201709-202302

main75923-0D350iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

main75923-0D360iNSP151..F201804-202101

main75923-0D370iNSP150,151..H201806-201910

main75923-0D380iNSP151..B201904-202011

75924TAPE, BLACK OUT, NO.2 LH

main75924-0D120iNCP15#..GCC,GEN,PH,VN201310-201708

main75924-0D170iNCP150..TAIW201409-201802

main75924-0D210iNSP151..C201403-201712

main75924-0D340iNSP150..RHD;NSP150..5F..PH201709-202302

main75924-0D350iNSP151..5F..R..C201802-202108

main75924-0D360iNSP151..F201804-202101

main75924-0D370iNSP150,151..H201806-201910

main75924-0D380iNSP151..B201904-202011

8281952380GROMMET, WIRING HARNESS

main82819-52380

90105T0056

main90105-T0056

9010908295

main90109-08295¥80

90109T0011

main90109-T0011

9011906786

main90119-06786¥90

90119T0141

main90119-T0141

9015150026

main90151-50026¥60

90151T0003

main90151-T0003

9095006105

main90950-06105¥110

9167380616

main91673-80616¥60

38 parts on this diagram · 4 diagrams in section
