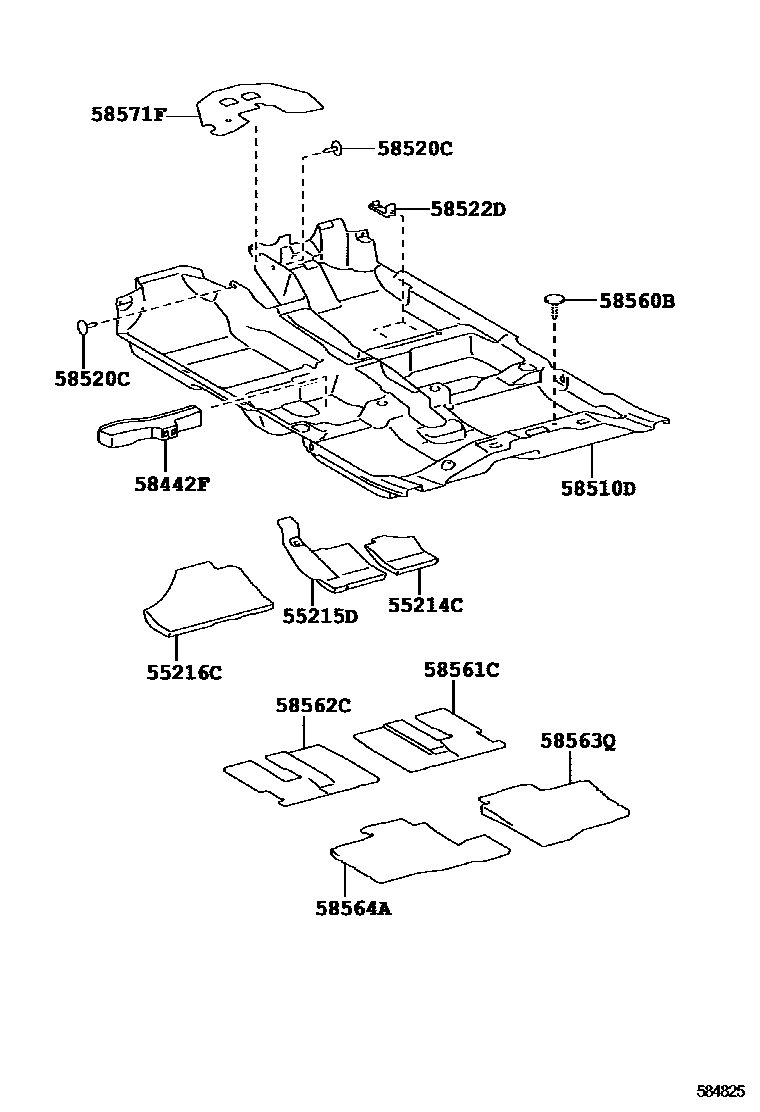

MAT & CARPET

0001 1 0004 1 0007 1 0008 1 0009 1 0011 1 0012 1 0013 1

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-0D170iNSP150..RHD201310-202302

main55214-0D180iNSP150,151..LHD..(GCC,GEN,PH,VN)..A201403-201902

main55214-0D182iNSP150..5F..PH201902-202302

main55214-0D200iNSP151..B201904-202011

main55214-0D220iNSP151..F201409-202101

main55214-0D230iNCP150..C201403-202108

main55214-0D280iNSP150,151..H201806-201808

sub55214-0D281

main55214-0D281iNSP150,151..H201809-201910

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-0D150iNSP150..5F..PH201403-202302

main55215-0D180iNSP151..TAIW201409-202101

main55215-0D190iNSP151..5F..R..C201403-202108

main55215-0D210iNSP151..B201904-202011

main55215-0D220iNSP152201310-202302

main55215-0D260iNSP150,151..H201806-201910

55216CPAD, DASH PANEL INSULATOR, NO.4

main55216-0D030iNCP151..RHD201310-201811

main55216-0D070iNSP151..TAIW201409-202101

main55216-0D110iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main55216-0D130iNCP15#..LHD..(GCC,GEN,PH,VN)201403-201902

main55216-0D150iNSP151..B201904-202011

main55216-0D180iNSP150,151..H201806-201910

main55216-0D200iNSP150..RHD201811-202302

main55216-0D210iNSP150,151..CVT..PH201902-202302

58442FCOVER, JACK

main58442-0D110iNSP150..RHD;NSP150..5F..PH201310-202302

main58442-0D120iNSP151..B201904-202011

main58442-0D150iNCP150..TAIW201409-202101

main58442-0D170iNSP151..5F..R..C201403-202108

main58442-0D230iNSP150,151..H201806-201910

58510DCARPET ASSY, FLOOR, FRONT

main58510-0DB10-C1iNCP151,NSP151..VN201403-201708

BLACK,TRIM0#,2#

main58510-0DB10-C1iNCP15#,NSP150,151..PH201403-201708

BLACK,TRIM2#

main58510-0DB20-C1iNCP15#,NSP150,151..LHD..(GCC,GEN)201403-201708

BLACK,TRIM0#,2#

main58510-0DB30-C1iNSP152201310-201708

BLACK,TRIM2#

main58510-0DB70-C1iNCP150,NSP151..TAIW..(G,R)201409-201802

BLACK,TRIM2#

main58510-0DB70-C1iNCP150,NSP151..TAIW..V201409-201802

BLACK,TRIM0#,2#

main58510-0DC10-C1iNCP150,NSP151..C201403-201712

BLACK,TRIM2#

main58510-0DC30-C0iNCP151,NSP150..RHD201403-201708

BLACK,TRIM0#,2#

main58510-0DE50-C0iNSP152201709-201811

BLACK,TRIM2#

main58510-0DE51-C0iNSP152201811-201905

BLACK,TRIM2#

main58510-0DE52iNSP152201905-201910

main58510-0DE60-C0iNSP151..SA201710-201811

BLACK,TRIM0#,2#

main58510-0DE60-C0iNSP151..SA201710-201811

BLACK,TRIM2#

main58510-0DE61-C0iNSP150..RHD201811-201905

BLACK,TRIM0#,2#

main58510-0DE61-C0iNSP151..SA201811-201905

BLACK,TRIM2#

main58510-0DE62iNSP150,151..RHD..A201905-201911

main58510-0DE70-C0iNSP151..VN201710-201902

BLACK,TRIM2#

main58510-0DE70-C0iNSP150,151..PH201710-201902

BLACK,TRIM0#

main58510-0DE72-C1iNSP150,151..PH201902-201911

BLACK,TRIM2#

main58510-0DE72-C1iNSP151..VN201902-201911

BLACK,TRIM0#

main58510-0DE80-C0iNSP150,151..LHD..(GCC,GEN)..A201710-201902

BLACK,TRIM0#,2#

main58510-0DE82-C1iNSP150,151..LHD..(GCC,GEN)..A201902-201911

BLACK/BLACK,TRIM0#,2#

main58510-0DE90-C0iNSP151..(G,R)..F201804-201901

BLACK,TRIM2#

main58510-0DE90-C0iNSP151..V..F201804-201901

BLACK,TRIM0#,2#

main58510-0DE91-C1iNSP151..V..F201901-202101

BLACK,TRIM0#,2#

main58510-0DE91-C1iNSP151..(G,R)..F201901-202101

BLACK,TRIM2#

main58510-0DF11-C1iNSP151..B201904-202011

BLACK,TRIM2#

main58510-0DF20-C0iNSP151..C201802-201901

BLACK,TRIM2#

main58510-0DF22iNSP151..5F..R..C201901-202108

sub58510-0DG91

main58510-0DF22-C1iNSP151..(G,V)..C;NSP151..CVT..R..C201901-202110

BLACK,TRIM2#

sub58510-0DG91

main58510-0DF61-C1iNSP150,151..H201806-201901

BLACK/BLACK,TRIM2#

main58510-0DF61-C2iNSP150,151..H201901-201910

BLACK/BLACK,TRIM2#

main58510-0DG20-C0iNSP152201911-202302

BLACK,TRIM2#

main58510-0DG30-C0iNSP151..SA201911-202207

BLACK,TRIM2#

sub58510-0DG20

main58510-0DG30-C0iNSP150..RHD201911-202108

BLACK,TRIM0#,2#

sub58510-0DG20

main58510-0DG40-C0iNSP150..5F..PH201911-202207

BLACK,TRIM2#

main58510-0DG40-C0iNSP151..VN201911-202302

BLACK,TRIM0#

main58510-0DG50-C0iNSP150,151..LHD..(GCC,GEN)201911-202302

BLACK,TRIM0#,2#

main58510-0DG91-C0iNSP151..(G,V)..C;NSP151..CVT..R..C202110

BLACK,TRIM2#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-C0iNCP150,NSP151..V..A201409-201610

BLACK,TRIM0#,2#

sub90467-05164

main90467-05164-C0iNCP150,NSP151..V..A201409-201610

BLACK,TRIM2#

sub90467-05164

main90467-05164-C7iNSP151..V..F201610-202101

BLACK,TRIM0#,2#

sub90467-05164

main90467-05164-C7iNSP151..V..F201804-202101

BLACK,TRIM2#

sub90467-05164

main90467-05164-C7iNSP151..5F..R..C201802-202108

BLACK,TRIM2#,(J)

sub90467-05164

main90467-T0004-C1iNSP150,151..(GCC,GEN)..A201310-202009

BLACK,TRIM0#,2#

main90467-T0004-C1iNSP150,151..(GCC,GEN)..A201710-202009

BLACK,TRIM0#

main90467-T0004-C1iNCP150..V..C;NSP150,151..IDN,PH201403-202009

BLACK,TRIM2#

main90467-T0004-C4iNSP152202009-202302

BLACK,TRIM2#

main90467-T0004-C4iNSP152202009-202302

BLACK,TRIM0#,2#

main90467-T0004-C4iNSP150,151..LHD..(GCC,GEN)202009-202302

BLACK,TRIM0#

main90467-T0004-C4iNSP151..CVT..R..(B,C);NSP151..(D,G,V)..(B,C,H);NSP150,151..(AGT,BZ)..(D,R)201802-202108

BLACK,TRIM2#,(L)

58522DHOOK, FLOOR CARPET, NO.2

main58522-52030iNSP151..F201310-202302

58560BCLIP(FOR FLOOR CARPET, REAR)

main90467-07049-23iNSP150..LHD..(BZ,GCC,GEN);NSP151,152..AGT,BZ,GCC,GEN,TH,VN201610-202302

BLACK

sub90467-07049

main90467-07049-23iNSP151..CVT..R..(B,C);NSP151..(D,G,V)..(B,C)201802-202108

BLACK,TRIM2#

sub90467-07049

main90467-07049-C0iNCP15#,NSP15#201310-201610

BLACK

sub90467-07049

58561CSILENCER, FRONT FLOOR, NO.1

main58561-0D220iNCP150..TAIW201409-201802

MARK 3A:SEE ILL.

main58561-0D230iNCP15#..GCC,GEN,PH,VN201310-201708

main58561-0D240iNSP151..B201904-202011

main58561-0D280iNCP150..TAIW201409-201802

MARK A:REFER ILLUST.

main58561-0D280iNSP151..F201804-202101

main58561-0D300iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main58561-0D430iNSP15#..(GCC,GEN,PH,SA,TH,VN)..A201709-201911

main58561-0D440iNSP150,151..H201806-201910

main58561-0D460iNSP150..LHD..(GCC,GEN);NSP151,152..GCC,GEN,TH,VN201911-202302

58562CSILENCER, FRONT FLOOR, NO.2

main58562-0D190iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main58562-0D200iNSP151..B201904-202011

main58562-0D240iNSP151..F201409-202101

main58562-0D260iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

58563QSILENCER, FRONT FLOOR, NO.3

main58563-0D220iNCP15#..GCC,GEN,PH,VN201310-201708

main58563-0D270iNCP150..TAIW201409-201802

main58563-0D290iNSP151..C201403-201712

58564ASILENCER, FRONT FLOOR, NO.4

main58564-0D110iNSP151..C201403-201712

main58564-0D180iNCP15#..GCC,GEN,PH,VN201310-201708

main58564-0D230iNCP150..TAIW201409-201802

58571FPAD, FRONT FLOOR, FRONT

main58571-0D040iNSP151..C201403-201712

main58571-0D050iNCP15#..GCC,GEN,PH,VN201310-201708

main58571-0D060iNSP151..TAIW201409-201802

main58571-0D130iNSP151..F201804-202101

main58571-0D150iNSP151..5F..R..C201802-202108

13 parts on this diagram · 8 diagrams in section
