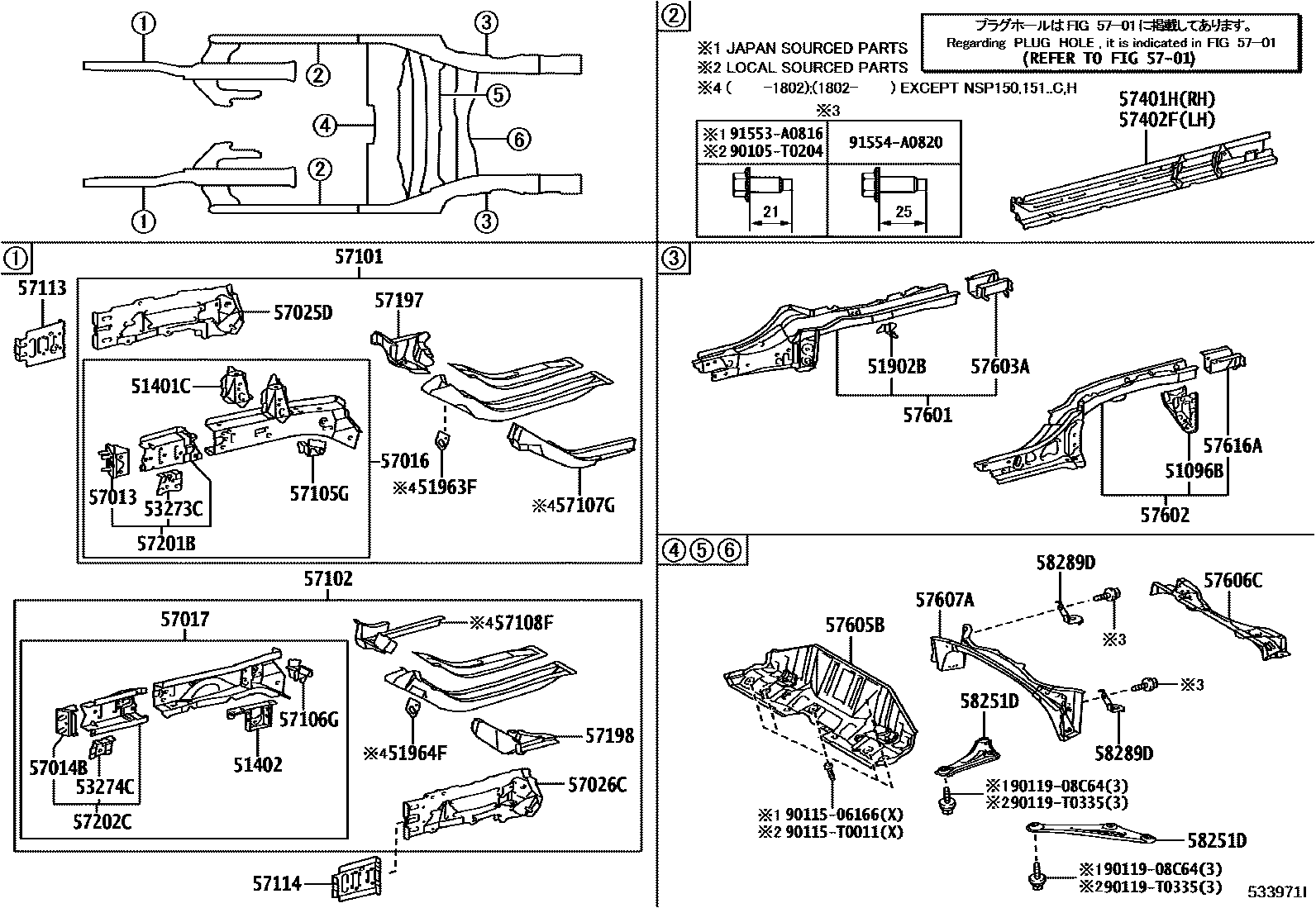

FLOOR SIDE MEMBER

51096BHOOK SUB-ASSY, TRANSPORT, REAR LH

main51096-0D040iNCP150..C201310-202302

main51096-0D070iNCP150..TAIW201409-202101

main51096-0D090iNSP150,151..H201806-201910

51401CBRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-0D020iNCP150..TAIW201310-202302

main51401-0D040iNCP150..C201403-202108

main51401-0D060iNSP150,151..H201806-201910

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-0D020iNSP151..TAIW201310-202302

main51402-0D030iNSP151..C201403-202108

main51402-0D050iNSP150,151..H201806-201910

51902BHANGER SUB-ASSY, EXHAUST PIPE, NO.2

main51902-0D020iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201310-202302

main51902-0D030iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main51902-0D050iNCP150..TAIW201409-202101

main51902-0D070iNSP150,151..H201806-201910

51963FHOOK, TRANSPORT

main51963-0D030iNSP150..RHD;NSP150..5F..PH201310-202302

main51963-0D130iNSP151..C201403-201712

main51963-0D150iNSP151..TAIW201409-202101

51964FHOOK, TRANSPORT, LH

main51963-0D030iNSP15#..GCC,GEN,PH,TH,VN201310-202302

main51963-0D130iNCP150..C201403-201712

main51963-0D150iNSP151..TAIW201409-202101

53273CREINFORCEMENT, RADIATOR SUPPORT, RH

main53273-0D070iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201310-202302

main53273-0D090iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main53273-0D100iNCP150..TAIW201409-202101

main53273-0D150iNSP150,151..H201806-201910

53274CREINFORCEMENT, RADIATOR SUPPORT, LH

main53274-0D040iNCP15#..GCC,GEN,PH,VN201310-202302

main53274-0D060iNSP151..5F..R..C201403-202108

main53274-0D070iNSP151..TAIW201409-202101

main53274-0D100iNSP150,151..H201806-201910

5701

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-0D060iNCP15#..GCC,GEN,PH,VN201310-201701

sub57013-0D061

main57013-0D061iNSP15#..GCC,GEN,PH,TH,VN201702-202302

main57013-0D080iNCP150..C201403-201701

sub57013-0D081

main57013-0D081iNSP151..C201702-202108

main57013-0D090iNSP151..TAIW201409-201701

sub57013-0D091

main57013-0D091iNSP151..TAIW201702-202101

main57013-0D110iNSP150,151..H201806-201910

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-0D050iNCP15#..GCC,GEN,PH,VN201310-201701

sub57014-0D051

main57014-0D051iNSP150..RHD;NSP150..5F..PH201702-202302

main57014-0D070iNCP150..C201403-201701

sub57014-0D071

main57014-0D071iNSP151..(G,V)..C;NSP151..CVT..R..C201702-202108

main57014-0D080iNSP151..TAIW201409-201701

sub57014-0D081

main57014-0D081iNSP151..TAIW201702-202101

main57014-0D100iNSP150,151..H201806-201910

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-0D110iNSP151..PH,SA;NSP150..CVT..PH201310-202302

main57016-0D130iNCP150..C201403-202108

main57016-0D160iNSP151..TAIW201409-202101

main57016-0D180iNSP150,151..H201806-201910

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-0D180iNCP15#..GCC,GEN,PH,VN201310-202302

main57017-0D200iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main57017-0D230iNCP150..TAIW201409-202101

main57017-0D280iNSP150,151..H201806-201910

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-0D030iNSP15#..GCC,GEN,PH,TH,VN201310-202302

main57025-0D060iNCP150..C201403-202108

main57025-0D090iNSP151..TAIW201409-202101

main57025-0D100iNSP151..B201904-202011

main57025-0D140iNSP150,151..H201806-201910

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-0D030iNCP15#..GCC,GEN,PH,VN201310-202302

main57026-0D060iNCP150..C201403-202108

main57026-0D090iNSP151..F201409-202101

main57026-0D100iNSP151..B201904-202011

main57026-0D150iNSP150,151..H201806-201910

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-0D140iNSP150..RHD;NSP150..5F..PH201310-202302

main57101-0D180iNSP151..C201403-202108

main57101-0D230iNSP151..TAIW201409-202101

main57101-0D260iNSP150,151..H201806-201910

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-0D200iNCP15#..GCC,GEN,PH,VN201310-202302

main57102-0D240iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main57102-0D280iNCP150..TAIW201409-202101

main57102-0D330iNSP150,151..H201806-201910

57105GSPACER SUB-ASSY, SUSPENSION MEMBER, FRONT RH

main57105-0D040iNSP151..F201310-202302

main57105-0D060iNSP151..5F..R..C201403-202108

main57105-0D080iNSP150,151..H201806-201910

57106GSPACER SUB-ASSY, SUSPENSION MEMBER, FRONT LH

main57106-0D020iNCP15#..GCC,GEN,PH,VN201310-202302

main57106-0D040iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main57106-0D060iNSP150,151..H201806-201910

57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH

main57107-0D060iNSP151..PH,SA;NSP150..CVT..PH201310-202302

main57107-0D090iNSP151..C201403-201712

57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH

main57108-0D060iNSP151..PH,SA;NSP150..CVT..PH201310-202302

main57108-0D080iNSP151..C201403-201712

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-0D030iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201310-202302

main57113-0D050iNSP151..C201403-202108

main57113-0D060iNCP150..TAIW201409-202101

main57113-0D130iNSP150,151..H201806-201910

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-0D030iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201310-202302

main57114-0D050iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main57114-0D060iNCP150..TAIW201409-202101

main57114-0D130iNSP150,151..H201806-201910

57197BOX, TORQUE, FRONT RH

main57197-0D040iNSP151..F201310-202302

main57197-0D060iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main57197-0D080iNSP150,151..H201806-201910

57198BOX, TORQUE, FRONT LH

main57198-0D040iNSP151..TAIW201310-202302

main57198-0D060iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main57198-0D080iNSP150,151..H201806-201910

57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

main57201-0D020iNCP15#..GCC,GEN,PH,VN201310-201701

sub57201-0D021

main57201-0D021iNSP150..RHD;NSP150..5F..PH201702-202302

main57201-0D040iNSP151..C201403-201701

sub57201-0D041

main57201-0D041iNSP151..C201702-202108

main57201-0D050iNSP151..TAIW201409-201701

sub57201-0D051

main57201-0D051iNSP151..TAIW201702-202101

main57201-0D070iNSP150,151..H201806-201910

57202CEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main57202-0D030iNSP15#..GCC,GEN,PH,TH,VN201310-201701

sub57202-0D031

main57202-0D031iNSP151..PH,SA;NSP150..CVT..PH201702-202302

main57202-0D050iNSP151..C201403-201701

sub57202-0D051

main57202-0D051iNSP151..(G,V)..C;NSP151..CVT..R..C201702-202108

main57202-0D060iNCP150..TAIW201409-201701

sub57202-0D061

main57202-0D061iNSP151..TAIW201702-202101

main57202-0D080iNSP150,151..H201806-201910

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-0D240iNSP150..RHD;NSP150..5F..PH201310-202302

main57401-0D250iNCP150,NSP151..TAIW201409-202101

main57401-0D260iNCP150,NSP151..C201403-202108

main57401-0D290iNSP151..B201904-202011

main57401-0D340iNSP150,151..H201806-201910

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-0D220iNSP150..RHD;NSP150..5F..PH201310-202302

main57402-0D230iNCP150,NSP151..TAIW201409-202101

main57402-0D240iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main57402-0D260iNSP151..B201904-202011

main57402-0D360iNSP150,151..H201806-201910

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-0D240iNSP150..RHD;NSP150..5F..PH201310-202302

main57601-0D310iNSP151..C201403-202108

main57601-0D360iNSP151..TAIW201409-202101

main57601-0D420iNSP150,151..H201806-201910

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-0D190iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201310-202302

main57602-0D250iNSP151..5F..R..C201403-202108

main57602-0D300iNSP151..TAIW201409-202101

main57602-0D370iNSP150,151..H201806-201910

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-0D090iNSP151..PH,SA;NSP150..CVT..PH201310-202302

main57603-0D120iNSP151..C201403-202108

main57603-0D140iNCP150..TAIW201409-202101

main57603-0D210iNSP150,151..H201806-201910

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-0D120iNSP150..RHD;NSP150..5F..PH201310-202302

main57605-0D150iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main57605-0D160iNCP150..TAIW201409-202101

main57605-0D240iNSP150,151..H201806-201910

main57605-0D270iNSP151..B201904-202011

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-0D060iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,TH,VN)..A201310-202302

main57606-0D110iNCP150..C201403-202108

main57606-0D140iNSP150,151..H201806-201910

main57606-0D160iNSP151..B201904-202011

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-0D040iNSP150..RHD;NSP150..5F..PH201310-202302

main57607-0D060iNSP151..5F..R..C201403-202108

main57607-0D070iNCP150..TAIW201409-202101

main57607-0D090iNSP150,151..H201806-201910

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-0D070iNCP15#..GCC,GEN,PH,VN201310-202302

main57616-0D100iNSP151..5F..R..C201403-202108

main57616-0D120iNSP151..TAIW201409-202101

main57616-0D170iNSP150,151..H201806-201910

58251DBRACE, FLOOR PANEL, FRONT

main58251-0D090iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,TH,VN)..A201310-202302

RH

main58251-0D110iNSP151..B201904-202011

RH

main58251-0D120iNSP151..F201409-202101

RH

main58251-0D130iNCP150..C201403-202108

RH

main58251-0D150iNSP150,151..H201806-201910

RH

main58252-0D070iNSP150..RHD;NSP150..5F..PH201310-202302

LH

main58252-0D090iNSP151..B201904-202011

LH

main58252-0D100iNSP151..TAIW201409-202101

LH

main58252-0D110iNSP151..C201403-202108

LH

main58252-0D140iNSP150,151..H201806-201910

LH

58289DBRACKET, FLOOR BRAKE HOSE, REAR

main58289-0D090iNSP150,151..H201806-201910

RH

main58289-0D110iNCP150..TAIW201409-202101

RH

main58289-0D120iNSP152..HTWC;NSP151..CVT..(IDN,MA,VN)..R;NSP150,151..(GCC,IDN,MA)..(D,G,V)201310-202302

RH

main58299-0D090iNSP150,151..H201806-201910

LH

main58299-0D110iNSP151..F201409-202101

LH

main58299-0D120iNSP151..PH,SA;NSP150..CVT..PH201310-202302

LH

90105T0204

main90105-T0204

9011506166

main90115-06166

90115T0011

main90115-T0011

9011908C64

main90119-08C64

90119T0335

main90119-T0335

91553A0816

main91553-A0816

91554A0820

main91554-A0820

45 parts on this diagram · 1 diagram in section
