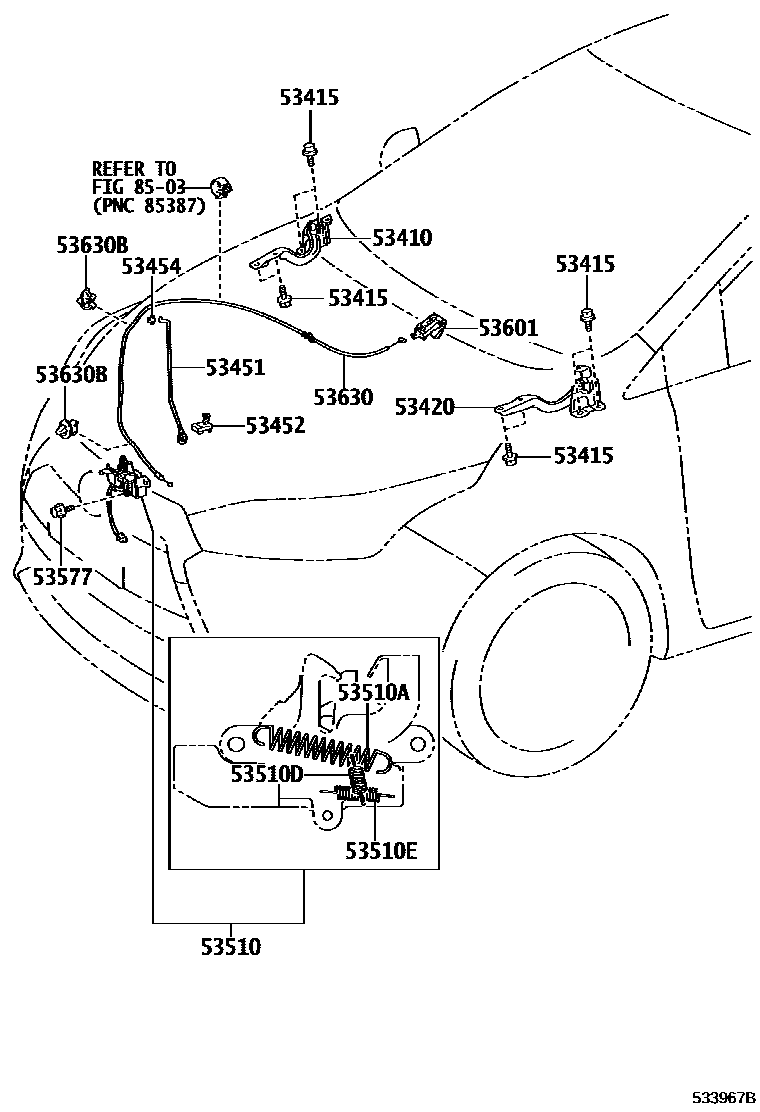

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-0D400iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201709-202302

main53410-0D460iNCP15#,NSP15#..GCC,GEN,PH,TH,VN201310-201708

main53410-0D520iNSP151..F201804-202101

MARK 0

main53410-0D540iNSP151..F201804-202101

MARK -

main53410-0D550iNCP150,NSP151..TAIW201409-201802

MARK 0

main53410-0D560iNCP150,NSP151..TAIW201409-201802

MARK +

main53410-0D570iNCP150,NSP151..TAIW201409-201802

MARK -

main53410-0D580iNCP150,NSP151..C201403-201712

main53410-0D630iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

main53410-0D790iNSP150,151..H201806-201910

MARK 0

main53410-0D800iNSP150,151..H201806-201910

MARK +

main53410-0D810iNSP150,151..H201806-201910

MARK -

53415BOLT, HOOD HINGE

main90105-T0120iNSP152..HTWC;NSP151..CVT..(IDN,MA,VN)..R;NSP150,151..(GCC,IDN,MA)..(D,G,V)201310-202302

main91551-80820iNCP150..TAIW201409-202101

53420HINGE ASSY, HOOD, LH

main53420-0D400iNSP150..RHD;NSP150..5F..PH201709-202302

main53420-0D460iNCP15#..GCC,GEN,PH,VN201310-201708

main53420-0D520iNSP151..F201804-202101

MARK 0

main53420-0D530iNSP151..F201804-202101

MARK +

main53420-0D550iNCP150..TAIW201409-201802

MARK 0

main53420-0D560iNSP151..TAIW201409-201802

MARK +

main53420-0D570iNCP150..TAIW201409-201802

MARK -

main53420-0D580iNCP150..C201403-201712

main53420-0D630iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

main53420-0D790iNSP150,151..H201806-201910

MARK 0

main53420-0D800iNSP150,151..H201806-201910

MARK +

main53420-0D810iNSP150,151..H201806-201910

MARK -

53451ROD, HOOD SUPPORT

main53440-0D140iNCP15#..GCC,GEN,PH,VN201310-201707

sub53440-0D141

main53440-0D160iNCP150..TAIW201409-201802

main53440-0D180iNCP150..C201403-201712

main53440-0D220iNSP151..PH,SA;NSP150..CVT..PH201709-202302

main53440-0D230iNSP151..5F..R..C201802-202108

main53440-0D250iNSP151..F201804-202101

main53440-0D270iNSP150,151..H201806-201910

53452HOLDER, HOOD STAY

main53452-0D090iNSP151..PH,SA;NSP150..CVT..PH201310-202302

main53452-0D110iNSP151..TAIW201409-202101

main53452-0D120iNSP151..C201403-202108

53454CLIP, HOOD SUPPORT ROD

main90480-15025iNSP150,151..H201806-201910

main90480-T0009iNCP15#..GCC,GEN,PH,VN201310-202302

53510LOCK ASSY, HOOD

main53510-0D400iNCP151..VN..G;NCP15#..LHD..GEN201403-201412

sub53510-0D401

main53510-0D401iNSP151..GEN..R;NSP150..LHD..GEN;NSP151..(GEN,VN)..(D,G)201501-201708

main53510-0D410iNCP150..PH;NCP151..(PH,VN)..R201403-201412

sub53510-0D411

main53510-0D411iNCP150..PH;NCP151..(PH,VN)..R201501-201708

main53510-0D411iNSP151..GEN201607-201708

MEXICO SPEC

main53510-0D420iNSP152201310-201412

J PACKAGE

sub53510-0D421

main53510-0D420iNSP152201310-201412

ECO PACKAGE

sub53510-0D421

main53510-0D420iNCP151..RHD..R201403-201412

sub53510-0D421

main53510-0D421iNSP152201501-201708

ECO PACKAGE

main53510-0D421iNCP151..RHD..R201501-201606

main53510-0D421iNSP152201501-201708

J PACKAGE

main53510-0D430iNCP151,NSP152..RHD..(CVT,MTM)201310-201412

sub53510-0D431

main53510-0D431iNCP151..5F..G201501-201708

main53510-0D460iNCP150..TAIW201409-201412

sub53510-0D461

main53510-0D461iNCP150..TAIW201501-201802

main53510-0D530iNSP151..C201403-201712

main53510-0D580iNSP150,151..AGT,BZ201806-201910

main53510-0D590iNSP151..BZ..G201806-201910

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main53510-0D590iNSP151..GEN..H201806-201910

PARAGUAY SPEC

main53510-0D630iNCP15#..GCC201403-201708

main53510-0D730iNSP151..F201804-202101

main53510-0D740iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

main53510-0D770iNSP150..5F..G201709-202302

main53510-0D780iNSP152201709-201910

ECO PACKAGE

main53510-0D780iNSP152201709-201910

J PACKAGE

main53510-0D780iNSP151..SA201710-202108

main53510-0D790iNSP151..VN..G201710-202207

main53510-0D790iNSP151..GEN..A201710-202302

MEXICO SPEC

main53510-0D800iNSP150,151..LHD..GEN..A201710-202302

main53510-0D830iNSP151..B201904-202011

main53510-0D850iNSP150,151..GCC201710-202302

main53510-0DA90iNSP151..VN202109-202302

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-16077iNCP15#..GCC,GEN,PH,VN201310-202302

WD=1.6,CW=12

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-T0004iNCP15#..GCC,GEN,PH,VN201310-202302

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-T0005iNSP151..TAIW201310-202302

WD=0.9,CW=21

53577BOLT, HOOD LOCK

main90119-06939iNCP150..TAIW201409-202101

main90119-T0273iNSP15#..GCC,GEN,PH,TH,VN201310-202302

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-02030-C0iNCP150..V..A201403-201712

BLACK,TRIM2#

main53601-02030-C0iNCP150..TAIW..(G,R)201310-201708

BLACK,TRIM0#,2#

main53601-0D040-A0iNSP150,151..LHD..(GCC,GEN,VN)..A201710-202302

IVORY,TRIM0#

main53601-0D040-C1iNSP150..LHD..(BZ,GCC,GEN);NSP151,152..AGT,BZ,GCC,GEN,MA,TH201709-202302

BLACK,TRIM2#

main53601-0D070-C1iNSP151..5F..R..C201802-202108

BLACK,TRIM2#

main53601-0D080-A0iNSP151..(G,R)..F201804-202101

IVORY,TRIM0#

main53601-0D080-C0iNSP151..F201804-202101

BLACK,TRIM2#

main53601-52010-C0iNSP151..V..A201503-201612

BLACK,TRIM2#

sub53601-52010

main53601-52010-C0iNSP151..V..A201503-201612

BLACK,TRIM0#,2#

sub53601-52010

main53601-52010-C1iNSP151..TAIW201612-201802

BLACK,TRIM0#,2#

sub53601-52010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0D180iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main53630-0D220iNCP150..TAIW201409-201802

main53630-0D230iNSP151..C201403-201712

main53630-0D320iNSP150,151..H201806-201910

main53630-0D340iNSP151..PH,SA;NSP150..CVT..PH201709-202302

main53630-0D350iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

main53630-0D360iNSP151..F201804-202101

main53630-0D380iNSP151..B201904-202011

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iNCP15#..GCC,GEN,PH,VN201310-202101

main90469-06005iNSP152..HTWC;NSP151..CVT..(IDN,VN)..R;NSP150,151..(GCC,IDN)..(G,V)201903-202302

(J)

main90469-T0003iNSP151..PH,SA;NSP150..CVT..PH201903-202302

(L)

8503

15 parts on this diagram · 2 diagrams in section
