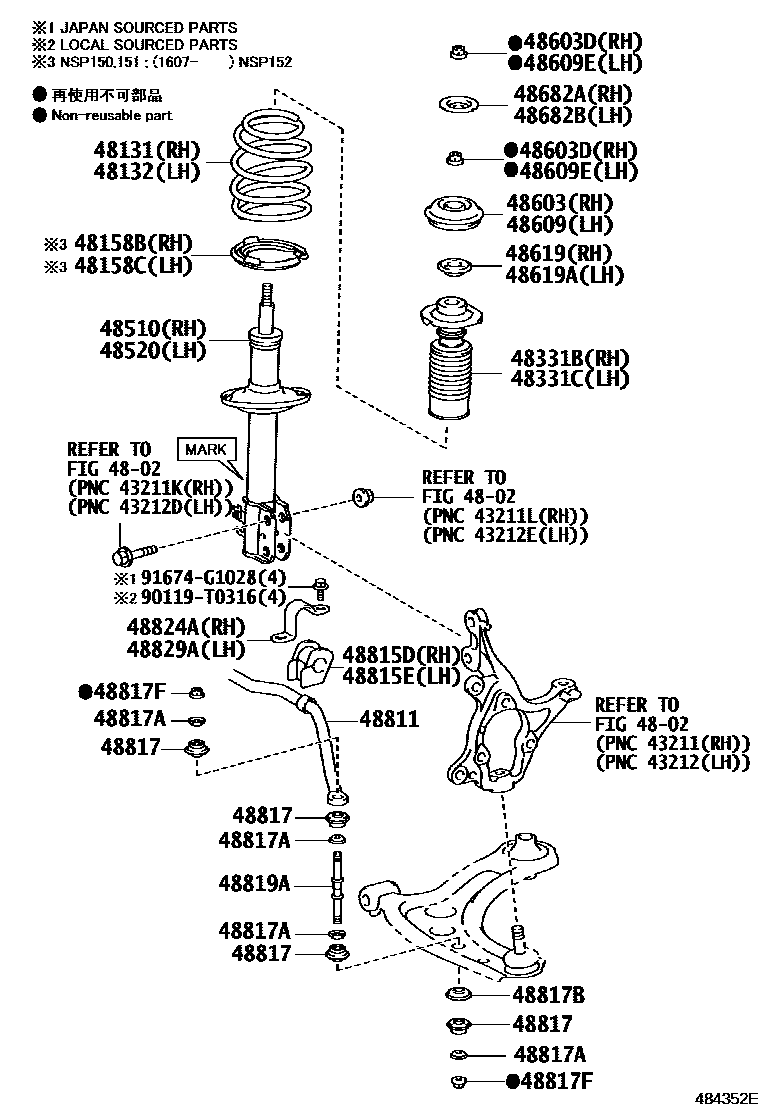

FRONT SPRING & SHOCK ABSORBER

0001 1W/O(FRONT STABILIZER LINK) 0002 1W(FRONT STABILIZER LINK)

4802

48131SPRING, FRONT COIL, RH

main48131-0D570iNSP151..5F..(G,R)..C201403-201712

main48131-0D820iNSP152;NSP150,151..5F..A201310-201708

main48131-0D830iNCP150..(GCC,PH)..G201403-202302

main48131-0D890iNCP150..TAIW..R201409-201604

main48131-0DA00iNSP151..R..F201409-202101

main48131-0DB00iNSP151..CVT..C;NSP151..5F..V..C201403-201712

main48131-0DC90iNSP151..5F..(G,V)..C201802-202108

main48131-0DD00iNSP151..CVT..C201802

main48131-0DE20iNSP151..(GCC,VN)..G;NSP150..LHD..CVT..GEN;NSP151..CVT..(GEN,VN)..R201607-202302

main48131-0DF00iNSP151..CVT..GEN..H201806-201910

URUGUAY SPEC

main48131-0DF10iNSP151..6F..GEN201806-201910

main48131-0DF20iNSP150,151..BZ;NSP151..CVT..GEN..H201806-201910

main48131-0DF50iNSP151..(G,V)..F201804-202101

main48131-0DF60iNSP151..B201904-202011

48132SPRING, FRONT COIL, LH

main48131-0D570iNSP151..5F..(G,R)..C201403-201712

main48131-0D820iNCP151;NCP150..(GCC,GEN)..(D,R)201310-201708

main48131-0D830iNSP151..GCC..R;NSP151..GEN..D..A;NSP150,152..GCC,TH;NSP150,151..5F..GEN..R201403-202302

main48131-0D890iNCP150..TAIW..R201409-201604

main48131-0DA00iNCP150..TAIW..(G,V)201409-202101

main48131-0DB00iNCP150..4FC..(G,V)..C201403-201712

main48131-0DC90iNSP151..5F..(G,V)..C201802-202108

main48131-0DD00iNSP151..CVT..C201802

main48131-0DE20iNSP150..CVT..GEN..G201607-202302

main48131-0DF00iNSP151..CVT..GEN..H201806-201910

URUGUAY SPEC

main48131-0DF10iNSP151..6F..GEN201806-201910

main48131-0DF20iNSP150,151..BZ;NSP151..CVT..GEN..H201806-201910

main48131-0DF50iNSP151..(G,V)..F201804-202101

main48131-0DF60iNSP151..B201904-202011

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-0D080iNSP152201605-202302

main48158-0D090iNSP151..(G,V)..C;NSP151..CVT..R..C201610-202108

main48158-0D110iNSP150,151..H201806-201910

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-0D080iNSP150,151..GCC,GEN,PH,VN201605-202302

main48158-0D090iNSP151..C201610-202108

main48158-0D110iNSP150,151..H201806-201910

48331BBUMPER, FRONT SPRING, RH

main48304-0D150iNSP15#..GCC,GEN,PH,TH,VN201310-201802

main48304-0D170iNSP151..C201403-201712

main48304-0D240iNSP151..F201709-202302

main48304-0D250iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

main48304-0D270iNSP150,151..H201806-201910

48331CBUMPER, FRONT SPRING, LH

main48304-0D150iNCP150..TAIW201310-201802

main48304-0D170iNCP150..C201403-201712

main48304-0D240iNSP151..PH,SA;NSP150..CVT..PH201709-202302

main48304-0D250iNSP151..5F..R..C201802-202108

main48304-0D270iNSP150,151..H201806-201910

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-0D470iNSP152201607-201708

MARK 48510-0D470

main48510-0D470iNSP152201607-201708

MARK 48510-0D470,J PACKAGE

main48510-0D470iNSP152201607-201708

MARK 48510-0D470,ECO PACKAGE

main48510-0D530iNCP150..TAIW..(G,R)201409-201604

MARK 48510-0D530

sub48510-0D531

main48510-0D540iNCP150..V..A201409-201604

MARK 48510-0D540

sub48510-0D541

main48510-0D591iNCP15#..GCC,GEN,PH,VN201403-201507

MARK 48510-0D591

sub48510-0D592

main48510-0D592iNCP15#..GCC,GEN,PH,VN201508-201606

MARK 48510-0D592

main48510-0D611iNSP152201310-201507

MARK 48510-0D611

sub48510-0D612

main48510-0D612iNSP152201508-201607

MARK 48510-0D612

main48510-0D720iNSP152201607-201708

MARK 48510-0D720

main48510-0D730iNCP150..IDN..(G,V)201403-201609

MARK 48510-0D730

main48510-0D740iNCP150..4FC..IDN..G201403-201609

MARK 48510-0D740

main48510-0D740iNCP150..4FC..IDN..G201403-201609

MARK 48510-0D740,BRUNEI SPEC

main48510-0D780iNCP150..MA201403-201609

MARK 48510-0D780

main48510-0DC30iNSP151..TAIW201605-201802

MARK 48510-0DC30

sub48510-0DC31

main48510-0DC40iNSP151..C201610-201712

MARK 48510-0DC40

main48510-0DD40iNSP151..F201804-202101

MARK 48510-0DD40

main48510-0DD60iNSP151..B201904-202011

MARK 48510-0DD60

main48510-0DD80iNSP151..5F..R..C201802-202108

MARK 48510-0DD80

main48510-0DE30iNSP150,151..CVT..H201806-201910

MARK 48510-0DE30

main48510-0DF10iNSP150,151..6F201806-201910

MARK 48510-0DF10

main48510-0DF60iNSP150..RHD;NSP150..5F..PH201709-202302

MARK 48510-0DF60

main48510-0DJ00iNSP152..HTWC201903-202302

MARK 48510-0DJ00

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-0D470iNSP150,151..GCC,GEN,PH,VN201607-201708

MARK 48510-0D470,ECO PACKAGE

main48510-0D470iNSP150,151..GCC,GEN,PH,VN201607-201708

MARK 48510-0D470

main48510-0D470iNSP150,151..GCC,GEN,PH,VN201607-201708

MARK 48510-0D470,J PACKAGE

main48510-0D530iNCP150..TAIW..(G,R)201409-201604

MARK 48510-0D530

sub48510-0D531

main48510-0D540iNCP150..V..A201409-201604

MARK 48510-0D540

sub48510-0D541

main48510-0D591iNCP15#..GCC,GEN,PH,VN201403-201507

MARK 48510-0D591

sub48510-0D592

main48510-0D592iNCP15#..GCC,GEN,PH,VN201508-201606

MARK 48510-0D592

main48510-0D611iNSP152201310-201507

MARK 48510-0D611

sub48510-0D612

main48510-0D612iNSP152201508-201607

MARK 48510-0D612

main48510-0D720iNSP152201607-201708

MARK 48510-0D720

main48510-0D730iNCP150..IDN..(G,V)201403-201609

MARK 48510-0D730

main48510-0D740iNCP150..R..C201403-201609

MARK 48510-0D740,BRUNEI SPEC

main48510-0D740iNCP150..R..C201403-201609

MARK 48510-0D740

main48510-0D780iNCP150..MA201403-201609

MARK 48510-0D780

main48510-0DC30iNSP151..TAIW201605-201802

MARK 48510-0DC30

sub48510-0DC31

main48510-0DC40iNSP151..C201610-201712

MARK 48510-0DC40

main48510-0DD40iNSP151..F201804-202101

MARK 48510-0DD40

main48510-0DD60iNSP151..B201904-202011

MARK 48510-0DD60

main48510-0DD80iNSP151..5F..R..C201802-202108

MARK 48510-0DD80

main48510-0DE30iNSP150,151..CVT..H201806-201910

MARK 48510-0DE30

main48510-0DF60iNSP151..PH,SA;NSP150..CVT..PH201709-202302

MARK 48510-0DF60

main48510-0DJ00iNSP152..HTWCB;NSP150,151..LHD..(GCC,GEN)..R;NSP150,151..CVT..(GEN,VN)..(D,G)..A201903-202302

MARK 48510-0DJ00

main48520-0D460iNSP150,151..6F201806-201910

MARK 48520-0D460

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0D140iNSP151..F201409-202101

main48609-0D150iNCP15#,NSP152..GCC,GEN,PH,TH,VN201310-202302

main48609-0D180iNSP151..C201403-202108

main48609-0D230iNSP150,151..H201806-201910

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90178-T0064iNSP151..5F..R..C201310-202108

(L)

main90178-T0064iNSP151..PH,SA;NSP150..CVT..PH201607-202302

main90179-12145iNSP151..F201310-202108

(J)

main90179-12145iNCP150..TAIW201501-201802

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0D140iNSP151..TAIW201409-202101

main48609-0D150iNSP150..RHD;NSP150..5F..PH201310-202302

main48609-0D180iNSP151..5F..R..C201403-202108

main48609-0D230iNSP150,151..H201806-201910

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90178-T0064iNSP15#..GCC,GEN,PH,TH,VN201607-202302

main90178-T0064iNCP150..TAIW201310-202108

(L)

main90179-12145iNCP150..TAIW201501-201802

main90179-12145iNSP151..(G,V)..C;NSP151..CVT..R..C201310-202108

(J)

48619BEARING, STRUT MOUNTING, RH

main48619-52030iNSP150..RHD;NSP150,151..5F..(IDN,PH)..R201310-202302

48619ABEARING, STRUT MOUNTING, LH

main48619-52030iNCP150..TAIW201310-202302

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-0D090iNCP150..C201403-201609

main48682-0D110iNCP150..TAIW201310-201607

main48682-0D190iNSP150,151..H201806-201910

main48682-0D200iNSP151..F201605-202302

main48682-0D210iNSP151..5F..R..C201610-202108

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-0D090iNCP150..C201403-201609

main48682-0D110iNCP150..TAIW201310-201607

main48682-0D190iNSP150,151..H201806-201910

main48682-0D200iNSP151..TAIW201605-202302

main48682-0D210iNSP151..C201610-202108

48811BAR, STABILIZER, FRONT

main48811-0D190iNCP15#,NSP152..GCC,GEN,PH,TH,VN201310-201602

ECO PACKAGE

sub48811-0D191

main48811-0D191iNSP150..RHD;NSP150..5F..PH201603-202302

main48811-0D191iNSP15#..GCC,GEN,PH,TH,VN201603-201708

ECO PACKAGE

main48811-0D200iNCP150..TAIW201409-201604

main48811-0D201iNSP151..TAIW201605-202101

main48811-0D220iNCP150..C201403-201609

main48811-0D221iNSP151..5F..R..C201610-202108

main48811-0D250iNSP150,151..CVT..H201806-201910

main48811-0D270iNSP150,151..6F201806-201910

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-0D190iNCP15#..GCC,GEN,PH,VN201310-202302

main48815-0D190iNSP15#..GCC,GEN,PH,TH,VN201310-201708

ECO PACKAGE

main48815-0D210iNSP151..C201403-202002

sub48815-0D211

main48815-0D211iNSP151..5F..R..C202003-202108

main48815-0D240iNSP150,151..CVT..H201806-201910

main48815-0D260iNSP150,151..6F201806-201910

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-0D190iNSP15#..GCC,GEN,PH,TH,VN201310-201708

ECO PACKAGE

main48815-0D190iNCP150..TAIW201310-202302

main48815-0D210iNSP151..C201403-202002

sub48815-0D211

main48815-0D211iNSP151..5F..R..C202003-202108

main48815-0D240iNSP150,151..CVT..H201806-201910

main48815-0D260iNSP150,151..6F201806-201910

48817CUSHION, FRONT STABILIZER

main48817-52010iNSP15#201310-201701

ECO PACKAGE

sub48817-52011

main48817-52010iNCP150..TAIW201310-201609

sub48817-52011

main48817-52011iNSP15#..GCC,GEN,PH,TH,VN201702-201708

ECO PACKAGE

main48817-52011iNSP151..C201702-202302

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02179iNSP151..TAIW201310-202302

main90948-02179iNSP15#..GCC,GEN,PH,TH,VN201310-201708

ECO PACKAGE

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02178iNCP150..TAIW201310-202302

main90948-02178iNSP15#..GCC,GEN,PH,TH,VN201310-201708

ECO PACKAGE

48817FNUT(FOR FRONT STABILIZER BAR)

main90177-T0007iNSP150..RHD;NSP150,151..5F..(IDN,PH)..R201709-202302

(L)

main94182-10800iNSP151..C201310-201802

main94182-10800iNSP152201310-201708

ECO PACKAGE

main94182-10800iNSP151..F201709-202302

(J)

48819ABOLT, FRONT STABILIZER

main48819-70010iNSP152201310-201403

ECO PACKAGE

main48819-70010iNCP15#..A201310-201404

main48821-52040iNCP150..TAIW201403-202302

main48821-52040iNSP152201404-201708

ECO PACKAGE

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-0D030iNCP15#..GCC,GEN,PH,VN201310-202302

main48824-0D030iNSP15#..GCC,GEN,PH,TH,VN201310-201708

ECO PACKAGE

main48824-0D040iNSP151..TAIW201409-202101

main48824-0D110iNSP150,151..H201806-201910

main48824-0D140iNSP151..5F..R..C201403-202108

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-0D030iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201310-202302

main48824-0D030iNSP15#..GCC,GEN,PH,TH,VN201310-201708

ECO PACKAGE

main48824-0D040iNCP150..TAIW201409-202101

main48824-0D110iNSP150,151..H201806-201910

main48824-0D140iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

90119T0316

main90119-T0316

91674G1028

main91674-G1028

29 parts on this diagram · 2 diagrams in section
