REAR DISC BRAKE CALIPER & DUST COVER

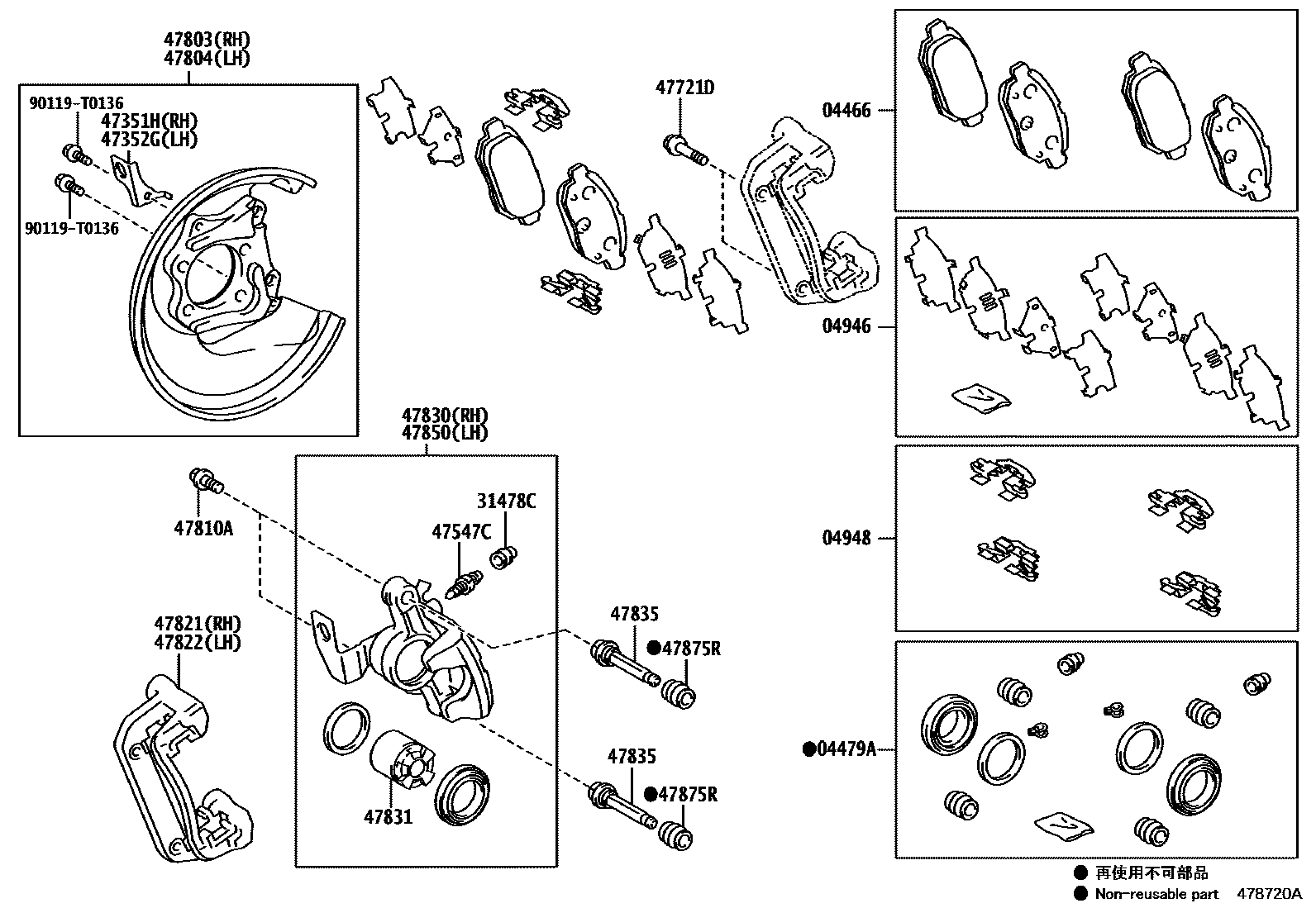

Parts diagram

04466PAD KIT, DISC BRAKE, REAR

main04466-52170i201403-202302

MARK NBK D6247

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-52250i201403-202302

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-52080i201403-202302

04948FITTING KIT, DISC BRAKE, REAR

main04948-12060i201403-202302

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010i201403-202302

47351HBRACKET, FLEXIBLE HOSE, RH

main47351-0D160i201403-202302

main47351-0D210i201403-201712

main47351-0D210i201802

BRUNEI SPEC

47352GBRACKET, FLEXIBLE HOSE, LH

main47352-0D130i201403-202302

main47352-0D180i201403-201712

main47352-0D180i201802

BRUNEI SPEC

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050i201403-202302

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-10404i201409-202101

*10-1.25PX24-21.5

main90105-T0180i201403-202302

*10-1.25PX24-21.5

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-0D040i201403-202302

main47803-0D050i201802

BRUNEI SPEC

main47803-0D050i201403-201712

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-0D040i201403-202302

main47804-0D050i201403-201712

main47804-0D050i201802

BRUNEI SPEC

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90015-AA102i201403-202302

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-12151i201403-202302

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12151i201403-202302

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-52200i201403-202302

47831PISTON, REAR DISC BRAKE

main47831-52090i201403-202302

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-12150i201403-202302

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-52200i201403-202302

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150i201403-202302

90119T0136

main90119-T0136

20 parts on this diagram · 1 diagram in section
