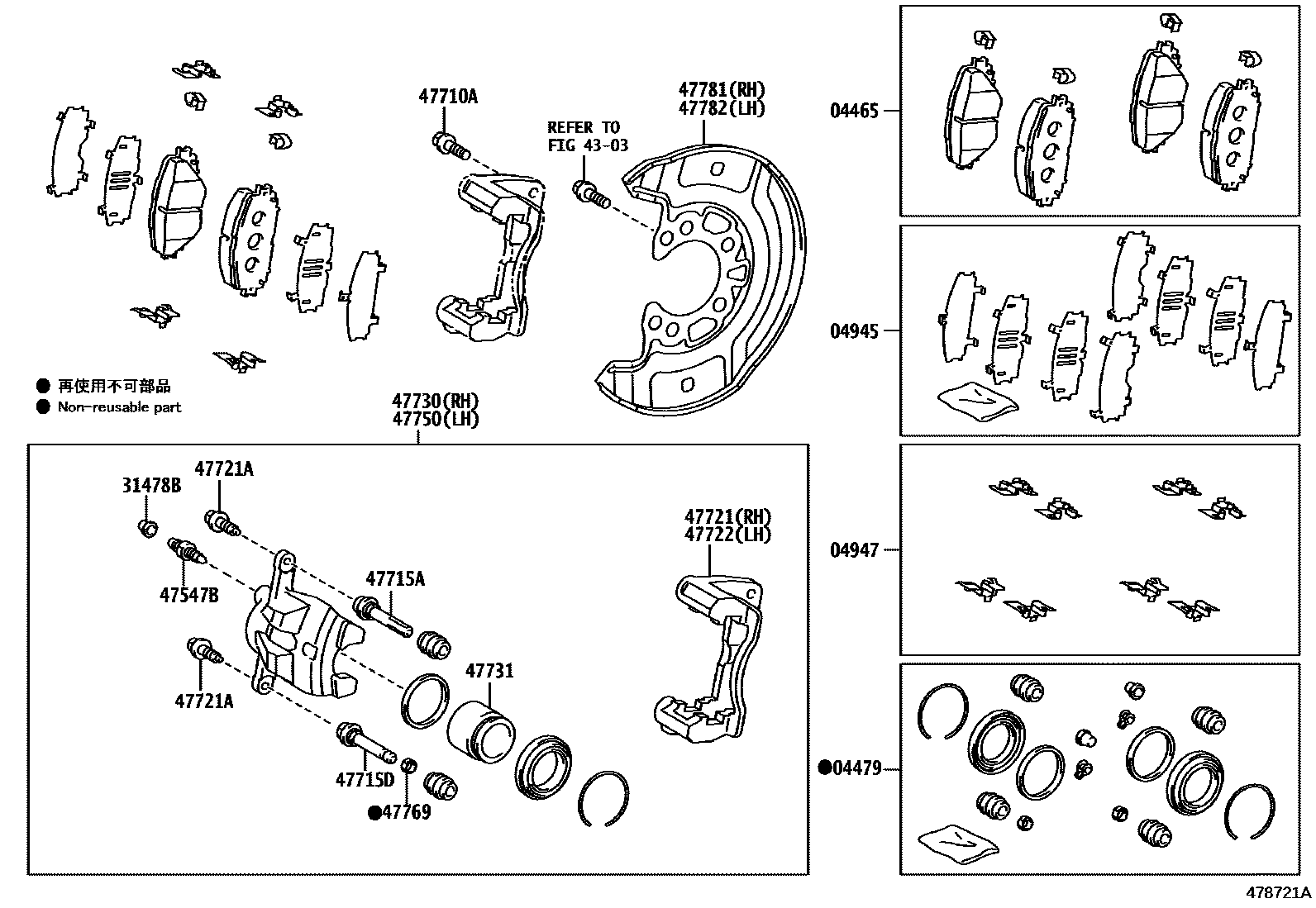

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1PNC 04465=MARK PV565H 0002 1PNC 04465=MARK PC553H,PA563H 0003 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-0D101iNSP150,151..H201806-201910

MARK AK PA563H

main04465-0D130iNSP151..CVT..R..C¥8,600201403-202302

MARK ADVICS PV565H

main04465-0D150iNSP150..LHD..GEN..R;NSP151,152..(GEN,MA,TH)..(D,R)..(A,B)¥8,000201310-202302

MARK AK PA563H

main04465-0D160iNCP15#,NSP150,151..GCC201403-202302

MARK ADVICS PC553H

main04465-0D170iNCP150,NSP151..TAIW..(G,R)201409-202101

MARK AK PA563H

main04465-0D220iNSP151..CVT..R..C201802-202110

MARK AK PA563H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0D170iNSP150,151..H201806-201910

main04478-0D180iNSP151..V..C;NSP151..PH,VN;NSP150..GEN..G201403-201803

sub04478-0D181

main04478-0D181iNSP150,151..CVT..(GEN,VN)..G..A201804-202302

main04478-0D181iNSP151..V..C;NSP151..VN..R;NSP151..(G,V)..B201804

BRUNEI SPEC

main04478-0D190iNSP150..R;NSP150..GCC..G;NSP151,152..GCC,GEN,SA,TH201310-201803

sub04478-0D191

main04478-0D191iNSP150..RHD..R;NSP150..5F..PH201804-202302

sub04478-0D192

main04478-0D200iNSP151..(G,R)..F201409-202101

main04478-0D250iNSP151..5F..R..C201802-202311

sub04478-0D251

main04478-0D251iNSP151..G..C202311

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0D070iNSP151..CVT..R..C201403-202302

main04945-0D080iNSP150..LHD..GEN..R;NSP151,152..(GEN,MA,TH)..(D,R)..(A,B)201310-202302

main04945-0D090iNSP150,151..GCC201403-202302

main04945-0D100iNSP151..(G,R)..F201409-202101

main04945-0D140iNSP151..CVT..R..C201802-202110

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0D030iNSP151..PH201403-202302

main04947-0D040iNSP150,151..GCC..G;NSP150..LHD..(GCC,GEN)..R;NSP151,152..(GCC,GEN,MA,TH)..(D,R)..(A,B)201310-202302

main04947-0D050iNSP151..5F..R..C201409-202110

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0D030iNSP150,151..H201806-201910

main31478-0D040iNSP151..V..F201310-202302

main31478-30010iNCP150,NSP151..TAIW..(G,R)¥160201409-202101

main90016-AJ101iNSP151..CVT..R..C201802-202110

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-0D030iNSP151..CVT..R..C201310-202302

main47547-20010iNSP151..CVT..G..C¥200202209

BRUNEI SPEC

main47547-20010iNCP150,NSP151..TAIW..(G,R)¥200201409-202101

main90016-AJ002iNSP151..CVT..R..C201802-202110

main90069-39000iNSP150,151..H¥310201806-201910

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iNSP150,151..F,H¥160201409-202101

*12-1.25PX29.5-23

main90105-12208iNSP151..(G,V)..C;NSP151..CVT..R..C¥160201802-202108

*12-1.25PX29.5-23,(J)

main90105-T0186iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

*12-1.25PX29.5-23,(L)

main90105-T0186iNCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TH,VN201310-202302

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-0D220iNCP151,NSP150..GCC..G;NCP151,NSP150..(GCC,GEN,PH)..(D,R);NCP150,NSP151,152..(GCC,GEN,IDN,TH)..(D,G,R)201310-201708

sub47714-0D230

main47714-0D230iNSP151..SA;NSP150..CVT..PH201708-202302

main47714-0D240iNCP150,NSP151..TAIW..(G,R)201409-202101

main47714-0D310iNSP151..G..C201802-202110

main47714-0K220iNSP151..PH201708-202302

main47715-52190iNCP151..VN;NSP151..PH,VN;NCP150,NSP151..V;NCP15#,NSP150..(GEN,MA,PH)..G¥360201403-201708

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47714-48150iNSP151..5F..R..C¥230201802-202110

main47715-06250iNCP150,NSP151..TAIW..(G,R)201409-202101

main47715-0K220iNSP151..C;NSP151..TAIW..V201708-202302

main47715-33340iNCP150,NSP151..V..A;NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TH,VN¥490201310-201708

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-09530iNSP150,151..H201806-201910

main47721-0D220iNCP151,NSP150..GCC..G;NCP151,NSP150..(GCC,GEN,PH)..(D,R);NCP150,NSP151,152..(GCC,GEN,IDN,TH)..(D,G,R)201310-202302

main47721-0D240iNCP150,NSP151..TAIW..(G,R)201409-202101

main47721-0D250iNCP151..VN;NSP151..PH,VN;NCP150,NSP151..(IDN,TAIW)..V;NCP15#,NSP150..(GEN,MA,PH)..G201403-202302

main47721-0D310iNSP151..CVT..R..C201802-202110

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA603iNSP150..RHD;NSP150..5F..PH¥80201310-202302

*8-1.00PX23-15

main90016-AA610iNSP151..CVT..R..C201802-202110

main90080-10247iNCP150,NSP151..TAIW..(G,R)201409-202101

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-09230iNSP150,151..H201806-201910

main47722-0D210iNCP151,NSP150..GCC..G;NCP151,NSP150..(GCC,GEN,PH)..(D,R);NCP150,NSP151,152..(GCC,GEN,IDN,TH)..(D,G,R)201310-202302

main47722-0D230iNSP151..(G,R)..F201409-202101

main47722-0D240iNSP151..PH201403-202302

main47722-0D300iNSP151..G..C201802-202110

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0D170iNSP150,151..H201806-201910

main47730-0D220iNSP150..RHD..R;NSP150..5F..PH201310-202302

main47730-0D240iNCP150,NSP151..TAIW..(G,R)201409-202101

main47730-0D250iNSP150,151..CVT..(GEN,VN)..G..A201403-202302

main47730-0D310iNSP151..5F..R..C201802-202110

47731PISTON, FRONT DISC BRAKE

main47731-0D110iNCP151..VN;NSP151..PH,VN;NCP150,NSP151..(IDN,TAIW)..V;NCP15#,NSP150..(GEN,MA,PH)..G201403-202302

main47731-0D210iNSP151..(G,R)..F201409-202101

main47731-0D220iNSP150,151..GCC..G;NSP150..LHD..(GCC,GEN)..R;NSP151,152..(GCC,GEN,MA,TH)..(D,R)..(A,B)201310-202302

main47731-0D310iNSP151..CVT..R..C201802-202110

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0D170iNSP150,151..H201806-201910

main47750-0D210iNSP150..RHD..R;NSP150..5F..PH201310-202302

main47750-0D230iNSP151..(G,R)..F201409-202101

main47750-0D240iNSP150,151..CVT..(GEN,VN)..G..A201403-202302

main47750-0D300iNSP151..5F..R..C201802-202110

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-06040iNCP150,NSP151..V..A;NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TH,VN201310-201708

sub47769-0K220

main47769-0K220iNSP151..V..F201708-202302

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0D150iNSP150..RHD;NSP150..5F..PH201310-202302

main47781-0D160iNSP151..F201409-202101

main47781-0D180iNSP151..5F..R..C201403-202108

main47781-0D210iNSP150,151..H201806-201910

47782COVER, DISC BRAKE DUST, FRONT LH

main47781-0D150iNCP15#..GCC,GEN,PH,VN201310-202302

main47781-0D160iNSP151..F201409-202101

main47781-0D180iNCP150..C201403-202108

main47781-0D210iNSP150,151..H201806-201910

19 parts on this diagram · 3 diagrams in section
