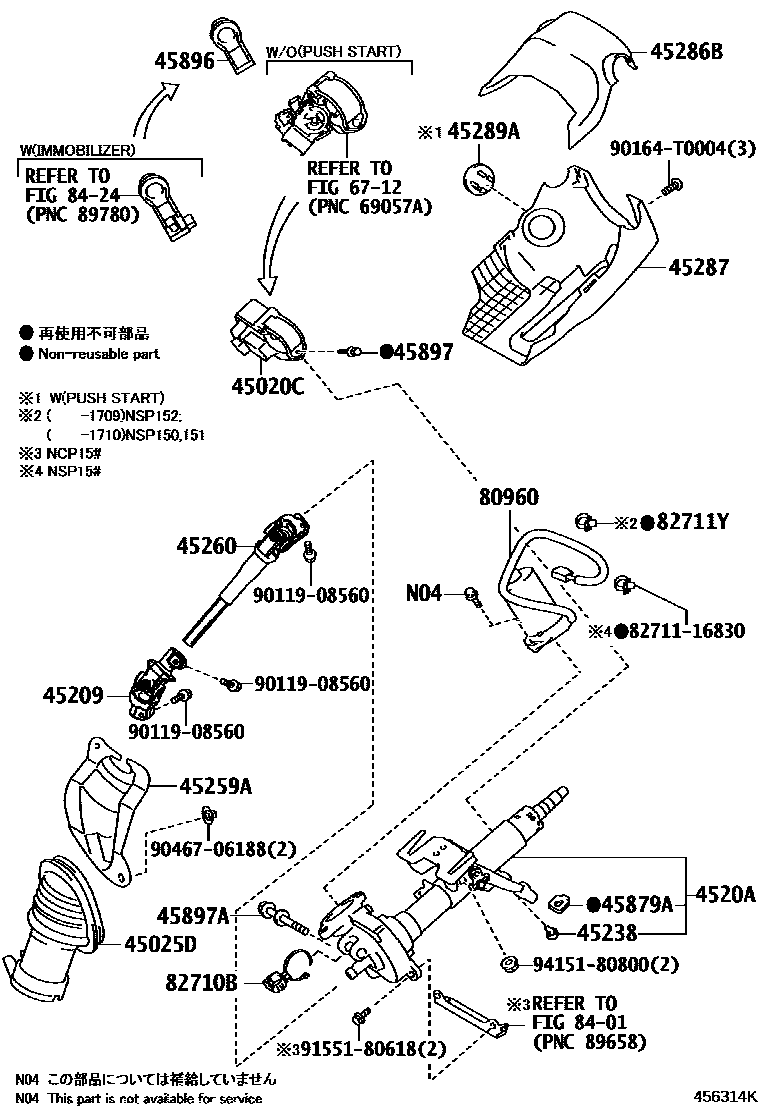

STEERING COLUMN & SHAFT

0001 1 0002 1 0005 1 0007 1 0008 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0K190iNSP151..B;NSP150,151..CVT..(GEN,VN)..G..A201710-202302

main45020-0K210iNSP151..V..C201802

BRUNEI SPEC

main45020-30B20iNSP151..(AGT,TAIW)..V;NSP151..(BZ,GEN)..(G,V)201804-202101

G-HI PACKAGE, WITH(*CUSA)

main45020-30B20iNCP150,NSP151..V..C;NCP15#,NSP150,151..(GEN,MA,VN)..G201403-201712

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0D180iNCP150..TAIW201409-201802

sub45025-0D181

main45025-0D190iNSP151..C201310-201712

main45025-0D230iNSP150,151..H201806-201910

main45025-0D241iNSP151..F201709-202302

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-0D050iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main45209-0D080iNSP151..PH,SA;NSP150..CVT..PH201310-202302

main45209-0D090iNSP151..B201904-202011

main45209-0D100iNSP151..TAIW201409-202101

main45209-0D130iNSP150,151..H201806-201910

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-0D090iNSP150,152..RHD..R201607-201708

sub4520A-0D091

main4520A-0D100iNCP151,NSP152..RHD..R201310-201607

main4520A-0D110iNCP151..5F..G201403-201606

main4520A-0D120iNCP151..GCC..G;NCP151..LHD..(D,R);NCP150..GCC,GEN,PH201403-201606

main4520A-0D130iNCP15#..GCC..G201403-201606

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

main4520A-0D180iNCP150..IDN..(G,R)201403-201609

main4520A-0D190iNCP150..MA;NCP150..V..C201403-201609

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

main4520A-0D230iNCP150..TAIW201409-201604

main4520A-0D260iNSP150..5F..G201607-201708

G PACKAGE

sub4520A-0D261

main4520A-0D270iNSP151..VN..R;NSP150..GCC..G;NSP151..GCC,GEN,PH;NSP150..LHD..(D,R)201607-201708

main4520A-0D280iNSP150,151..CVT..(GEN,VN)..G201607-201708

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

main4520A-0D300iNSP151..(G,R)..C201610-201712

main4520A-0D310iNSP151..CVT..G..C201610-201712

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

main4520A-0D340iNSP151..TAIW201605-201802

main4520A-0D370iNSP150,152..RHD..R201709-202008

sub4520A-0D371

main4520A-0D371iNSP150..RHD..R202009-202302

main4520A-0D380iNSP151..SA;NSP150..5F..G201710-202008

sub4520A-0D381

main4520A-0D381iNSP150..5F..G202009-202207

main4520A-0D390iNSP151..VN..R;NSP150..GCC..G;NSP150..LHD..R..A;NSP151..(GCC,GEN)..A201710-202008

sub4520A-0D391

main4520A-0D391iNSP150..CVT..PH202009-202302

main4520A-0D400iNSP150,151..CVT..(GEN,PH,VN)..G..A201710-202008

G-HI PACKAGE, WITH(CRUISE CONTROL)

sub4520A-0D401

main4520A-0D401iNSP150,151..CVT..(GEN,VN)..G202009-202302

main4520A-0D410iNSP151..(G,R)..C201802-202008

sub4520A-0D411

main4520A-0D411iNSP151..5F..R..C202009-202108

main4520A-0D420iNSP151..CVT..G..C201802-202008

BRUNEI SPEC

sub4520A-0D421

main4520A-0D421iNSP151..V..C202009

BRUNEI SPEC

main4520A-0D450iNSP151..B201904-202011

sub4520A-0D451

main4520A-0D460iNSP151..(G,R)..F201804-202101

sub4520A-0D461

main4520A-0D470iNSP151..V..F201804-202101

G-HI PACKAGE, WITH(*CUSA)

sub4520A-0D471

main4520A-0D500iNSP151..AGT..G;NSP150,151..(D,R)..H201806-201910

main4520A-0D510iNSP151..AGT..V;NSP151..(BZ,GEN)..(G,V)201806-201910

XL-PLUS PACKAGE

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iNSP151..PH,SA;NSP150..CVT..PH201310-202302

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-0D150iNCP15#..LHD..(GCC,GEN,PH,VN)201403-201708

main45259-0D160iNCP150..C201310-201712

main45259-0D170iNCP150..TAIW201409-201802

main45259-0D240iNSP150,151..H201806-201910

main45259-0D250iNSP151..SA201709-202302

main45259-0D260iNSP150,151..LHD..(GCC,GEN,VN)..A201710-202302

main45259-0D270iNSP151..F201804-202101

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-0D150iNSP151..C201403-202009

main45260-0D151iNSP151..5F..R..C202009-202108

main45260-0D210iNSP15#..RHD..A201310-202009

main45260-0D211iNSP152202009-202302

main45260-0D220iNSP150,151..LHD..(GCC,GEN,PH,VN)..A201403-202009

main45260-0D221iNSP150,151..LHD..(GCC,GEN,VN)202009-202302

main45260-0D250iNSP151..B201904-202011

main45260-0D260iNSP151..F201409-202101

main45260-0D270iNSP150,151..H201806-201910

45286BCOVER, STEERING COLUMN, UPR

main45286-0D170-C0iNSP151..C201403-201712

BLACK,TRIM2#

main45286-0D170-C0iNCP15#..(IDN,MA,PH)..(G,R)201310-201708

BLACK,TRIM0#,2#

main45286-0D180-C0iNSP151..TAIW..V201409-201802

BLACK,TRIM2#

main45286-0D180-C0iNCP150..TAIW..(G,R)201409-201802

BLACK,TRIM0#,2#

main45286-0D310-C0iNSP150,151..H201806-201905

BLACK,TRIM2#

main45286-0D311-C0iNSP150,151..H201905-201910

BLACK,TRIM2#

main45286-0D320-C0iNSP150..5F..PH201709-202302

BLACK,TRIM2#

main45286-0D320-C0iNSP150..RHD201710-202302

BLACK,TRIM0#,2#

main45286-0D320-C0iNSP151..VN201710-202302

BLACK,TRIM0#

main45286-0D330-C0iNSP151..(G,R)..F201804-202101

BLACK,TRIM2#

main45286-0D330-C0iNSP151..(G,R)..F201804-202101

BLACK,TRIM0#,2#

main45286-0D340-C0iNSP151..5F..R..C201802-202108

BLACK,TRIM2#

45287COVER, STEERING COLUMN, LWR

main45024-0D030-C0iNSP151..C201601-201712

BLACK,TRIM2#

main45024-0D030-C0iNSP150,151..GCC,GEN,VN201601-201708

BLACK,TRIM0#,2#

main45024-0D040-C0iNSP151..TAIW..(G,R)201601-201802

BLACK,TRIM2#

main45024-0D040-C0iNCP150..TAIW..(G,R)201601-201802

BLACK,TRIM0#,2#

main45287-0D140-C0iNCP15#..PH201403-201609

BLACK,TRIM2#

main45287-0D140-C0iNCP15#..GCC,GEN,VN201310-201606

BLACK,TRIM0#,2#

main45287-0D150-C0iNCP150..TAIW201409-201604

BLACK,TRIM0#,2#

main45287-0D150-C0iNCP150..TAIW..(G,R)201409-201601

BLACK,TRIM2#

main45287-0D280-C0iNSP150,151..H201806-201905

BLACK,TRIM2#

main45287-0D281-C0iNSP150,151..H201905-201910

BLACK,TRIM2#

main45287-0D290-C0iNSP151..PH,SA;NSP150..CVT..PH201709-202302

BLACK,TRIM2#

main45287-0D290-C0iNSP150..RHD201710-202302

BLACK,TRIM0#,2#

main45287-0D290-C0iNSP151..VN201710-202302

BLACK,TRIM0#

main45287-0D300-C0iNSP151..(G,R)..F201804-202101

BLACK,TRIM2#

main45287-0D300-C0iNSP151..V..F201804-202101

BLACK,TRIM0#,2#

main45287-0D310-C0iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

BLACK,TRIM2#

45289ASUPPORT, STEERING COLUMN COVER

main45289-0D020-C0iNSP150,151..(GEN,VN)..G201403-202302

BLACK,TRIM0#,2#

sub45289-0D020

main45289-0D020-C0iNCP150..MA201403-201708

WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM0#,2#

sub45289-0D020

main45289-0D020-C0iNCP150..V..C201403-202207

BLACK,TRIM2#

sub45289-0D020

main45289-0D020-C0iNCP150..MA201603-201609

WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM2#

sub45289-0D020

main45289-0D020-C0iNSP150..CVT..GEN..G201710-202302

BLACK,TRIM0#

sub45289-0D020

main45289-0D080-C0iNSP151..G..F201804-202101

G-HI PACKAGE, WITH(*CUSA),BLACK,TRIM0#,2#

main45289-0D080-C0iNSP151..G..F201804-202101

BLACK,TRIM2#

main45289-0D120-C0iNSP151..AGT..V;NSP151..(BZ,GEN)..(G,V)201806-201910

XL-PLUS PACKAGE,BLACK,TRIM2#

main45289-0D120-C0iNSP150..R..H201806-201910

BLACK,TRIM2#

main45289-0D130-C0iNSP151..CVT..G..C201802

BRUNEI SPEC,BLACK,TRIM2#

main45289-0D130-C0iNSP151..CVT..G..C201802

BLACK,TRIM2#

45879ACAPSULE, BREAK AWAY

main45879-0D030iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,TH,VN)..A201310-202302

main45879-0D040iNSP151..B201904-202011

main45879-0D060iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main45879-0D070iNSP151..F201409-202101

main45879-52010iNSP150,151..H201806-201910

45896PLATE, IGNITION SWITCH ATTACHMENT

main81871-0D020iNSP150,151..CVT..(PH,VN)..R201403-202207

45897BOLT, STEERING LOCK SET

main45897-12020iNSP151..PH,SA;NSP150..CVT..PH201310-202302

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iNCP150..TAIW201310-202302

6712

80960MOTOR ASSY, POWER STEERING

main80960-0D100iNCP151,NSP152..RHD201310-201607

main80960-0D110iNCP15#..LHD..(GCC,GEN,PH,VN)201403-201606

main80960-0D150iNCP150..C201403-201609

main80960-0D170iNCP150..TAIW201409-201604

main80960-0D240iNSP150,152..RHD201607-201708

main80960-0D250iNSP151..C201610-201712

main80960-0D270iNSP151..TAIW201605-201802

main80960-0D280iNSP150,151..LHD..(GCC,GEN,PH,VN)201607-201708

main80960-0D300iNSP150,151..H201806-201910

main80960-0D320iNSP151..PH,SA;NSP150..CVT..PH201709-202302

main80960-0D340iNSP151..5F..R..C201802-202108

main80960-0D360iNSP151..B201904-202011

main80960-0D370iNSP151..F201804-202101

82710BCLAMP ASSY, WIRING HARNESS

main82710-0D010iNSP152201403-201708

main82710-0D040iNSP151..C201610-201712

main82710-0D050iNCP150..TAIW201409-201604

82711YCLAMP, WIRING HARNESS

main82710-0D070iNSP15#..GCC,GEN,PH,TH,VN201607-201708

main82710-0D080iNSP151..C201610-201712

main82710-0D090iNSP151..TAIW201605-201802

main82711-1E370iNSP152201310-201609

8401

8424

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

9011908560

main90119-08560

90164T0004

main90164-T0004

9046706188

main90467-06188

9155180618

main91551-80618

9415180800

main94151-80800

26 parts on this diagram · 5 diagrams in section
