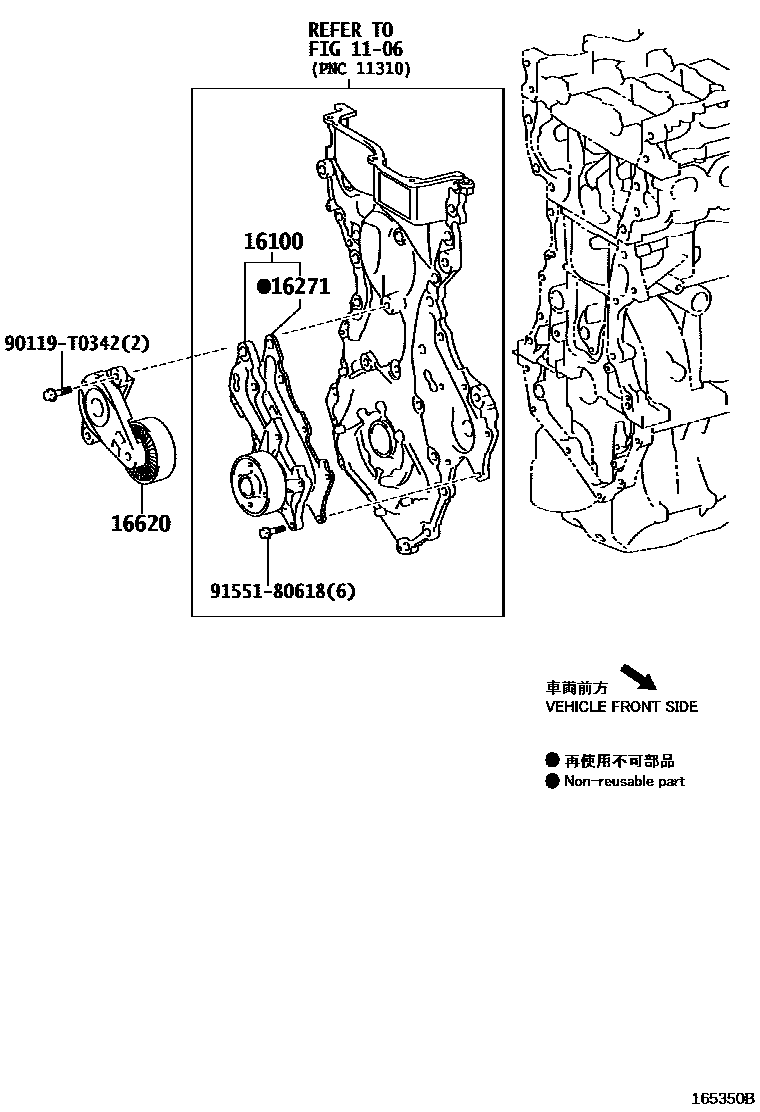

WATER PUMP

0001 1 0002 1 0003 1

1106

16100PUMP ASSY, ENGINE WATER

main16100-09181i1NZFE..NCP150..GCC,GEN,PH201403-201609

(L)

main16100-09211i1NZFE..NCP150..TAIW201409-201604

(L)

main16100-09730i1NRFBE,2NR#..NSP150,151..H201806-201910

main16100-09770i2NRFE..NSP151..F201607-202302

*230 OR *432

main16100-09770i3NRFKE..NSP152201911-202302

main16100-29157i1NZFE..NCP150..TAIW201403-201609

(J)

sub16100-29158

main16100-80010i3NRFE..NSP152201310-201607

sub16100-80019

main16100-B9490i2NRFE..NSP151..B201904-202011

*419

main16100-B9490i1NRFE..NSP150..RHD;1NRFE,2NRFE..NSP150,151..5F..(IDN,PH)..R201605-202302

*264

16271GASKET, WATER PUMP

main16271-0Y030i1NRFBE,2NR#..NSP150,151..H201806-201910

main16271-0Y030i1NRFE,2NRFE..NSP150,151..GCC,GEN,PH,VN201605-202302

*264

main16271-0Y030i2NRFE..NSP151..B201904-202011

*419

main16271-0Y040i3NRFKE..NSP152201911-202302

main16271-0Y040i2NRFE..NSP151..TAIW201607-202302

*230 OR *432

main16271-21021i1NZFE..NCP150..TAIW201403-201609

main16271-47031i3NRFE..NSP152201310-201607

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0Y020i1NRFE,2NRFE..NSP150,151201605-201708

*264

sub16620-0Y060

main16620-0Y020i1NRFE,2NRFE..NSP150,151201607-201708

*230 OR *432

sub16620-0Y060

main16620-0Y042i2NRFE..NSP151..B201904-201907

*419

sub16620-0Y043

main16620-0Y043i2NRFE..NSP151..B201908-202011

*419

sub16620-0Y044

main16620-0Y060i2NRFE..NSP151..IDN,TAIW201709-201911

*230 OR *432,*264

sub16620-0Y061

main16620-0Y061i1NRFE..NSP150..RHD;1NRFE,2NRFE..NSP150,151..5F..(IDN,PH)..R201912-202208

*230 OR *432,*264

main16620-0Y062i2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C202209-202302

*230 OR *432,*264

main16620-0Y090i1NRFBE,2NR#..NSP150,151..H201806-201906

sub16620-0Y091

main16620-0Y091i1NRFBE,2NR#..NSP150,151..H201907-201910

main16620-0Y100i3NRFKE..NSP152201911-202302

main16620-47030i3NRFE..NSP152201310-201910

sub16620-47031

90119T0342

main90119-T0342

9155180618

main91551-80618

6 parts on this diagram · 3 diagrams in section
