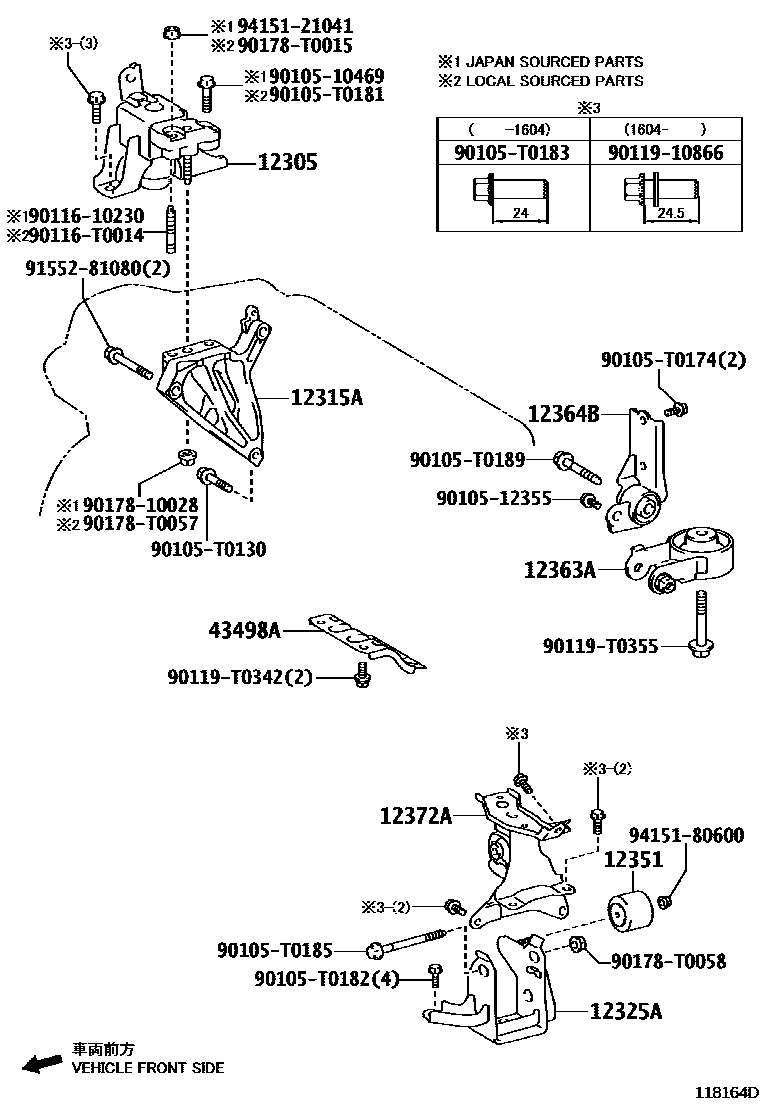

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0M120i1NZFE,2NZFE..NCP15#..5F201403-201412

sub12305-0M121

main12305-0M121i1NZFE,2NZFE..NCP15#..5F..A201501-201609

sub12305-0M122

main12305-0M130i1NZFE,2NZFE..NCP15#..4FC201403-201412

sub12305-0M131

main12305-0M131i1NZFE,2NZFE..NCP15#..4FC..(GCC,GEN,PH,VN)201501-201609

sub12305-0M132

main12305-0Y060i2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C201610-202108

main12305-0Y110i1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN201310-202302

main12305-0Y190i1NRFBE,2NR#..NSP150,151..H201806-201910

sub12305-0Y170

main12305-0Y270i3NRFKE..NSP152201911-202302

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0M013i1NZFE..NCP150..C201403-201609

main12315-0M032i1NZFE..NCP150..TAIW201409-201604

(L)

main12315-0Y010i2NRFE..NSP151..TAIW201605-202302

*264

main12315-0Y010i2NRFE..NSP151..B201904-202011

*419

main12315-0Y060i1NRFBE,2NR#..NSP150,151..H201806-201910

main12315-0Y070i1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN201607-202302

*230 OR *432

main12315-21033i2NZFE..NCP151201403-201606

main12315-21044i1NZFE..NCP150..TAIW201409-201604

(J)

main12315-47040i3NRFE..NSP152201310-201607

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12304-0Y150i1NRFBE,2NR#..NSP150,151..6F201806-201910

main12325-0M060i1NZFE,2NZFE..NCP15#..5F..A201403-201606

main12325-0M070i1NZFE..NCP150..4FC..(GCC,GEN,PH)201403-201606

main12325-0M080i1NZFE..NCP150..TAIW201409-201604

main12325-0M140i2NZFE..NCP151..4FC201403-201606

main12325-0M150i1NZFE..NCP150..5F..C201403-201609

main12325-0M160i1NZFE..NCP150..4FC..C201403-201609

main12325-0Y140i1NRFE..NSP150..CVT..PH201310-202302

main12325-0Y180i2NRFE..NSP151..CVT..C201610-201712

main12325-0Y260i3NRFKE..NSP152201911-202302

main12325-0Y290i2NRFE..NSP151..CVT..(GCC,GEN,PH,VN)201607-201708

main12325-0Y300i2NRFE..NSP151..TAIW201605-201802

main12325-0Y310i1NRFE,2NRFE..NSP150,151..5F..A201607-201708

sub12325-0Y311

main12325-0Y311i1NRFE..NSP150..5F..G;1NRFE..NSP150..5F..PH201710-202302

main12325-0Y320i2NRFE..NSP151..5F..C201610-201712

sub12325-0Y321

main12325-0Y321i2NRFE..NSP151..5F..(G,V)..C201802-202108

main12325-0Y340i2NRFE..NSP151..CVT..C201802

main12325-0Y350i1NRFBE,2NR#..NSP150,151..CVT..H201806-201910

main12325-0Y410i2NRFE..NSP151..CVT..(GCC,GEN,MA,VN)..(A,B)201710-202302

main12325-0Y430i2NRFE..NSP151..F201804-202101

12351DAMPER, ENGINE MOUNTING

main12351-0M050i1NZFE..NCP150..TAIW201409-201604

main12351-0T260i3NRFKE..NSP152201911-202302

main12351-0Y080i1NRFE,2NRFE..NSP150,151..5F..A201607-201708

sub12351-0Y120

main12351-0Y100i2NRFE..NSP151..5F..C201610-201712

main12351-0Y120i2NRFE..NSP151..5F..SA201710-202302

main12351-0Y130i2NRFE..NSP151..5F..R..C201802-202108

main12351-21090i1NZFE..NCP150..C201403-201609

main12351-37100i1NRFE..NSP150..RHD..R201310-202302

main12351-47020i1NRFBE,2NR#..NSP150,151..6F201806-201910

12363AROD, ENGINE MOVING CONTROL

main12363-0M030i1NZFE..NCP150..TAIW201409-201604

main12363-0M080i1NRFE..NSP150..5F..G;1NRFE..NSP150..5F..PH201403-202302

main12363-0M090i1NZFE,2NZFE..NCP15#..4FC..(GCC,GEN,PH,VN)201403-201606

main12363-0M100i2NRFE..NSP151..5F..(G,V)..C201403-202108

main12363-0M110i1NZFE..NCP150..4FC..C201403-201609

main12363-0Y100i1NRFE,3NRFE..NSP150,152..CVT201310-202302

main12363-0Y120i2NRFE..NSP151..F201605-202101

main12363-0Y200i2NRFE..NSP151..CVT..(PH,SA)201607-202302

main12363-0Y230i1NRFBE,2NR#..NSP150,151..CVT..H201806-201910

main12363-0Y260i1NRFBE,2NR#..NSP150,151..6F201806-201910

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-0Y010i2NRFE..NSP151..CVT..C201605-201712

main12364-0Y040i1NRFE,3NRFE..NSP150,152..CVT201310-202302

main12364-0Y110i2NRFE..NSP151..CVT..(GCC,GEN,PH,VN)201607-202302

main12364-0Y130i2NRFE..NSP151..TAIW201710-202101

main12364-0Y140i1NRFBE,2NR#..NSP150,151..CVT..H201806-201910

main12364-0Y210i3NRFKE..NSP152201911-202302

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0M130i1NZFE,2NZFE..NCP15#..5F..A201403-201606

main12372-0M140i1NZFE..NCP150..TAIW201403-201606

main12372-0M150i1NZFE..NCP150..5F..C201403-201609

main12372-0M160i1NZFE..NCP150..4FC..C201403-201609

main12372-0Y060i2NRFE..NSP151..TAIW201605-201802

main12372-0Y140i1NRFE,3NRFE..NSP150,152..CVT201310-201708

sub12372-0Y141

main12372-0Y141i1NRFE..NSP150..CVT..PH201709-202302

main12372-0Y230i3NRFKE..NSP152201911-202302

main12372-0Y250i1NRFE,2NRFE..NSP150,151..5F..A201607-201708

sub12372-0Y251

main12372-0Y251i1NRFE,2NRFE..NSP150,151..5F..GEN..R201710-202302

main12372-0Y260i2NRFE..NSP151..CVT..(GCC,GEN,PH,VN)201607-201708

main12372-0Y270i2NRFE..NSP151..5F..C201610-201712

sub12372-0Y271

main12372-0Y271i2NRFE..NSP151..5F..(G,V)..C201802-202108

main12372-0Y290i1NRFBE,2NR#..NSP150,151..6F201806-201910

main12372-0Y300i1NRFBE,2NR#..NSP150,151..CVT..H201806-201910

main12372-0Y350i2NRFE..NSP151..CVT..(PH,SA)201710-202302

main12372-0Y360i2NRFE..NSP151..F201802-202101

43498AINSULATOR, DRIVE SHAFT HEAT, NO.1

main43498-0D110iNSP150,151..H201806-201910

main43498-0D150iNSP151..(G,V)..C;NSP151..CVT..R..C201605-202108

main43498-0D200iNSP150,152..CVT201607-202302

main43498-52070iNSP152201310-201607

main43498-52130iNSP150..5F..GEN..R;NSP151..(GCC,GEN,MA,VN)..(A,B)201607-202302

9010510469

main90105-10469

9010512355

main90105-12355

90105T0130

main90105-T0130

90105T0174

main90105-T0174

90105T0181

main90105-T0181

90105T0182

main90105-T0182

90105T0183

main90105-T0183

90105T0185

main90105-T0185

90105T0189

main90105-T0189

9011610230

main90116-10230

90116T0014

main90116-T0014

9011910866

main90119-10866

90119T0342

main90119-T0342

90119T0355

main90119-T0355

9017810028

main90178-10028

90178T0015

main90178-T0015

90178T0057

main90178-T0057

90178T0058

main90178-T0058

9155281080

main91552-81080

9415121041

main94151-21041

9415180600

main94151-80600

29 parts on this diagram · 8 diagrams in section
