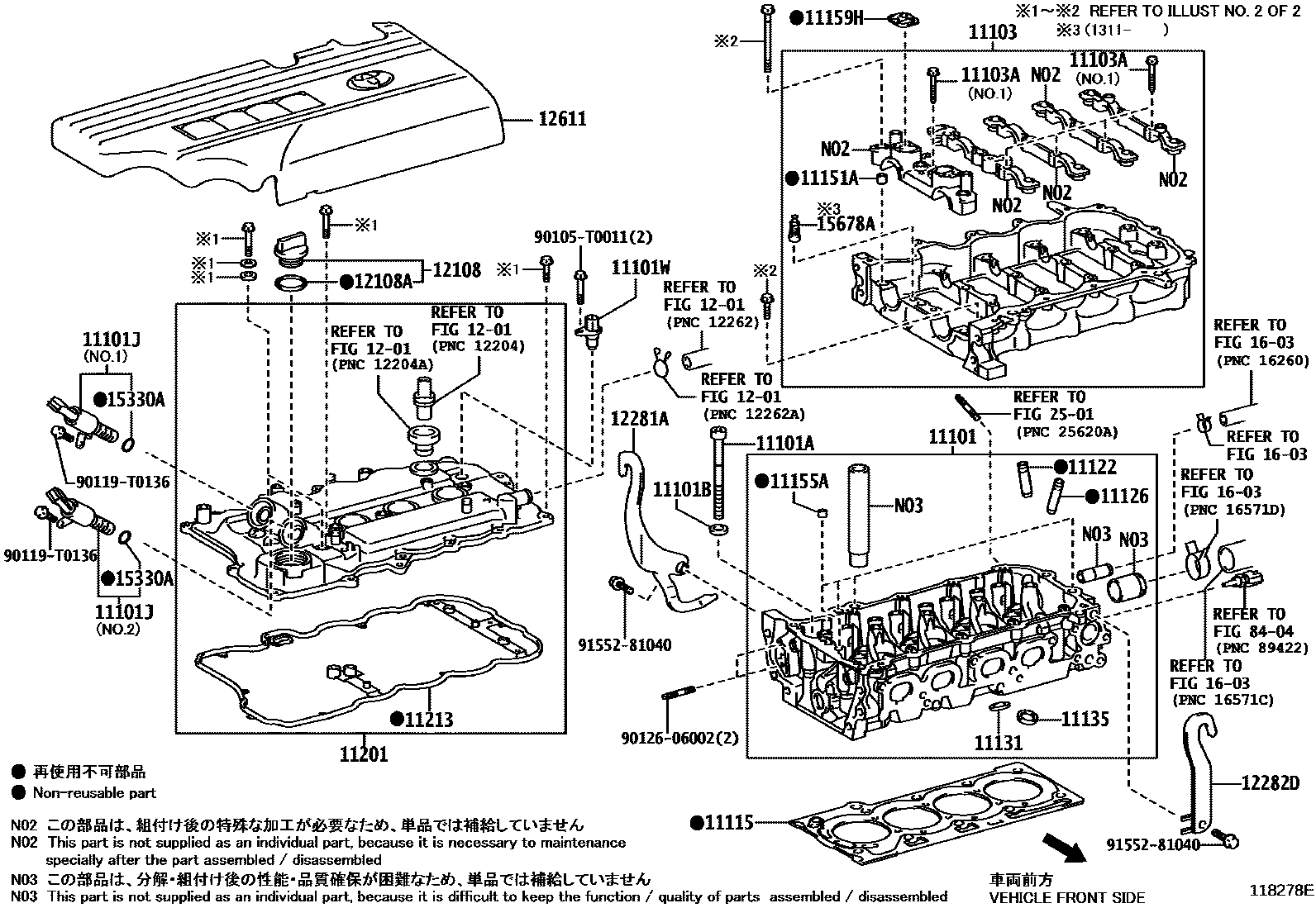

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
*264
*230 OR *432
*419
*230 OR *432,*264
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
*264
*230 OR *432
*419
*230 OR *432,*264
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
*264,NO.1
main15330-0Y050i1NRFE,2NRFE..NSP150,151..(GCC,IDN,MA)..(D,G,V);2NRFE,3NRFE..NSP151,152..CVT..(IDN,MA,TH,VN)..R201509-202302
*230 OR *432,NO.1
*419,NO.1
*264,NO.2
*230 OR *432,NO.2
*419,NO.2
NO.2
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.1
NO.2
11101WSENSOR, CRANK POSITION, NO.1
*230 OR *432
*264
*419
11103ABOLT(FOR CAMSHAFT HOUSING SET)
NO.2
main90105-T0271i1NRFE,2NRFE..NSP150,151..LHD..(GCC,GEN)..R;1NRFE,2NRFE..NSP150,151..CVT..(GEN,VN)..(D,G)..A201605-202302
*264,NO.2
main90105-T0271i1NRFE,2NRFE..NSP150,151..LHD..(GCC,GEN)..R;1NRFE,2NRFE..NSP150,151..CVT..(GEN,VN)..(D,G)..A201607-202302
*230 OR *432,NO.2
NO.2:REFER ILLUST.
*419,NO.2
NO.2
NO.1
*230 OR *432,NO.1
*264,NO.1
*419,NO.1
NO.1:REFER ILLUST.
NO.1
11115GASKET, CYLINDER HEAD
main11115-0Y030i2NRFE..NSP151..CVT..(IDN,MA,VN)..R;1NRFE,2NRFE..NSP150,151..(GCC,IDN,MA)..(D,G,V)201605-202302
*264
*419
*230 OR *432
sub11115-21091
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD,*264
STD,*419
STD,*230 OR *432
STD
STD
STD
STD
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
main11135-0Y030i1NRFE,2NRFE..NSP150,151..LHD..(GCC,GEN)..R;1NRFE,2NRFE..NSP150,151..CVT..(GEN,VN)..(D,G)..A201605-202302
STD,*264
STD,*419
main11135-0Y050i1NRFE,2NRFE..NSP150,151..LHD..(GCC,GEN)..R;1NRFE,2NRFE..NSP150,151..CVT..(GEN,VN)..(D,G)..A201607-202302
STD,*230 OR *432
STD
STD
STD
O/S 0.03
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=14,OD=6
main90253-13005i1NRFE,2NRFE..NSP150,151..LHD..(GCC,GEN)..R;1NRFE,2NRFE..NSP150,151..CVT..(GEN,VN)..(D,G)..A201605-202302
L=12.5,OD=8,*264
L=12.5,OD=8
L=12.5,OD=8,*230 OR *432
L=12.5,OD=8,*419
11155APIN, RING W/HEAD
*230 OR *432,NO.1,*264,NO.1
*264,NO.1
NO.1:REFER ILLUST.
NO.1
*230 OR *432,NO.1
*419,NO.1
*264,NO.2,*230 OR *432,NO.2
NO.2
*264,NO.2
*230 OR *432,NO.2
NO.2:REFER ILLUST.
*419,NO.2
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
*264
*419
main11159-0Y030i1NRFE,2NRFE..NSP150,151..LHD..(GCC,GEN)..R;1NRFE,2NRFE..NSP150,151..CVT..(GEN,VN)..(D,G)..A201607-202302
*230 OR *432
11201COVER SUB-ASSY, CYLINDER HEAD
(L)
main11201-0Y030i2NRFE..NSP151..CVT..(IDN,MA,VN)..R;1NRFE,2NRFE..NSP150,151..(GCC,IDN,MA)..(D,G,V)201710-202302
*230 OR *432,*264
*230 OR *432
*264
*419
(J)
11213GASKET, CYLINDER HEAD COVER
(L)
*230 OR *432,*264
*264
*230 OR *432
*419
(J)
1201
12108CAP SUB-ASSY, OIL FILLER
*264
*230 OR *432
main12180-0H020i2NRFE..NSP151..CVT..(IDN,MA,VN)..R;1NRFE,2NRFE..NSP150,151..(GCC,IDN,MA)..(D,G,V)201710-202302
*230 OR *432,*264
*419
12108AGASKET(FOR OIL FILLER CAP)
*264
*230 OR *432
*230 OR *432,*264
12281AHANGER, ENGINE, NO.1
(L)
*264
*230 OR *432
*419
main12281-0Y080i2NRFE..NSP151..CVT..(IDN,MA,VN)..R;1NRFE,2NRFE..NSP150,151..(GCC,IDN,MA)..(D,G,V)201911-202308
*230 OR *432
*264
(J)
sub12281-47023
12282DHANGER, ENGINE, NO.2
*419
*230 OR *432
main12282-0Y060i2NRFE..NSP151..CVT..(IDN,MA,VN)..R;1NRFE,2NRFE..NSP150,151..(GCC,IDN,MA)..(D,G,V)201605-202302
*264
12611COVER, ENGINE, NO.1
main12611-0Y110i1NRFE,2NRFE..NSP150,151..LHD..(GCC,GEN)..R;1NRFE,2NRFE..NSP150,151..CVT..(GEN,VN)..(D,G)..A201605-202302
15678AFILTER, OIL CONTROL VALVE
(L)
*230 OR *432
*264
(J)
1603
2501
8404
90105T0011
main90105-T0011
90119T0136
main90119-T0136
9012606002
main90126-06002
9155281040
main91552-81040
32 parts on this diagram · 8 diagrams in section
