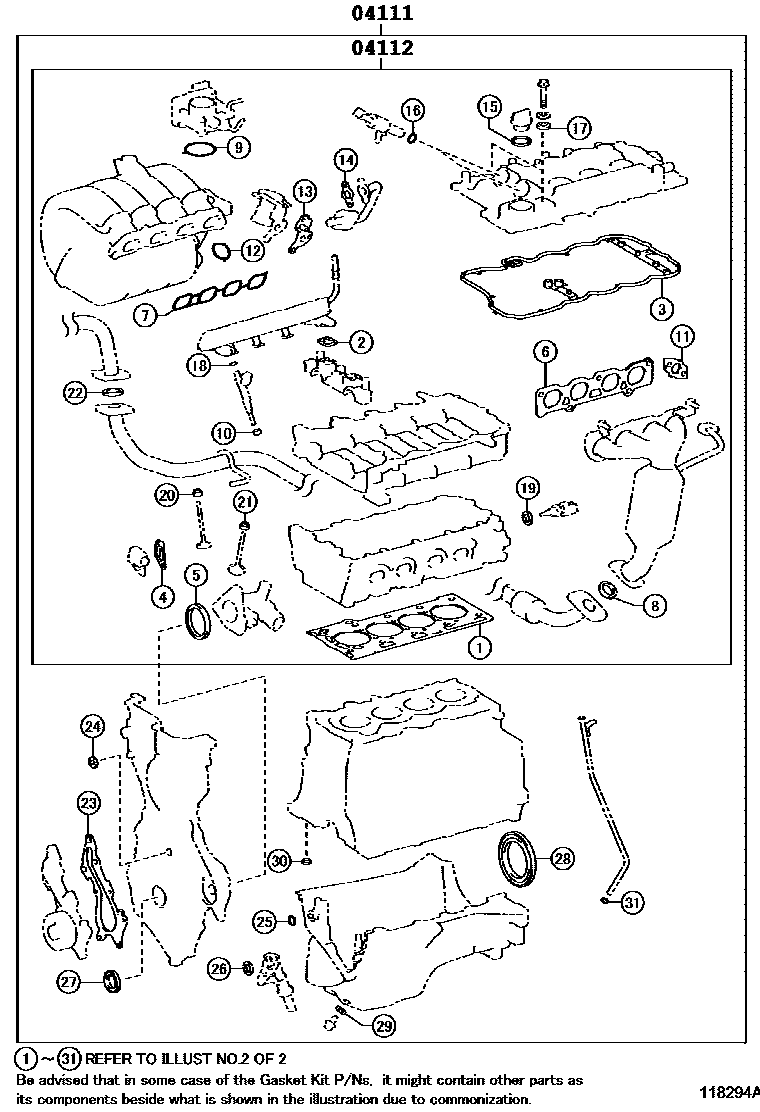

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-0M141i1NZFE..NCP150..GCC,GEN,IDN,MA,PH201403-201604

main04111-0M142i1NZFE..NCP150..C201604-201609

main04111-0M150i1NZFE..NCP150..TAIW201409-201604

sub04111-0M151

main04111-0Y030i2NRFE..NSP151..TAIW201605-201609

main04111-0Y031i1NRFE,2NRFE..NSP150,151..GCC,GEN,PH,VN201610-201708

*264

main04111-0Y050i1NRFBE,2NR#..NSP150,151..H201806-201910

main04111-0Y060i1NRFE..NSP150..RHD;1NRFE..NSP150..5F..PH201710-202108

*230 OR *432

main04111-0Y080i3NRFE..NSP152201709-201910

main04111-0Y110i2NRFE..NSP151..B202002-202011

*264

main04111-0Y170i3NRFKE..NSP152201911-202302

main04111-21371i2NZFE..NCP151201403-201604

main04111-21372i2NZFE..NCP151201604-201606

main04111-47150i3NRFE..NSP152201310-201607

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0M099i1NZFE..NCP150..GCC,GEN,IDN,MA,PH201403-201604

main04112-0M108i1NZFE..NCP150..TAIW201409-201604

sub04112-0M109

main04112-0M130i1NZFE..NCP150..C201604-201609

main04112-0Y030i1NRFE,2NRFE..NSP150,151..GCC,GEN,PH,VN201607-201610

*264

main04112-0Y031i1NRFE,2NRFE..NSP150,151..LHD..(GCC,GEN)..R;1NRFE,2NRFE..NSP150,151..CVT..(GEN,VN)..(D,G)..A201710-202302

*264

main04112-0Y050i1NRFBE,2NR#..NSP150,151..H201806-201910

main04112-0Y060i2NRFE..NSP151..VN..R;1NRFE,2NRFE..NSP150,151..GCC..G201710

*230 OR *432

main04112-0Y080i3NRFE..NSP152201709-201910

main04112-0Y170i3NRFKE..NSP152201911-202302

main04112-21239i2NZFE..NCP151201403-201604

main04112-21370i2NZFE..NCP151201604-201606

main04112-47100i3NRFE..NSP152201310-201607

2 parts on this diagram · 12 diagrams in section
