STANDARD TOOL

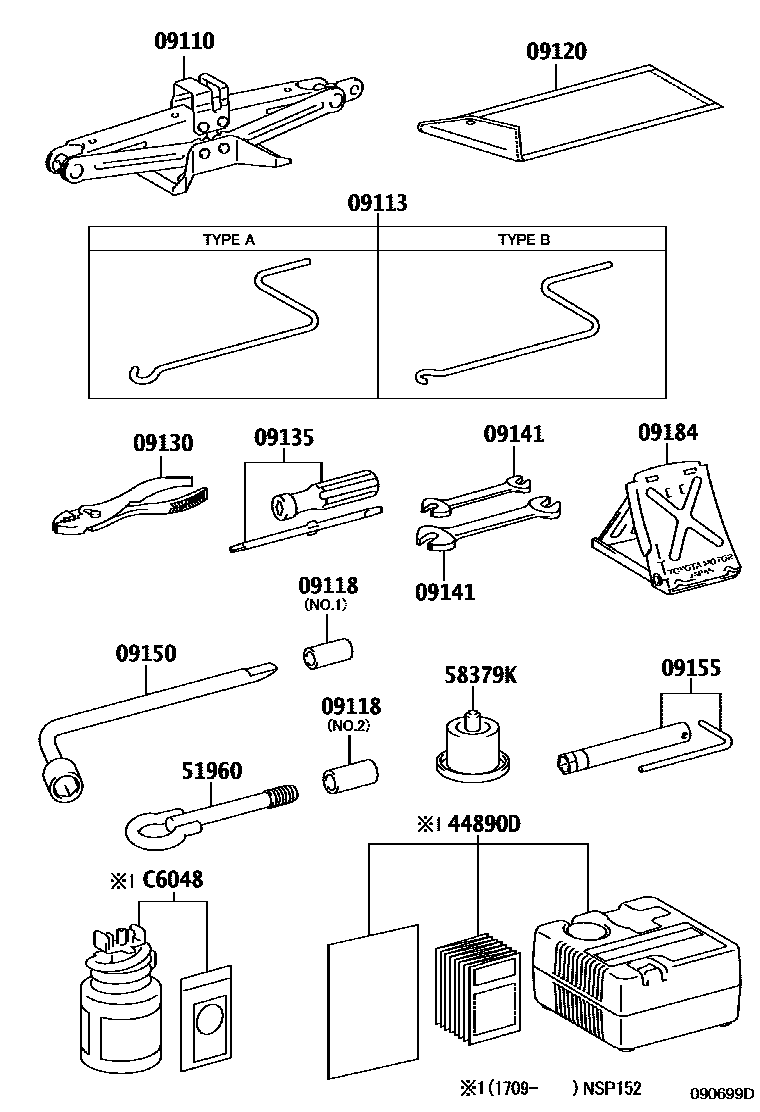

Parts diagram
09110JACK ASSY
main09111-0D060i201904-202011
main09111-0D070i201409-201606
main09111-0D140i201310-201603
sub09111-0D220
main09111-0D190i201403-201603
main09111-0D210i201806-201910
sub09111-0D211
main09111-0D220i201604-202302
main09111-0D230i201604-202108
main09111-52070i201606-202101
09113HANDLE, JACK
main09113-02040i201806-201910
main09113-0D090i201403-202108
TYPE A:REFER ILLUST.
main09113-0D100i201310-202302
TYPE A:REFER ILLUST.
main09113-0D110i201904-202011
TYPE A:REFER ILLUST.
main09113-20040i201409-201606
TYPE A:REFER ILLUST.
sub09113-20050
main09113-20050i201606-202101
TYPE B:REFER ILLUST.
09118COVER, JACK
main09118-0D030i201310-202302
NO.1:REFER ILLUST.
main09118-0D040i201310-202302
NO.2:REFER ILLUST.
main09118-0D070i201605-202101
NO.1:REFER ILLUST.
main09118-0D080i201605-202101
NO.2:REFER ILLUST.
09120BAG, TOOL
main09120-0D060i201806-201910
main09120-0D150i201804-202101
TYPE A:REFER ILLUST.
main09120-0D150i201409-201802
main09120-0D160i201904-202011
TYPE A:REFER ILLUST.
main09120-0D180i201802-202108
TYPE A:REFER ILLUST.
main09120-0D180i201403-201712
main09120-0D190i201310-201708
main09120-0D190i201710-202302
TYPE A:REFER ILLUST.
main09120-0D210i201403-201512
sub09120-0D190
main09120-0D220i201710-202302
TYPE A:REFER ILLUST.
main09120-0D220i201403-201708
09130PLIERS
main90089-99010i201403-202302
main99913-11500i201403-202011
09135DRIVER, SCREW
main90089-99009i201403-202302
main99915-10700i201403-202011
09141SPANNER
main09141-0K030i201403-202302
8 X 10
main09141-0K040i201403-202302
12 X 14
main90080-99015i201408-201609
8 X 10
main90080-99016i201408-201609
12 X 14
main99914-10810i201403-202011
8 X 10
main99914-11214i201403-202011
12 X 14
09150WRENCH, HUB NUT BOX
main09150-02010i201806-201910
main09150-02090i201510-201512
main09150-0A010i201310-202111
main09150-0A010i202111-202302
(L)
main09150-0D040i201404-202108
main09150-16010i201409-202101
main09150-40010i202111-202302
(J)
09155WRENCH, SPARK PLUG
main09155-0M010i201403-201606
(L)
main09155-74010i201403-201606
(J)
09184STOPPER, WHEEL
main09184-00010i201403-201512
44890DCOMPRESSOR ASSY, AIR
main44890-0D010i201709-202302
51960HOOK ASSY, FRONT
main51960-0D190i201310-202302
main51960-0D200i201409-202101
main51960-0D220i201403-202108
main51960-0D240i201806-201910
58379KPROTECTOR, BODY LOWER BACK
main58379-0D040i201310-202302
main58379-0D070i201409-202101
main58379-0D100i201806-201910
C6048REPAIR SET, TIRE
mainC60480D010i201709-202302

14 parts on this diagram · 3 diagrams in section
