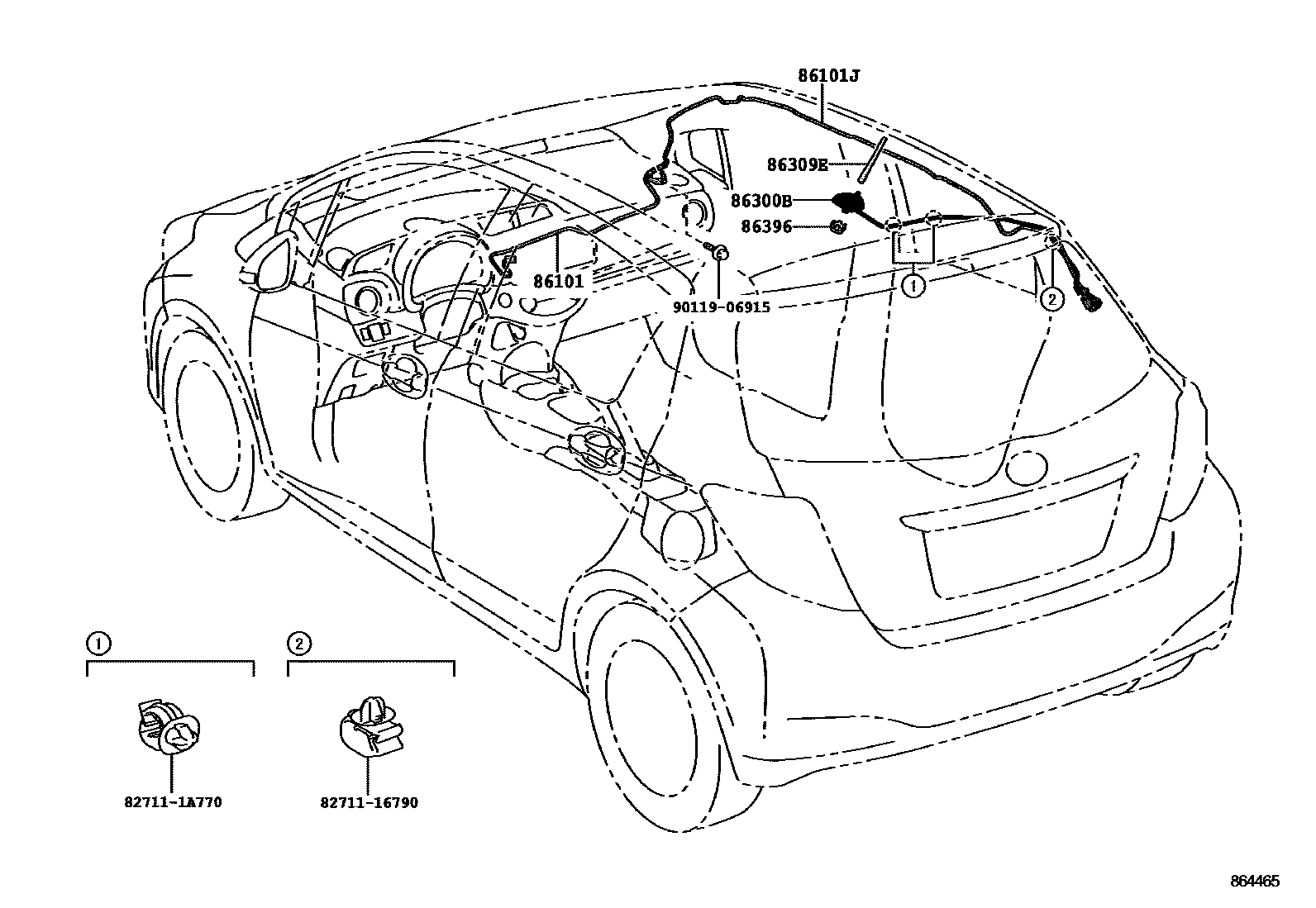

ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-52890iNCP131201108

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-52830iNCP131201108

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-52520iNCP131201108-201205

main86300-52590iNCP131201205

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-42080iNCP131201108-201207

main86309-47020iNCP131201208

86396NUT, ANTENNA

main86396-47010iNCP131201108

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

9011906915

main90119-06915

8 parts on this diagram · 1 diagram in section
