AIR BAG

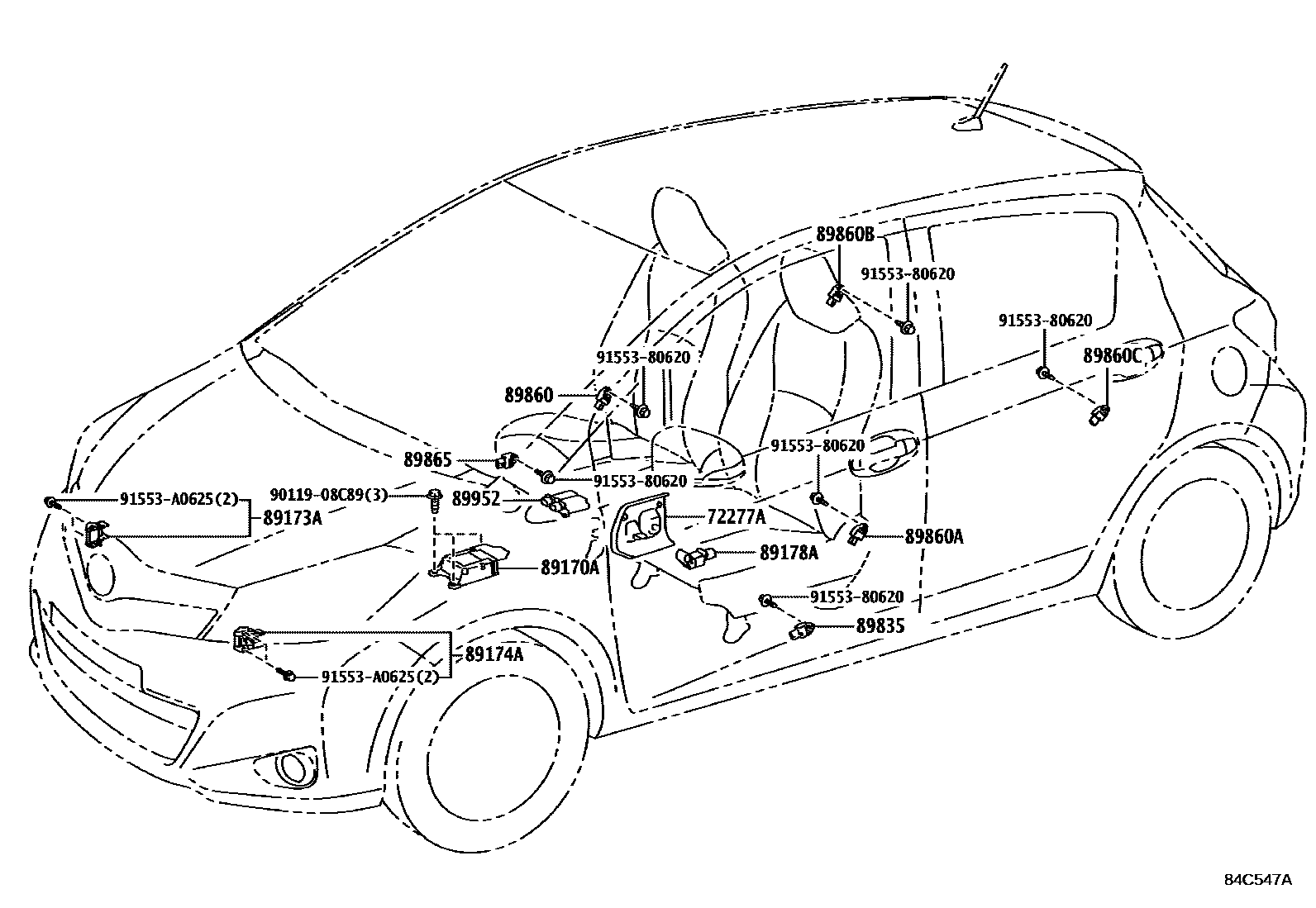

Parts diagram
72277APROTECTOR, SEAT SLIDE POSITION SENSOR
main72277-52010i201108-201210
89170ACOMPUTER ASSY, AIRBAG
main89170-52G40i201204-201206
MARK=N7
main89170-52G41i201206-201308
MARK=6W
main89170-52G42i201308-201407
main89170-52G50i201204-201206
MARK=N7
main89170-52G51i201206-201308
MARK=6W
main89170-52G52i201308-201407
main89170-52M00i201108-201204
MARK=76
main89170-52M10i201108-201204
MARK=76
89173ASENSOR, AIRBAG, FRONT RH
main89173-39375i201108-201204
main89173-59275i201204
89174ASENSOR, AIRBAG, FRONT LH
main89173-39375i201108-201204
main89173-59275i201204
89178ASENSOR, SEAT POSITION AIRBAG
main89178-33050i201108-201210
89835SENSOR, DOOR SIDE AIRBAG, LH
main89831-48020i201108-201204
MEXICO SPEC
main89831-48020i201108-201204
PUERTO RICO SPEC
main89831-52040i201204
PUERTO RICO SPEC
main89831-52040i201204
MEXICO SPEC
89860SENSOR ASSY, SIDE AIRBAG, RH
main89831-52020i201204
MEXICO SPEC
main89831-52020i201204
PUERTO RICO SPEC
main89831-52090i201108-201204
PUERTO RICO SPEC
main89831-52090i201108-201204
MEXICO SPEC
89860ASENSOR ASSY, SIDE AIRBAG, LH
main89831-52020i201204
PUERTO RICO SPEC
main89831-52020i201204
MEXICO SPEC
main89831-52090i201108-201204
PUERTO RICO SPEC
main89831-52090i201108-201204
MEXICO SPEC
89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2
main89831-52020i201204
MEXICO SPEC
main89831-52020i201204
PUERTO RICO SPEC
main89831-52090i201108-201204
PUERTO RICO SPEC
main89831-52090i201108-201204
MEXICO SPEC
89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2
main89831-52020i201204
MEXICO SPEC
main89831-52020i201204
PUERTO RICO SPEC
main89831-52090i201108-201204
MEXICO SPEC
main89831-52090i201108-201204
PUERTO RICO SPEC
89865SENSOR, DOOR SIDE AIRBAG, RH
main89831-48020i201108-201204
PUERTO RICO SPEC
main89831-48020i201108-201204
MEXICO SPEC
main89831-52040i201204
PUERTO RICO SPEC
main89831-52040i201204
MEXICO SPEC
89952COMPUTER, OCCUPANT DETECTION
main89952-52010i201108-201202
sub89952-52012
main89952-52011i201202-201407
sub89952-52012
9011908C89
main90119-08C89
9155380620
main91553-80620
91553A0625
main91553-A0625

15 parts on this diagram · 1 diagram in section
