BACK DOOR LOCK & HANDLE

68801AHINGE SUB-ASSY, BACK DOOR, UPPER

main68801-74020iNCP131201108-201407

PAD T=0.5

68838PAD, BACK DOOR HINGE, NO.1

main68838-74020iNCP131201108

T=0.5

main68838-74030iNCP131201108

T=1.0

main68838-74040iNCP131201108

T=1.5

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-52110iNCP131201108

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-52110iNCP131201108

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-52020iNCP131201108

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-52020iNCP131201108

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W640iNCP131201108-201209

sub68950-0W641

main68950-0W641iNCP131201209

main68950-0W650iNCP131..USA201108-201209

REAR WINDOW WIPER-WITHOUT

sub68950-0W651

main68950-0W651iNCP131..USA201209

REAR WINDOW WIPER-WITHOUT

68960STAY ASSY, BACK DOOR, LH

main68960-0W620iNCP131201108-201209

sub68960-0W621

main68960-0W621iNCP131201209

main68960-0W630iNCP131..USA201108-201209

REAR WINDOW WIPER-WITHOUT

sub68960-0W631

main68960-0W631iNCP131..USA201209

REAR WINDOW WIPER-WITHOUT

69023HANDLE SUB-ASSY, BACK DOOR OUTSIDE

main69023-52020iNCP131..USA201108

POWER DOOR LOCK-WITHOUT

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-52390iNCP131201108-201202

sub69350-52391

main69350-52391iNCP131201203-201407

main69350-52370iNCP131..USA201108-201407

MEXICO SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-52050iNCP131201108

69772ROD, BACK DOOR LOCK CONTROL

main69772-52010iNCP131..USA201108

MEXICO SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

69790CONTROL ASSY, BACK DOOR LOCK

main69790-52030iNCP131..USA201108

POWER DOOR LOCK-WITHOUT

9010506184

main90105-06184

9011906748

main90119-06748

9015980022

main90159-80022

9017908096

main90179-08096

9155110816

main91551-10816

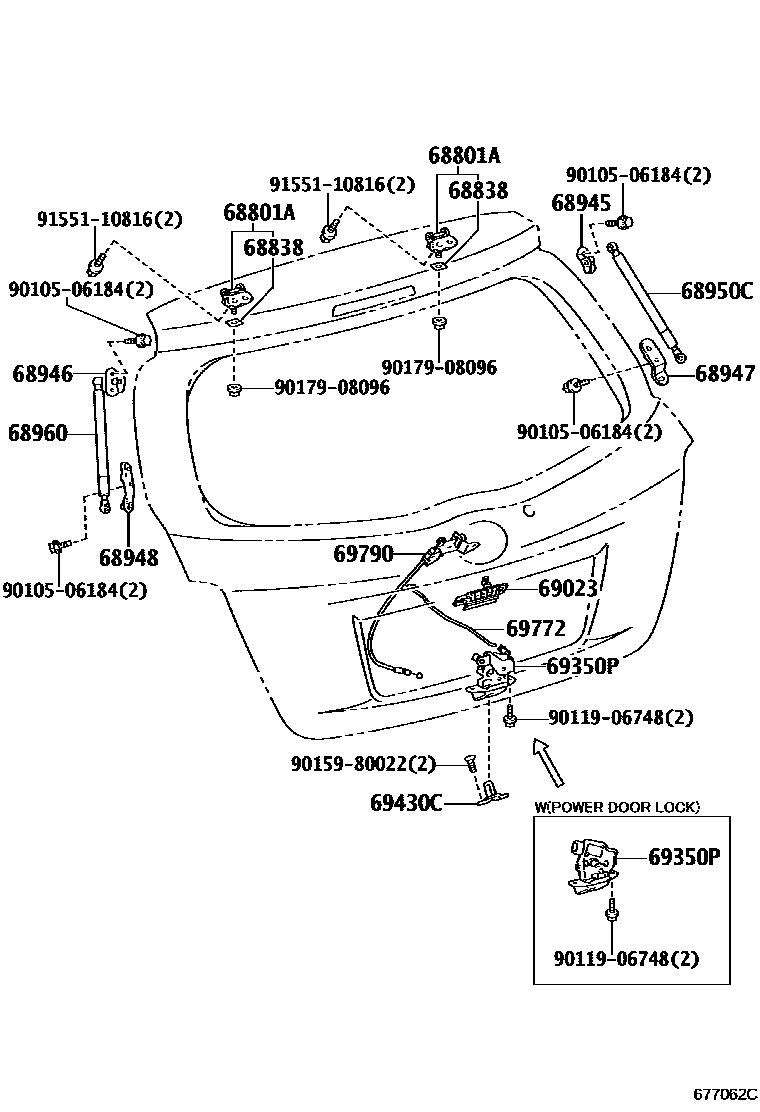

18 parts on this diagram · 1 diagram in section
