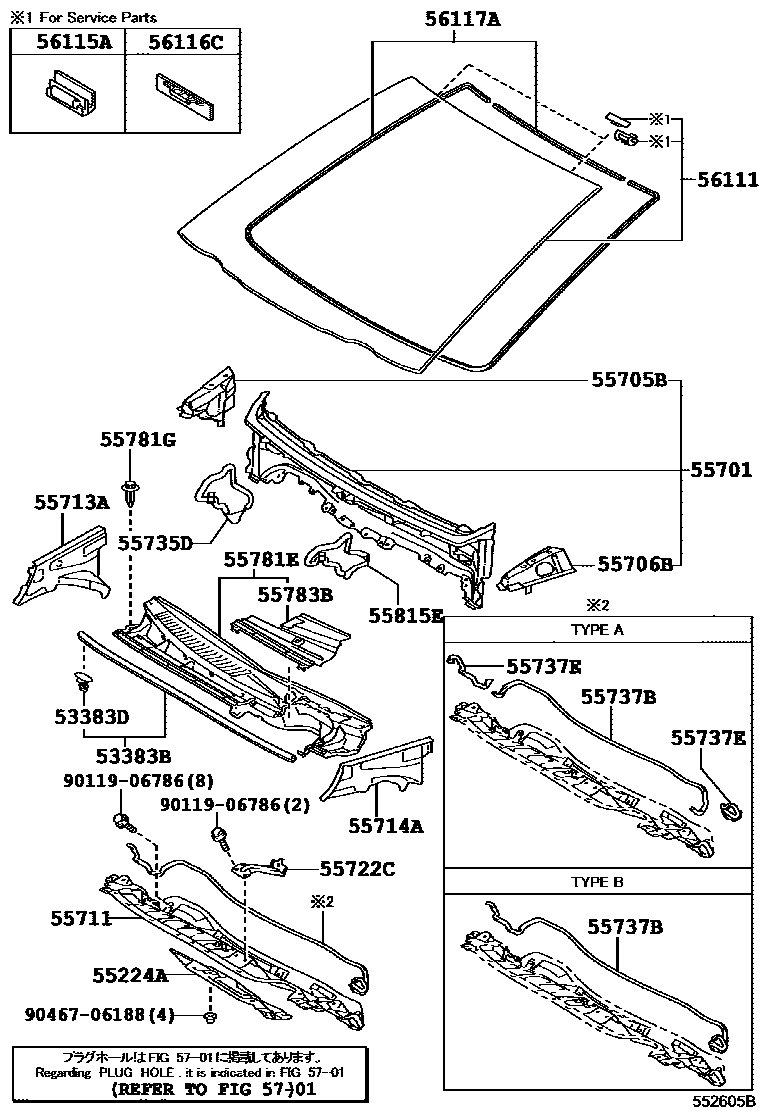

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1OUTSIDE MOULDING

53383BSEAL, HOOD TO COWL TOP

main53383-52130iNCP131201108

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150iNCP131201108

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-52020iNCP131201108

sub55224-52021

55701PANEL SUB-ASSY, COWL

main55700-52340iNCP131201108

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-52150iNCP131201108

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-52150iNCP131201108

55711PANEL, COWL TOP, OUTER

main55701-52280iNCP131201108

55713APANEL, COWL TOP SIDE, RH

main55713-52130iNCP131201108

55714APANEL, COWL TOP SIDE, LH

main55714-52130iNCP131201108

55722CBRACE, COWL TOP TO COWL, INNER

main55722-52120iNCP131201108

55735DSEAL, FRONT AIR SHUTTER, RH

main55735-52090iNCP131201108

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-52010iNCP131201108

TYPE A:REFER ILLUST.

main55737-74010iNCP131201108

TYPE B:REFER ILLUST.

55737ESEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55737-52050iNCP131201108

TYPE A:REFER ILLUST.

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-52241iNCP131..USA201108

main55708-52251iNCP131..CND201108

COLD AREA SPEC

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07190-C0iNCP131201108-201407

BLACK

sub90467-07190

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-52290iNCP131201108

55815ESEAL, FRONT VENTILATOR, NO.1

main55815-52040iNCP131201108

56111GLASS, WINDSHIELD

main56101-52630iNCP131201108

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNCP131201108

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNCP131201108

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50130iNCP131201108

*D,L=3186 OR 606

5701

9011906786

main90119-06786

9046706188

main90467-06188

24 parts on this diagram · 2 diagrams in section
