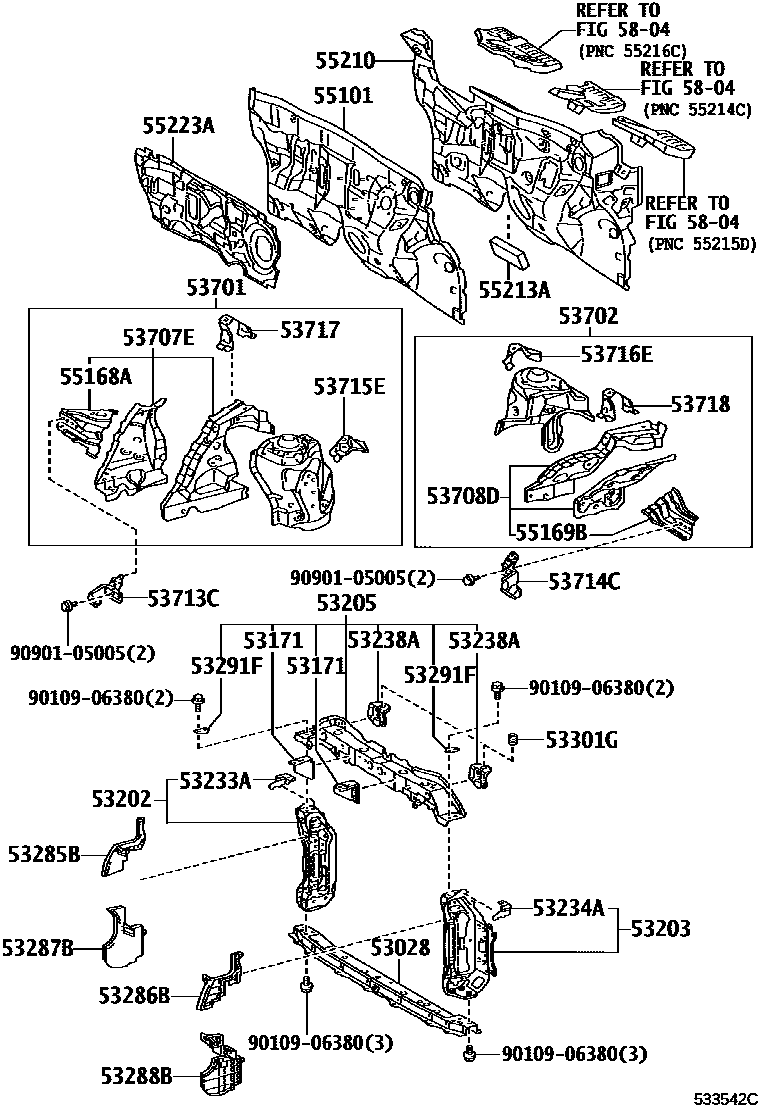

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1USA = HEADLAMP(2BEAM HALOGEN

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-52070iNCP131201108

53171RETAINER, RADIATOR SUPPORT

main53171-52030iNCP131201108

RH

main53171-52070iNCP131201108

LH

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-52908iNCP131201108

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-52906iNCP131201108

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-52904iNCP131201108-201307

sub53205-52907

main53205-52907iNCP131201308

53233ABRACKET, HEADLAMP, NO.1 RH

main53233-52050iNCP131201108

53234ABRACKET, HEADLAMP, NO.1 LH

main53234-52060iNCP131201108

53238ABRACKET, HOOD BUMPER MOUNTING

main53238-52030iNCP131201108

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-52360iNCP131..STD201108

main53285-52400iNCP131..RS201108

HEADLAMP-2BEAM HALOGEN SPORT

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-52300iNCP131..STD201108

main53286-52320iNCP131..RS201108

HEADLAMP-2BEAM HALOGEN SPORT

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-52140iNCP131..STD201108

main53287-52160iNCP131..RS201108

HEADLAMP-2BEAM HALOGEN SPORT

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-52140iNCP131..STD201108

main53288-52160iNCP131..RS201108

HEADLAMP-2BEAM HALOGEN SPORT

53291FPLATE, RADIATOR SUPPORT

main53291-52070iNCP131201108

53301GCUSHION, HOOD BUMPER

main53384-50010iNCP131201108-201407

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-52190iNCP131201108-201407

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-52190iNCP131201108-201407

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-52030iNCP131201108-201110

main53707-52060iNCP131201110

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-52030iNCP131201108-201110

main53708-52060iNCP131201110

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-52070iNCP131201108

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-52080iNCP131201108

sub53714-52100

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-52030iNCP131201108

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-52030iNCP131201108

53717PLATE, FENDER APRON, RH

main53717-52110iNCP131201108

53718PLATE, FENDER APRON, LH

main53718-52110iNCP131201108

55101PANEL SUB-ASSY, DASH

main55101-52490iNCP131..5F201108-201407

main55101-52500iNCP131..4FC201108-201407

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-52130iNCP131201108

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-52130iNCP131201108

55210INSULATOR ASSY, DASH PANEL

main55210-52320iNCP131201108

55213APAD, DASH PANEL SILENCER

main55213-52190iNCP131201108

55223AINSULATOR, DASH PANEL, OUTER

main55223-52130iNCP131201108

5804

9010906380

main90109-06380

9090105005

main90901-05005

33 parts on this diagram · 2 diagrams in section
