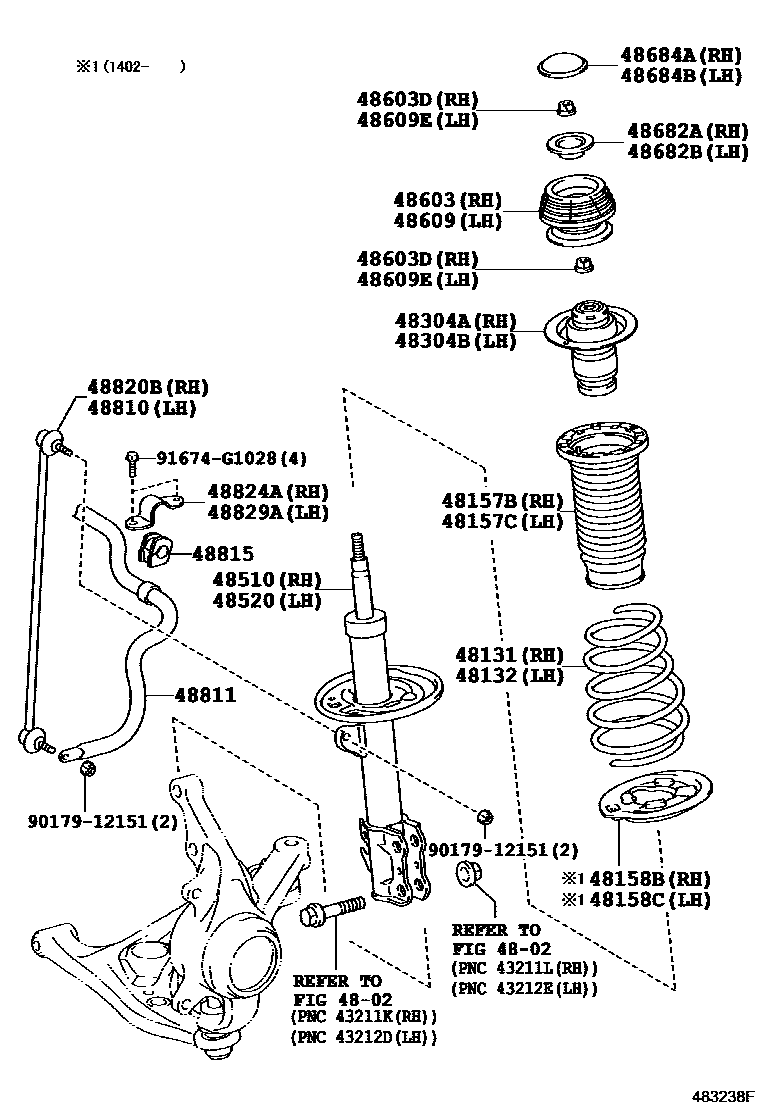

FRONT SPRING & SHOCK ABSORBER
4802
48131SPRING, FRONT COIL, RH
sub48131-52G52
sub48131-52G52
TIRE & DISC WHEEL-P195/50R16 ALL SEASON TIRE 6J ALUMINUM
sub48131-52G81
TIRE & DISC WHEEL-P195/50R16 ALL SEASON TIRE 6J ALUMINUM
48132SPRING, FRONT COIL, LH
sub48131-52G52
sub48131-52G52
TIRE & DISC WHEEL-P195/50R16 ALL SEASON TIRE 6J ALUMINUM
sub48131-52G81
TIRE & DISC WHEEL-P195/50R16 ALL SEASON TIRE 6J ALUMINUM
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-52J20,TIRE & DISC WHEEL-P195/50R16 ALL SEASON TIRE 6J ALUMINUM
sub48510-52J21
MARK 48510-52J21,TIRE & DISC WHEEL-P195/50R16 ALL SEASON TIRE 6J ALUMINUM
sub48510-52F92
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-52620,TIRE & DISC WHEEL-P195/50R16 ALL SEASON TIRE 6J ALUMINUM
sub48520-52621
MARK 48520-52621,TIRE & DISC WHEEL-P195/50R16 ALL SEASON TIRE 6J ALUMINUM
sub48520-52492
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48682ASUPPORT, FRONT SUSPENSION, NO.2 RH
48682BSUPPORT, FRONT SUSPENSION, NO.2 LH
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9017912151
main90179-12151
91674G1028
main91674-G1028
27 parts on this diagram · 1 diagram in section
