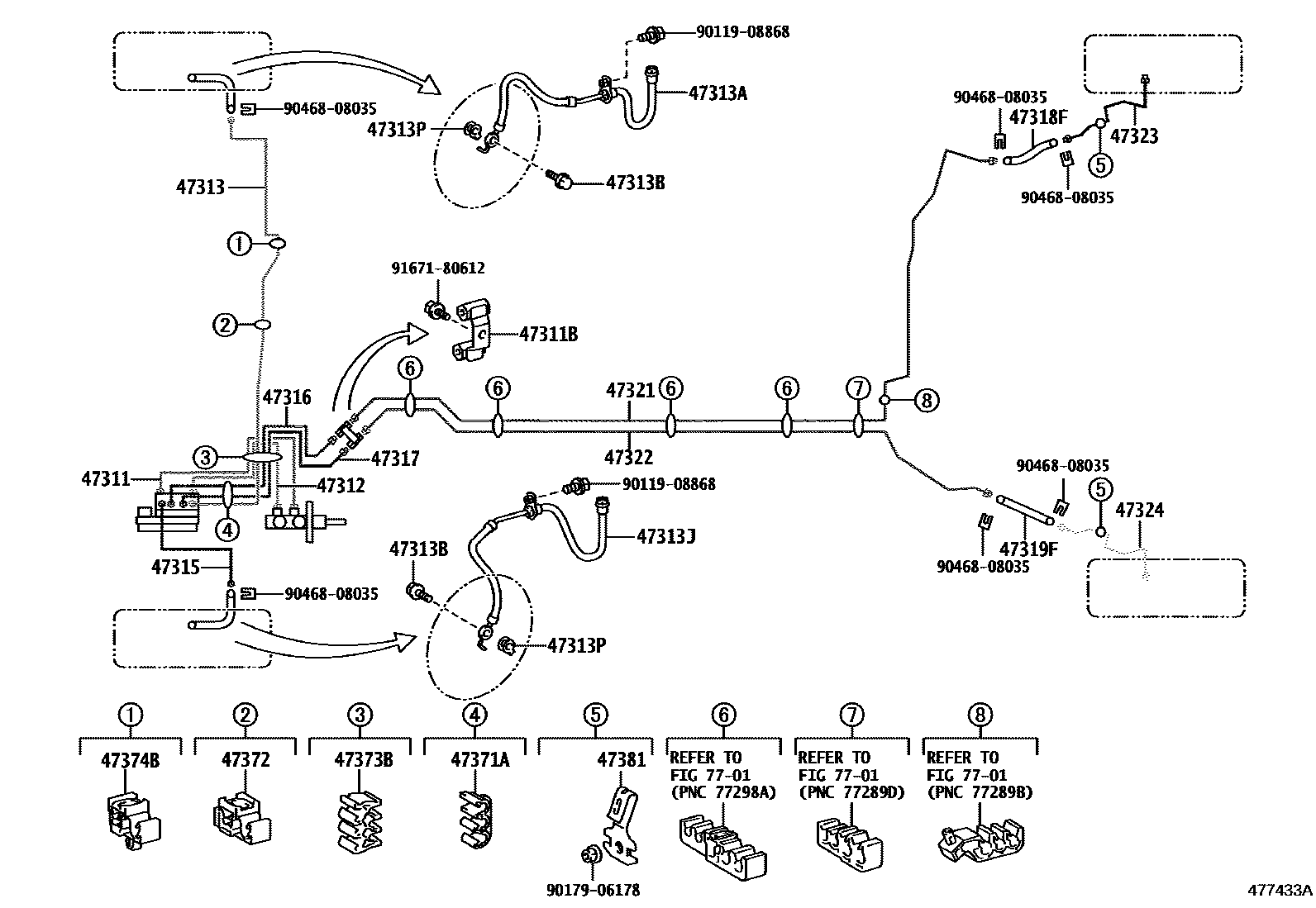

BRAKE TUBE & CLAMP
47311TUBE, FRONT BRAKE, NO.1
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
PAINTED= GREEN
*601
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
MARK = PINK
PAINTED= LIGHT BLUE
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47315TUBE, FRONT BRAKE, NO.5
47316TUBE, FRONT BRAKE, NO.6
47317TUBE, FRONT BRAKE, NO.7
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47321TUBE, REAR BRAKE, NO.1
47322TUBE, REAR BRAKE, NO.2
47323TUBE, REAR BRAKE, NO.3
PUERTO RICO SPEC&S PACKAGE
MEXICO SPEC&S PACKAGE
MEXICO SPEC&S PACKAGE
PUERTO RICO SPEC&S PACKAGE
S PACKAGE
S PACKAGE
47324TUBE, REAR BRAKE, NO.4
PUERTO RICO SPEC&S PACKAGE
MEXICO SPEC&S PACKAGE
MEXICO SPEC&S PACKAGE
PUERTO RICO SPEC&S PACKAGE
S PACKAGE
S PACKAGE
47371ACLAMP, BRAKE TUBE, NO.1
47372CLAMP, BRAKE TUBE, NO.2
47373BCLAMP, BRAKE TUBE, NO.3
47374BCLAMP, BRAKE TUBE, NO.4
47381BRACKET, BRAKE TUBE CLAMP NO.1
7701
9011908868
9017906178
9046808035
9167180612
29 parts on this diagram · 4 diagrams in section
