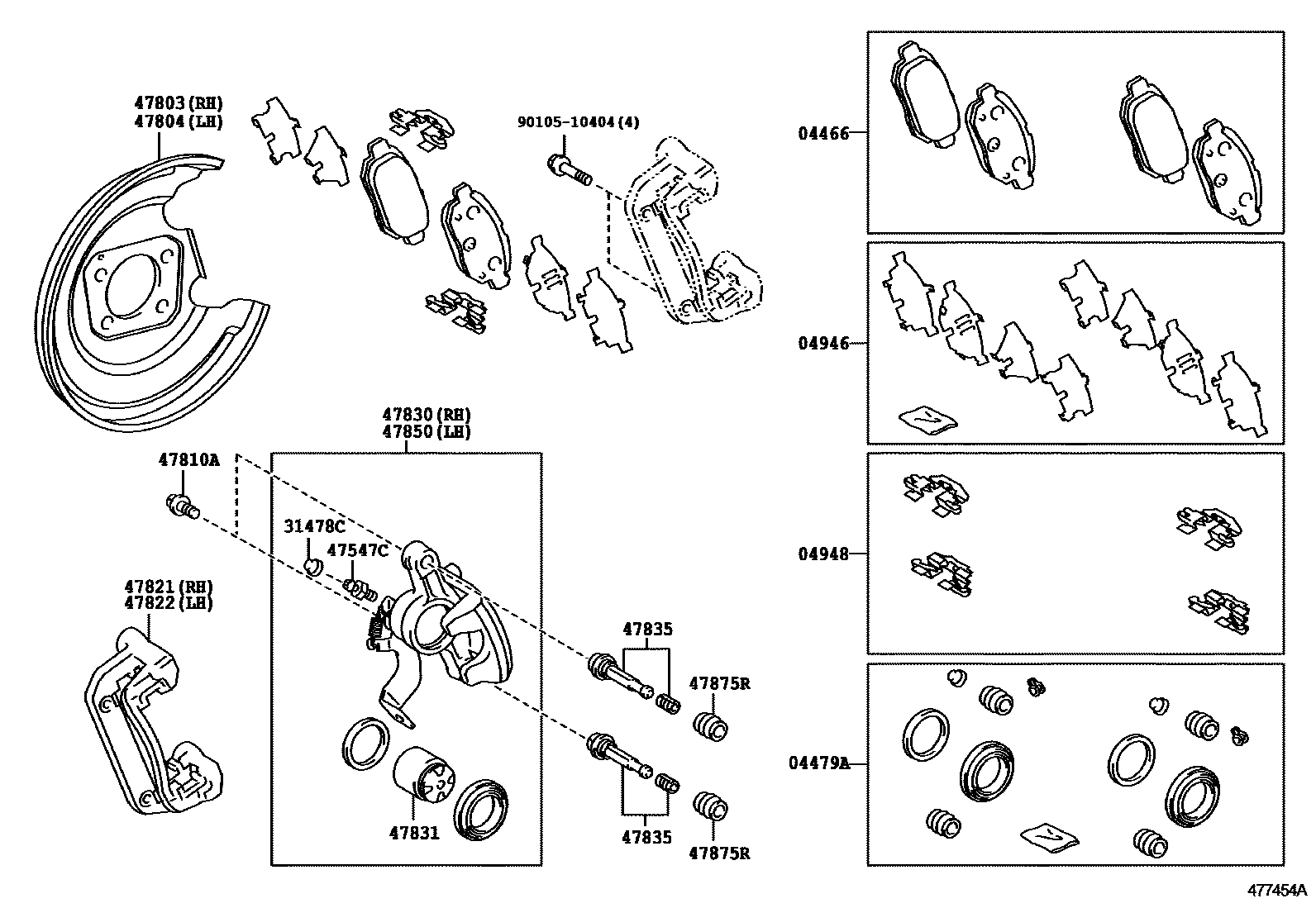

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-52140iNCP131..USA201108-201202

MARK NBK D6234,S PACKAGE

sub04466-52141

main04466-52141iNCP131..USA201202-201303

MARK NBK D6234,S PACKAGE

sub04466-52170

main04466-52170iNCP131..USA201304

MARK NBK D6247,S PACKAGE

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-52170iNCP131..USA201108

S PACKAGE

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-52080iNCP131..USA201108

S PACKAGE

04948FITTING KIT, DISC BRAKE, REAR

main04948-12060iNCP131..USA201202

S PACKAGE

main04948-52040iNCP131..USA201108-201201

S PACKAGE

sub04948-12060

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010×2iNCP131..USA201108

S PACKAGE

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050×2iNCP131..USA201108

S PACKAGE

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-52030iNCP131..USA201108

S PACKAGE

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-52030iNCP131..USA201108

S PACKAGE

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90015-AA102×4iNCP131..USA201108

S PACKAGE

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-12151iNCP131..USA201108

S PACKAGE

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12151iNCP131..USA201108

S PACKAGE

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-52161iNCP131..USA201108

S PACKAGE

47831PISTON, REAR DISC BRAKE

main47831-52090×2iNCP131..USA201108

S PACKAGE

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-12150×4iNCP131..USA201108

S PACKAGE

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-52161iNCP131..USA201108

S PACKAGE

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150×4iNCP131..USA201108

S PACKAGE

9010510404

main90105-10404

17 parts on this diagram · 1 diagram in section
