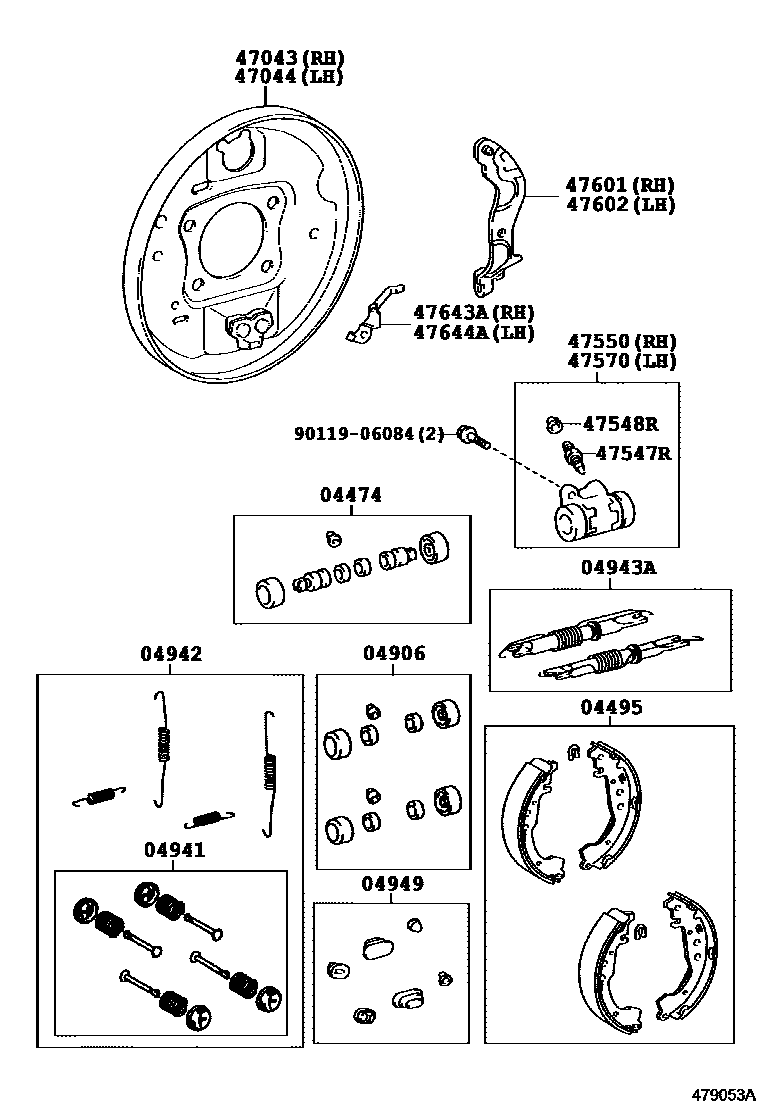

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-52020iNCP131..STD¥1,730201108

04495SHOE KIT, REAR BRAKE

main04495-52100iNCP131..STD¥6,300201108-201306

MARK NBK LN521

sub04495-52140¥6,300

main04495-52150iNCP131..STD¥7,100201306-201403

MARK NBK LN521,REF.PNC47643A 47644A

main04495-52170iNCP131..STD¥3,440201403-201407

MARK NBK LN521,REF.PNC47643A 47644A

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iNCP131..STD¥870201108

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-46010iNCP131..STD¥1,690201108-201407

04942SPRING KIT, REAR BRAKE

main04942-52050iNCP131..STD¥2,060201108

04943ASTRUT KIT, REAR BRAKE

main04943-12010iNCP131..STD¥2,730201108

04949PLUG KIT, REAR BRAKE

main04949-12010iNCP131..STD¥800201108

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-52100iNCP131..STD¥2,370201108-201407

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-52100iNCP131..STD¥2,370201108-201407

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iNCP131..STD¥200201108-201407

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iNCP131..STD¥160201108-201407

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-20211iNCP131..STD¥3,130201108-201407

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-20101iNCP131..STD¥3,130201108-201407

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-52100iNCP131..STD¥580201108-201306

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-52100iNCP131..STD¥580201108-201306

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-47010iNCP131..STD¥200201108-201403

TYPE A:REFER ILLUST.

main47643-52102iNCP131..STD¥200201403-201407

TYPE B:REFER ILLUST.

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-47010iNCP131..STD¥200201108-201403

TYPE A:REFER ILLUST.

main47644-52102iNCP131..STD¥200201403-201407

TYPE B:REFER ILLUST.

9011906084

main90119-06084¥100

18 parts on this diagram · 2 diagrams in section
