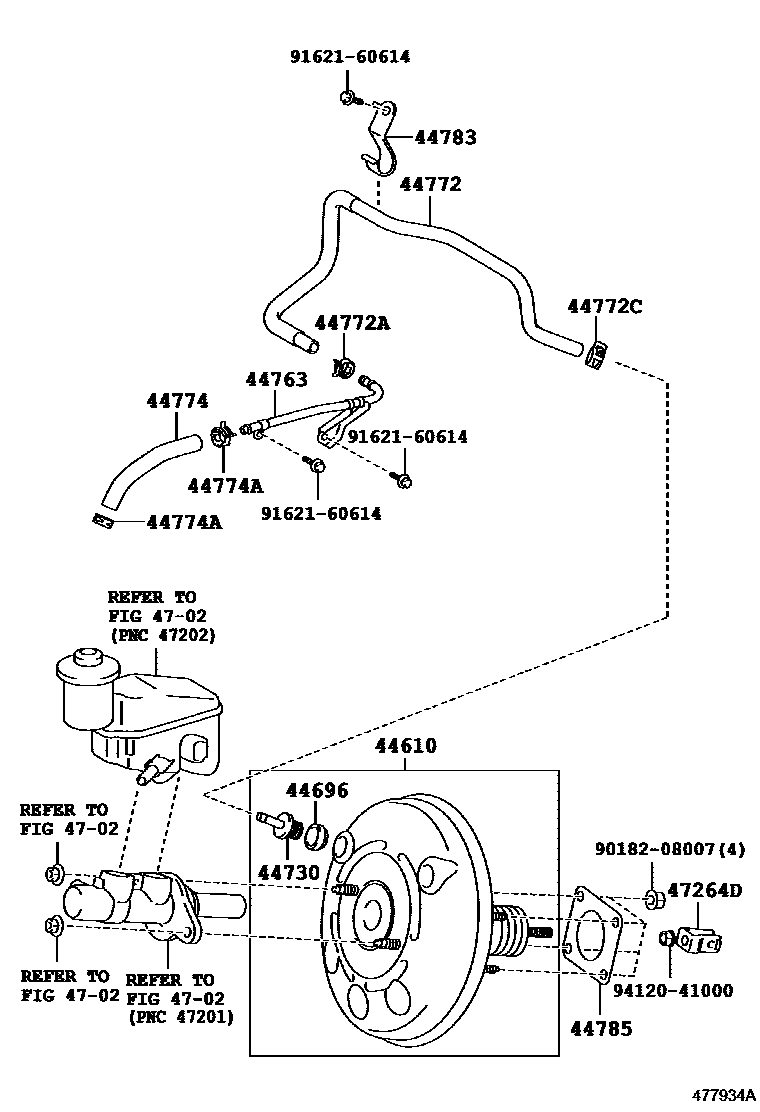

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-52B50iNCP131..STD201108-201407

PUERTO RICO SPEC&S PACKAGE

main44610-52B70iNCP131..RS201108-201407

S PACKAGE

44696GROMMET, CHECK VALVE

main90480-24439iNCP131201108-201407

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60070iNCP131201108

44763TUBE, BOOSTER VACUUM

main44763-52080iNCP131201108

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-52180iNCP131201108

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main96133-41500iNCP131201108

44772CCLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)

main90467-16014iNCP131201108

44774HOSE, UNION TO CONNECTOR TUBE

main95446-09130iNCP131201108

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500iNCP131201108

44783CLAMP, VACUUM HOSE

main44783-52070iNCP131201108-201407

44785GASKET, BRAKE BOOSTER

main44785-16020iNCP131201108

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-52040iNCP131201108

9018208007

main90182-08007

9162160614

main91621-60614

9412041000

main94120-41000

16 parts on this diagram · 1 diagram in section
