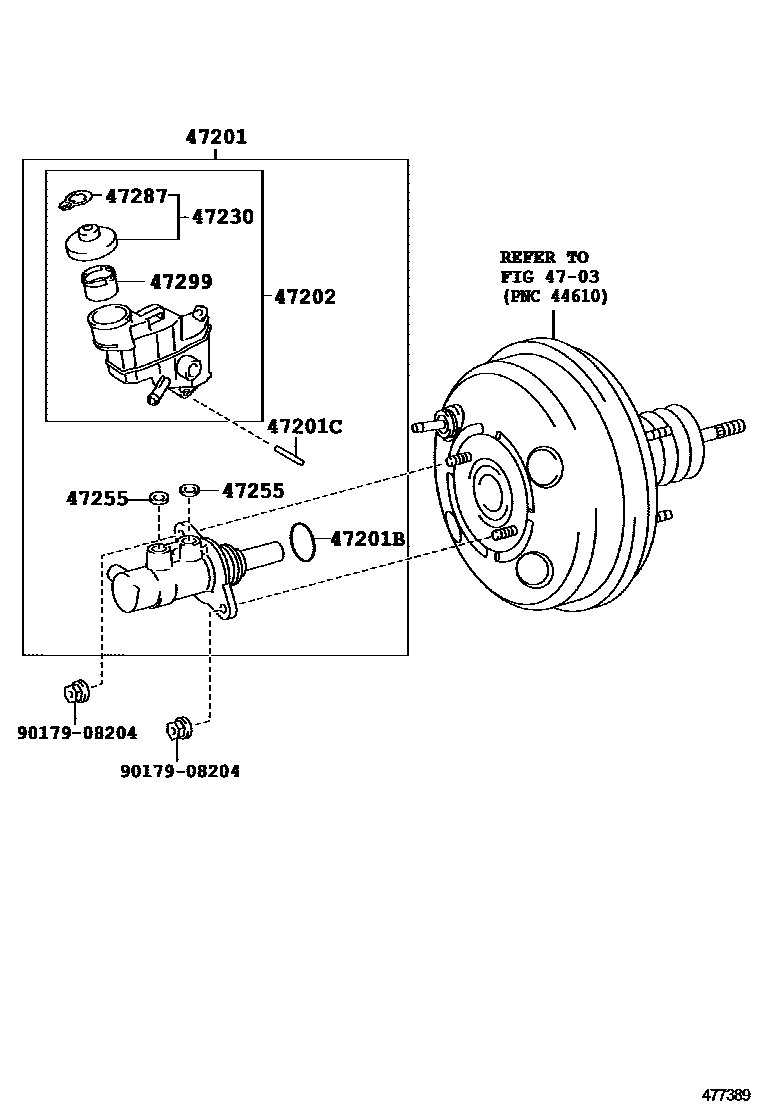

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-52600iNCP131..4FC..STD201108-201407

PUERTO RICO SPEC&S PACKAGE

main47201-52620iNCP131..5F..USA201108-201407

PUERTO RICO SPEC&S PACKAGE

main47201-52640iNCP131..4FC..RS201108-201203

S PACKAGE

sub47201-52641

main47201-52641iNCP131..4FC..RS201204-201205

S PACKAGE

sub47201-52642

main47201-52642iNCP131..4FC..RS201205-201407

S PACKAGE

main47201-52650iNCP131..5F..RS201108-201203

S PACKAGE

sub47201-52651

main47201-52651iNCP131..5F..RS201204-201205

S PACKAGE

sub47201-52652

main47201-52652iNCP131..5F..RS201205-201407

S PACKAGE

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iNCP131201108

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iNCP131201108

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-52270iNCP131..4FC201108-201407

main47220-52280iNCP131..5F201108-201407

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iNCP131201108

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iNCP131201108

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iNCP131201108

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iNCP131201108

9017908204

main90179-08204

10 parts on this diagram · 1 diagram in section
