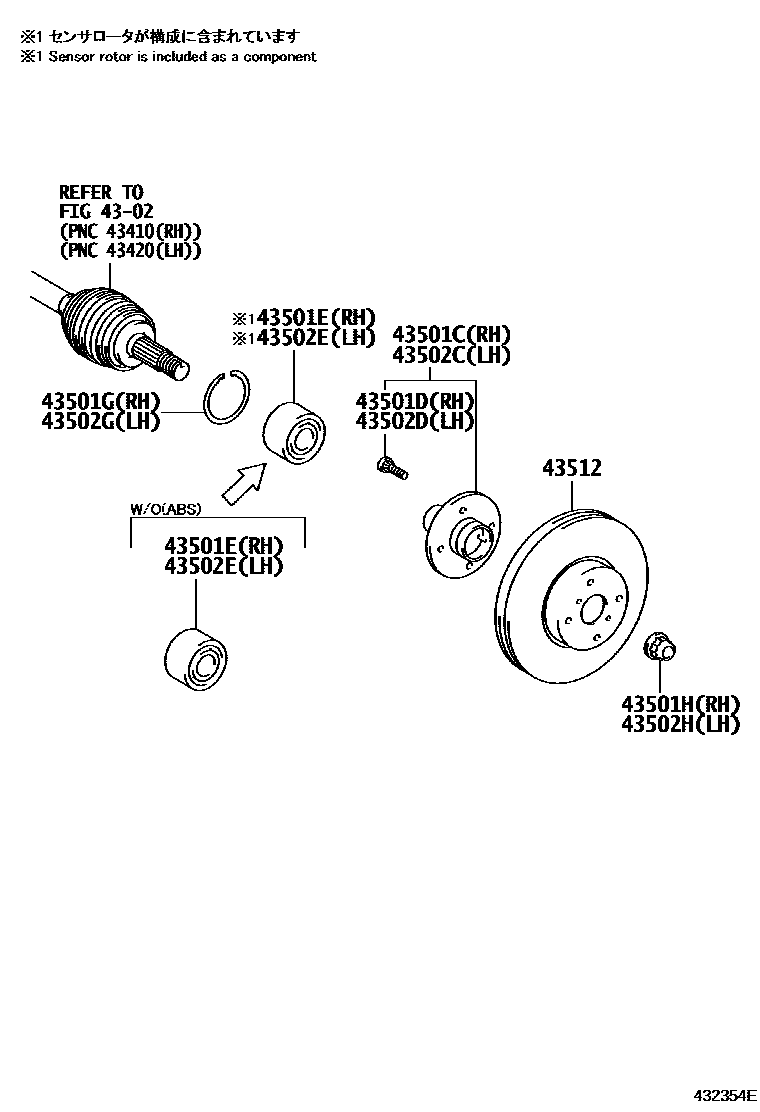

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-52030iNCP131¥5,800201108

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iNCP131¥240201108

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40079iNCP131¥7,100201108

sub90369-40009¥7,100

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-80003iNCP131¥200201108

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iNCP131¥220201108

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-52030iNCP131¥5,800201108

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iNCP131¥240201108

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40079iNCP131¥7,100201108

sub90369-40009¥7,100

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-80003iNCP131¥200201108

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iNCP131¥220201108

43512DISC, FRONT

main43512-52120iNCP131..STD¥8,000201108-201407

main43512-52130iNCP131..RS¥8,600201108-201407

S PACKAGE&REAR WHEEL BRAKE-DISC

main43512-52130iNCP131..RS¥8,600201108-201407

REAR WHEEL BRAKE-DISC

12 parts on this diagram · 1 diagram in section
