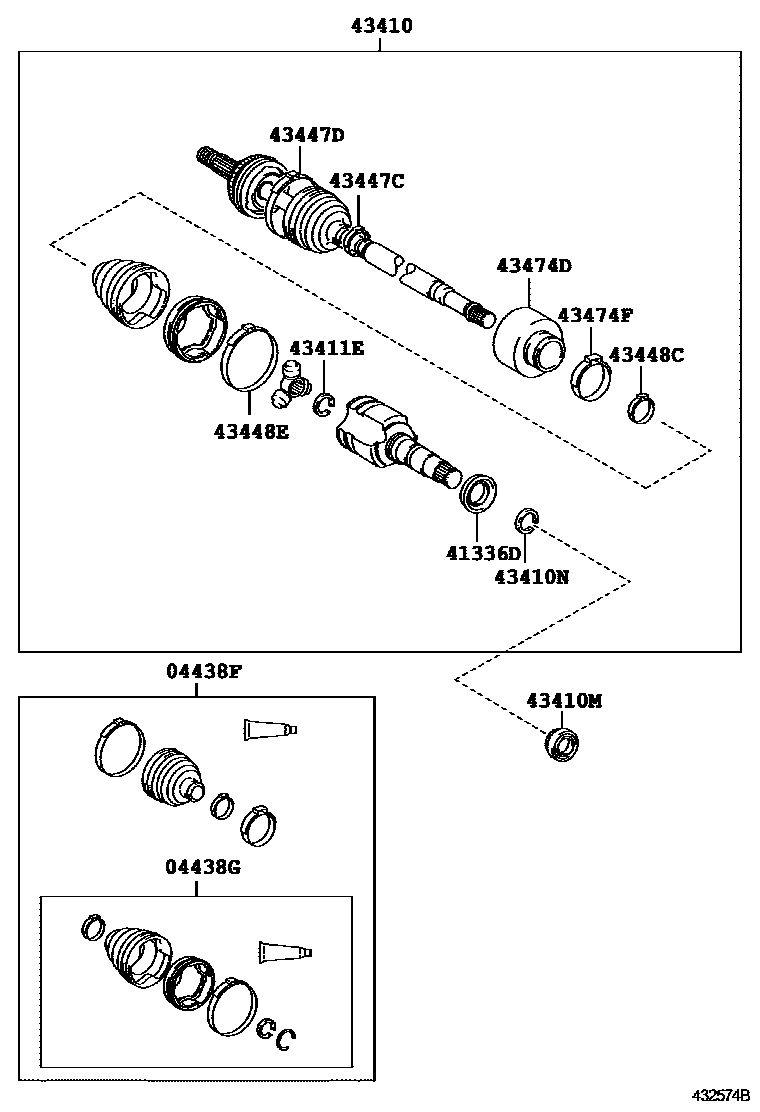

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-52890iNCP131¥10,800201108-201407

sub04427-52891¥9,000

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-52191iNCP131¥5,500201108-201407

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iNCP131¥130201108

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-52210iNCP131¥68,900201108-201407

sub43410-52211¥52,100

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34031iNCP131..4FC¥350201108-201212

sub90311-34045¥350

main90311-34039iNCP131..5F¥350201108-201407

main90311-34045iNCP131..4FC¥350201212-201407

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-26004iNCP131¥100201108

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22001iNCP131¥110201108

sub90520-22029¥90

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-52260iNCP131¥220201108

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-52250iNCP131¥330201108

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01078iNCP131¥80201108

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01146iNCP131¥350201108

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-52030iNCP131¥4,640201108-201407

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-14010iNCP131¥700201108-201407

13 parts on this diagram · 2 diagrams in section
