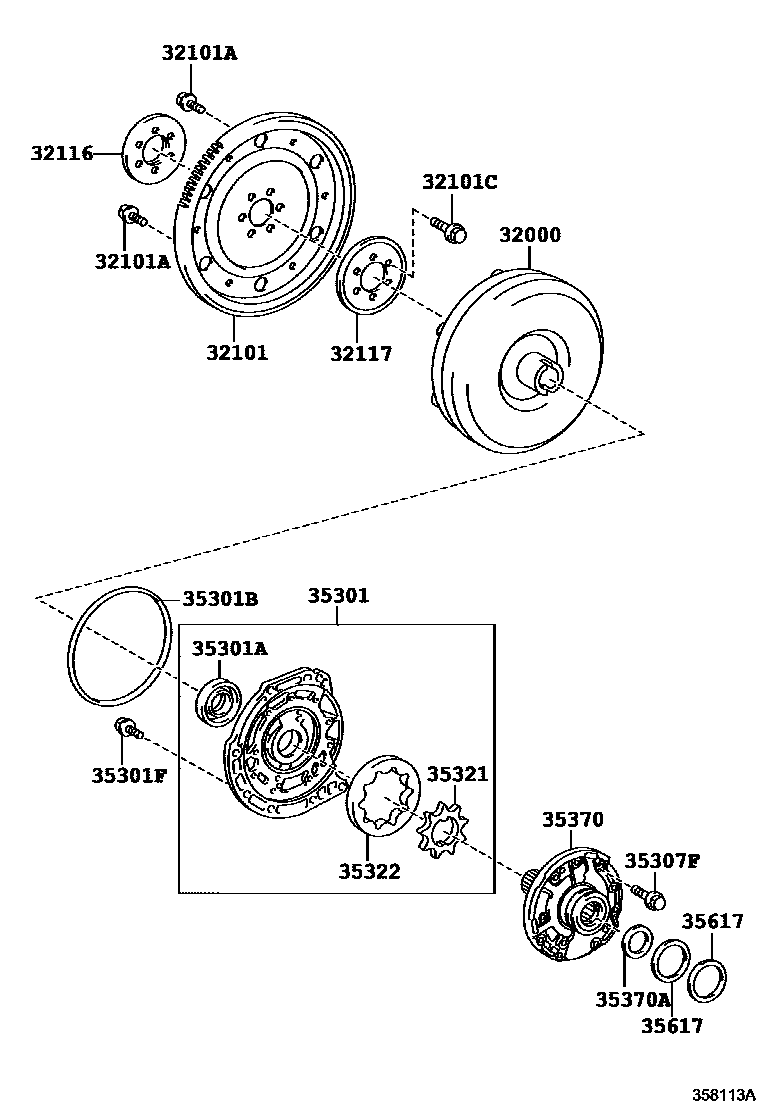

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-52041iNCP131..4FC201108-201407

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-52021iNCP131..4FC201108

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iNCP131..4FC201108

*8-1.25PX12-8.4,BLACK

main90119-08498iNCP131..4FC201108

*8-1.25PX12-8,SILVER WHITE

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iNCP131..4FC201108

*10-1.25PX18-13

32116SPACER, DRIVE PLATE, FRONT

main32116-52030iNCP131..4FC201108

32117SPACER, DRIVE PLATE, REAR

main32117-52030iNCP131..4FC201108

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-52040iNCP131..4FC201108

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38064iNCP131..4FC201108

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35697-52010iNCP131..4FC201401

main90301-99124iNCP131..4FC201108-201312

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08301iNCP131..4FC201108

*8-1.25PX22-20

35307FBOLT (FOR STATOR SHAFT)

main90148-60027iNCP131..4FC201108

35321GEAR, FRONT OIL PUMP DRIVE

main35321-52060iNCP131..4FC201108

T=9.44-9.449,MARK 1

main35321-52070iNCP131..4FC201108

T=9.45-9.459,MARK 2

main35321-52080iNCP131..4FC201108

T=9.46-9.47,MARK 3

main35321-52090iNCP131..4FC201108

T=9.471-9.48,MARK 4

main35321-52100iNCP131..4FC201108

T=9.481-9.49,MARK 5

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-52060iNCP131..4FC201108

T=9.44-9.449,MARK 1

main35322-52070iNCP131..4FC201108

T=9.45-9.459,MARK 2

main35322-52080iNCP131..4FC201108

T=9.46-9.47,MARK 3

main35322-52090iNCP131..4FC201108

T=9.471-9.48,MARK 4

main35322-52100iNCP131..4FC201108

T=9.481-9.49,MARK 5

35370SHAFT ASSY, STATOR

main35370-52070iNCP131..4FC201108

35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)

main90374-26003iNCP131..4FC201108

35617RING, CLUTCH DRUM OIL SEAL

main35613-52020iNCP131..4FC201108

16 parts on this diagram · 1 diagram in section
