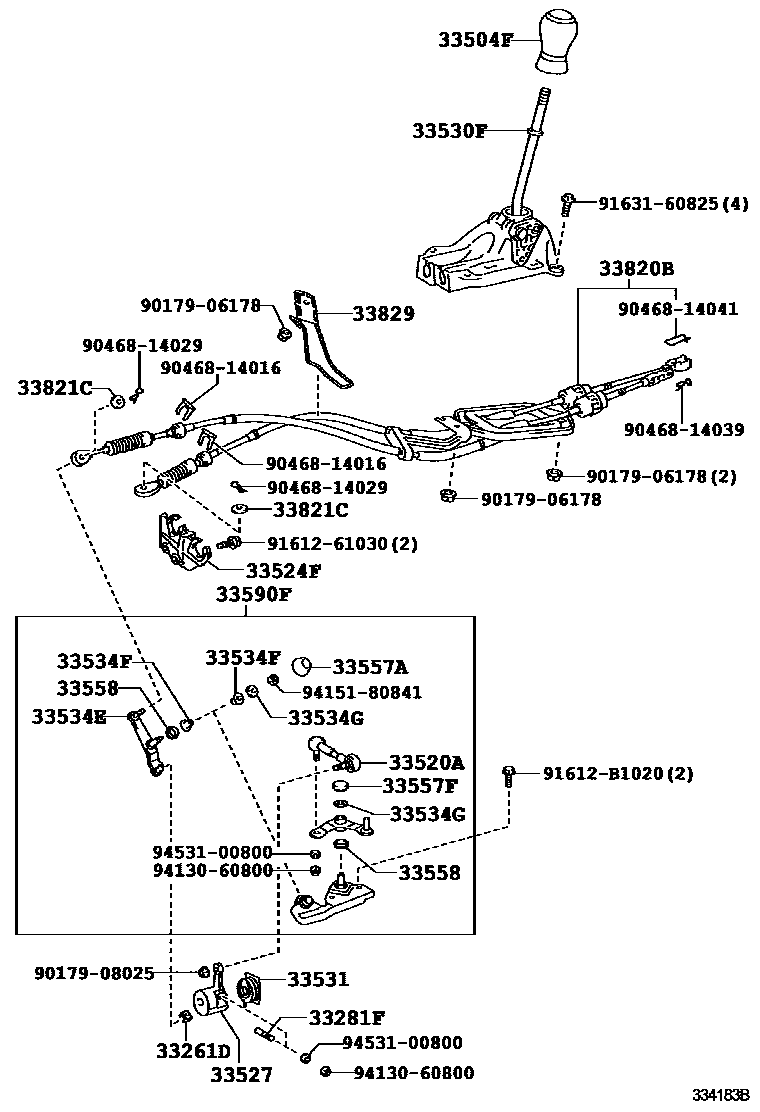

SHIFT LEVER & RETAINER

0001 1 0002 1

33261DBUSH (FOR SHIFT & SELECT LEVER)

main33557-33010iNCP131..5F201108

33281FPIN, LEVER LOCK (FOR FLOOR SHIFT)

main33281-16020iNCP131..5F201108

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12380-C0iNCP131..5F..STD201108-201407

BLACK,TRIM1#

main33504-52160-C0iNCP131..4FC..USA201108-201407

SHIFT LEVER & KNOB-WITH(4-SPEED ATM),LEATHER,BLACK,TRIM1#

main33504-52200-C0iNCP131..5F..RS201108-201407

SHIFT LEVER & KNOB-WITH(5-SPEED MANUAL TRANSAXLE),LEATHER,BLACK,TRIM1#

sub33504-52250

main33504-74011-C0iNCP131..4FC..STD201108-201407

BLACK,TRIM1#

33520ASHAFT ASSY, FLOOR SHIFT CONTROL

main33520-52050iNCP131..5F201108

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-52050iNCP131..5F201108-201407

33527LEVER, CONTROL SHIFT (FOR FLOOR SHIFT)

main33527-52011iNCP131..5F201108

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-52210iNCP131..5F201108

33531BOOT, DUST (FOR CONTROL SHIFT LEVER)

main33531-17010iNCP131..5F201108

33534ECRANK, SELECTING BELL, NO.2

main33534-52020iNCP131..5F201108

33534FBUSH (FOR SELECTING BELLCRANK NO.2)

main90386-12022×2iNCP131..5F201108

33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)

main90201-08028×2iNCP131..5F201108

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-32010iNCP131..5F201108

33557FCOVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)

main33557-20010iNCP131..5F201108

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33558-10030×2iNCP131..5F201108

33590FCRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)

main33590-52030iNCP131..5F201108

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-52440iNCP131..5F201108

main33820-52790iNCP131..4FC201108

33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

main90201-08267×2iNCP131..5F201108

OD=28

33829SUPPORT, TRANSMISSION CONTROL CABLE

main33829-52092iNCP131201108

9017906178

main90179-06178

9017908025

main90179-08025

9046814016

main90468-14016

9046814029

main90468-14029

9046814039

main90468-14039

9046814041

main90468-14041

9161261030

main91612-61030

91612B1020

main91612-B1020

9163160825

main91631-60825

9413060800

main94130-60800

9415180841

main94151-80841

9453100800

main94531-00800

30 parts on this diagram · 2 diagrams in section
