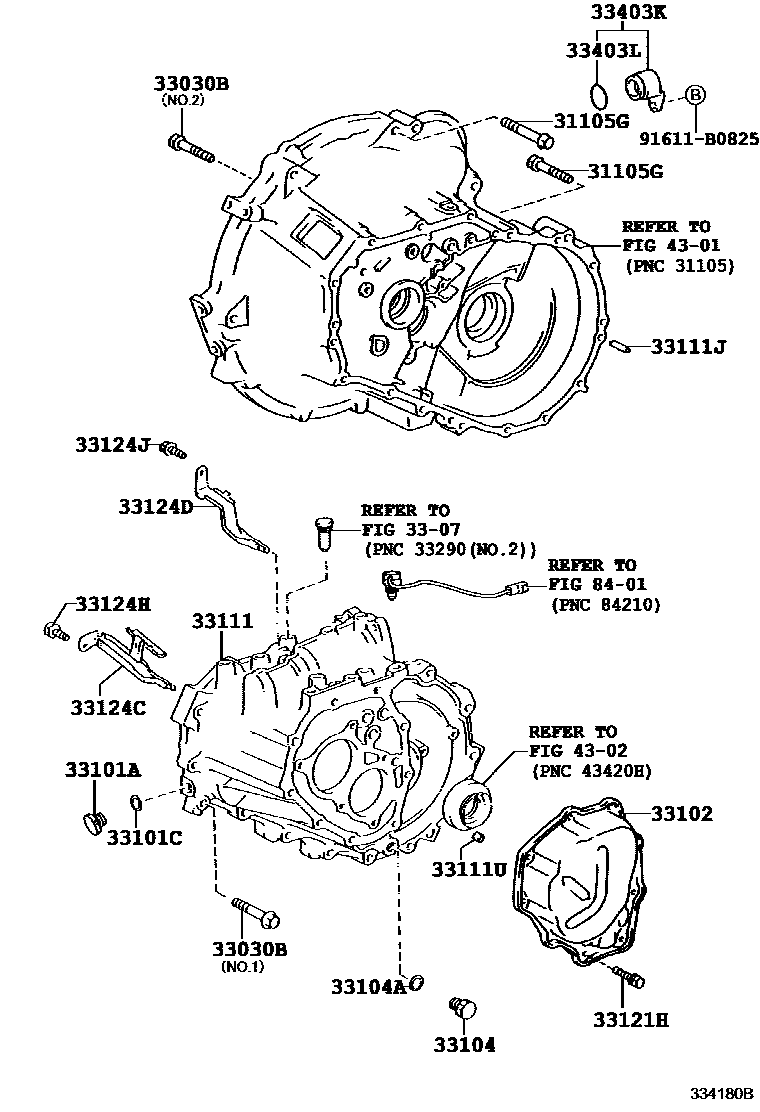

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main91612-61045iNCP131..5F201108-201407

*10-1.25PX45-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08353iNCP131..5F201108-201407

*8-1.25PX50-30,NO.1:REFER ILLUST.

main90105-08430iNCP131..5F201108-201407

*8-1.25PX45-27.5,NO.2:REFER ILLUST.

3307

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18033iNCP131..5F201108-201407

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iNCP131..5F201108-201407

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12021iNCP131..5F201108

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18033iNCP131..5F201108-201407

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iNCP131..5F201108-201407

33111CASE, MANUAL TRANSMISSION

main33111-12260iNCP131..5F201108-201407

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iNCP131..5F201108

L=23,OD=8

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iNCP131..5F201108

L=11,OD=11

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08429iNCP131..5F201108

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-20050iNCP131..5F201108

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12021iNCP131..5F201108-201407

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-G0820iNCP131..5F201108

33124JBOLT, W/WASHER

main91611-G0820iNCP131..5F201108

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-35230iNCP131..5F201108

33403LRING, O

main96711-24030iNCP131..5F201108-201407

4301

4302

8401

91611B0825

main91611-B0825

22 parts on this diagram · 1 diagram in section
