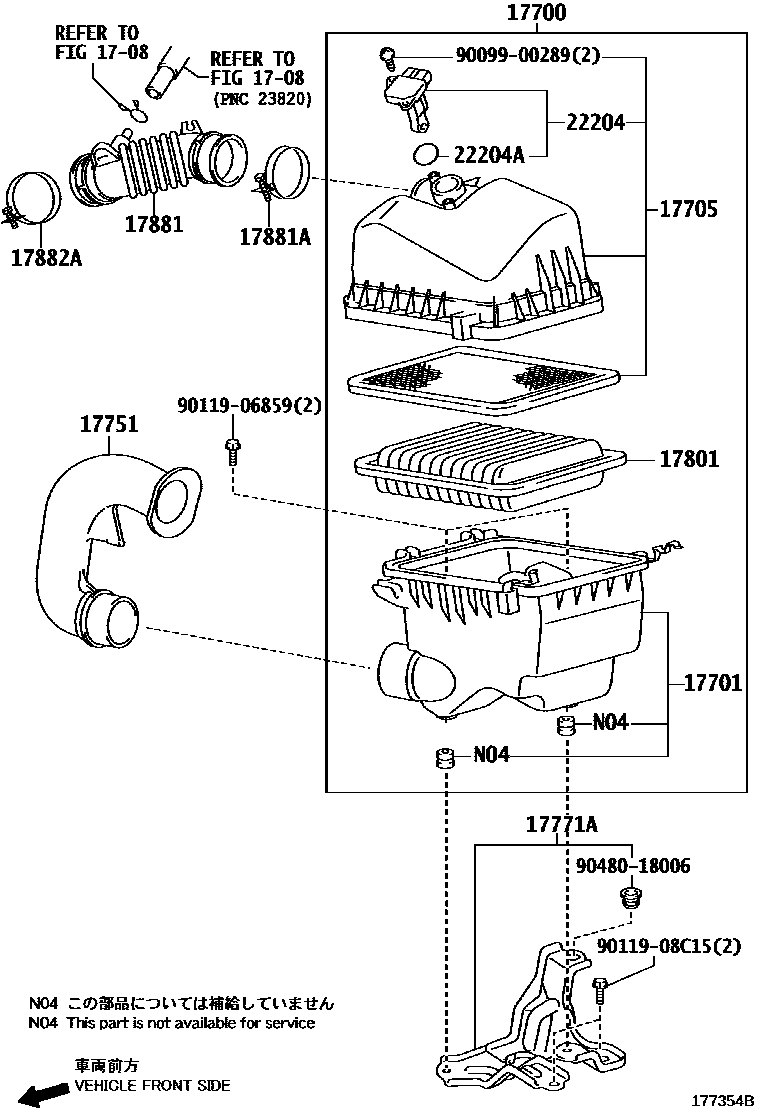

AIR CLEANER

1708

17700CLEANER ASSY, AIR

main17700-21130i1NZFE..NCP131201108-201407

17701CASE SUB-ASSY, AIR CLEANER

main17701-21100i1NZFE..NCP131201108-201407

17705CAP SUB-ASSY, AIR CLEANER

main17705-21100i1NZFE..NCP131201108

17751INLET, AIR CLEANER, NO.1

main17751-21160i1NZFE..NCP131201108

17771ABRACKET, AIR CLEANER

main17771-21050i1NZFE..NCP131201108

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21050i1NZFE..NCP131201108

17881HOSE, AIR CLEANER, NO.1

main17880-21091i1NZFE..NCP131201108

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690i1NZFE..NCP131201108

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10690i1NZFE..NCP131201108

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0C020i1NZFE..NCP131201108

(L)

main22204-22010i1NZFE..NCP131201108

(J)

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i1NZFE..NCP131201108

9009900289

main90099-00289

9011906859

main90119-06859

9011908C15

main90119-08C15

9048018006

main90480-18006

16 parts on this diagram · 1 diagram in section
