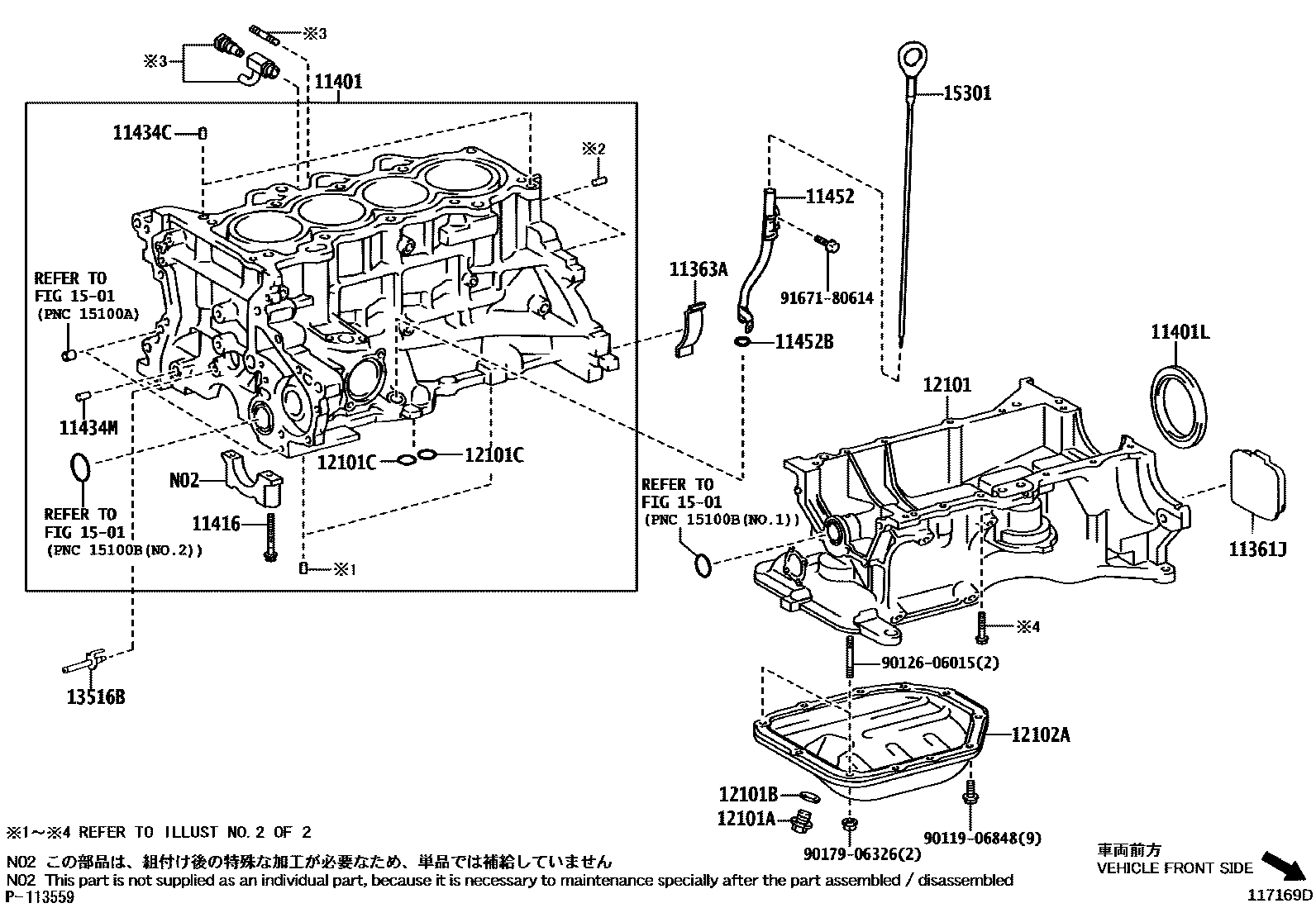

CYLINDER BLOCK

0001 1 0002 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-21011i1NZFE..NCP131¥490201108

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-21010i1NZFE..NCP131¥350201108

11401BLOCK SUB-ASSY, CYLINDER

main11401-29856i1NZFE..NCP131¥182,000201108-201111

sub11401-29857¥182,000

main11401-29857i1NZFE..NCP131¥182,000201111-201204

sub11401-29858¥182,000

sub12315-21044¥3,720

sub12315-21051¥6,000

sub15100-21043¥13,900

sub15100-21053¥23,800

sub91551-80635¥80

sub91551-C0830¥80

main11401-29858i1NZFE..NCP131¥182,000201204

sub11401-80881¥152,000

11401LSEAL, ENGINE REAR OIL

main90311-75016i1NZFE..NCP131¥1,390201108-201201

sub90311-75019¥1,390

main90311-75019i1NZFE..NCP131¥1,390201201

sub90311-75022¥1,390

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02125i1NZFE..NCP131¥220201108-201407

sub90910-02207¥160

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i1NZFE..NCP131¥140201108

L=18,OD=8

11434MPIN, STRAIGHT(FOR CHAIN TENSIONER)

main90250-10030i1NZFE..NCP131¥160201108

11452GUIDE, OIL LEVEL GAGE

main11452-21030i1NZFE..NCP131¥1,300201108

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1NZFE..NCP131¥190201108

12101PAN SUB-ASSY, OIL

main12111-21033i1NZFE..NCP131¥42,200201108

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1NZFE..NCP131¥160201108

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1NZFE..NCP131¥90201108

12101CRING, O(FOR OIL PAN)

main96722-24020i1NZFE..NCP131¥140201108

12102APAN SUB-ASSY, OIL, NO.2

main12102-21010i1NZFE..NCP131¥3,780201108

13516BJET, OIL

main13516-21010i1NZFE..NCP131¥590201108-201312

sub13516-21011¥360

main13516-21011i1NZFE..NCP131¥360201401

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-21040i1NZFE..NCP131¥1,200201108-201203

sub15301-21060¥1,000

main15301-21060i1NZFE..NCP131¥1,000201203

sub15301-21061¥1,000

9011906848

main90119-06848¥60

9012606015

main90126-06015¥110

9017906326

main90179-06326¥60

9167180614

main91671-80614¥60

21 parts on this diagram · 2 diagrams in section
