HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

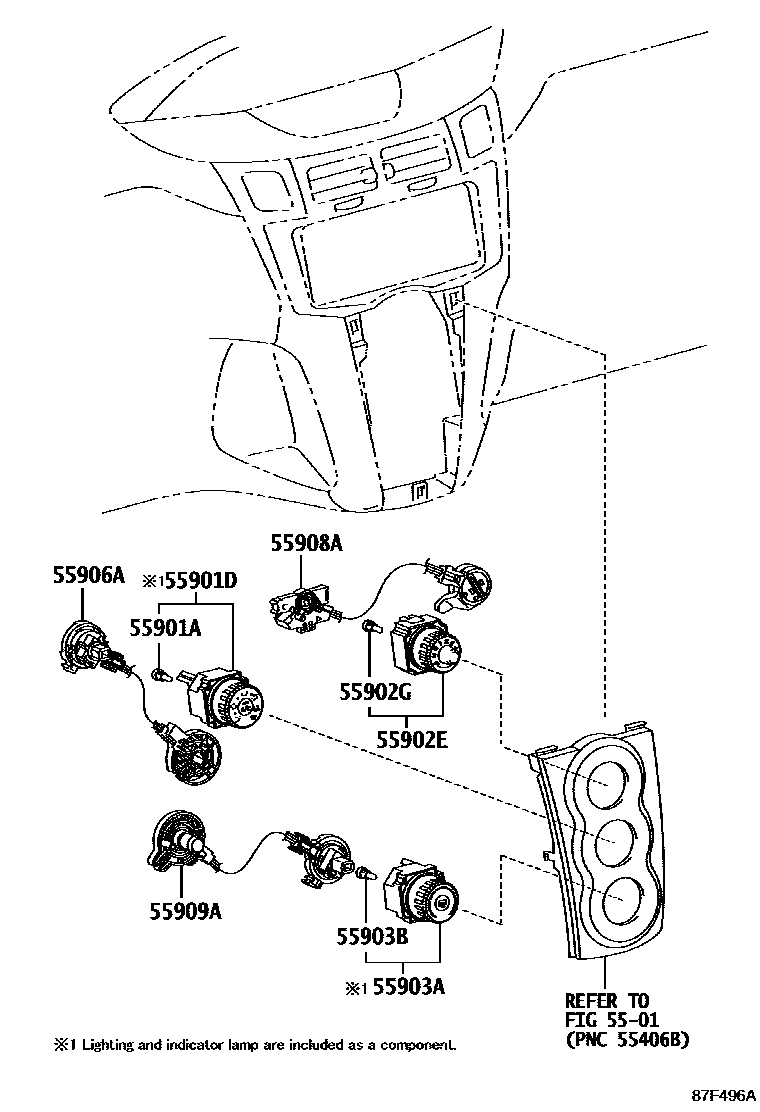

Parts diagram
5501
55901ABULB, HEATER CONTROL SUB-ASSY, NO.1
main90010-01112i200708-200808
SPORTS PACKAGE
main90010-01112i200708-200808
SPORTS PACKAGE&AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)
main90010-01112i200508-201107
main90010-01113i200508-200808
55901DCONTROL SUB-ASSY, HEATER, NO.1
main55901-52100i200508-200808
main55901-52110i200508-200808
AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)
main55901-52110i200508-200808
AIR CONDITIONER-DEALER KIT
main55901-52140i200708-200808
SPORTS PACKAGE&AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)
sub55901-52110
main55901-52140i200508-200808
AIR CONDITIONER-DEALER KIT
sub55901-52110
main55901-52140i200508-200808
AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)
sub55901-52110
main55901-52150i200708-200808
SPORTS PACKAGE
main55901-52150i200508-200708
main55901-52270i201002-201107
AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))
main55901-52270i200808-201002
main55901-52280i200808-201002
AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)
main55901-52280i200808-201107
AIR CONDITIONER-DEALER KIT
main55901-52280i201002-201107
55902ECONTROL SUB-ASSY, HEATER, NO.2
main55902-52020i200508-200808
main55902-52040i200708-200808
SPORTS PACKAGE
sub55902-52020
main55902-52040i200508-200708
sub55902-52020
main55902-52120i200808-201107
55902GBULB, HEATER CONTROL SUB-ASSY, NO.2
main90010-01112i200508-201107
main90010-01112i200708-200808
SPORTS PACKAGE
main90010-01113i200508-200808
55903ACONTROL SUB-ASSY, HEATER, NO.3
main55903-52010i200508-200808
REAR WINDOW DEFOGGER-WITH
sub55903-52040
main55903-52020i200508-200808
COLD SPEC&REAR WINDOW DEFOGGER-WITH
sub55903-52050
main55903-52030i200508-200808
sub55903-52060
main55903-52040i200508-200808
REAR WINDOW DEFOGGER-WITH&AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)
main55903-52040i200508-200808
MEXICO SPEC&AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)
main55903-52050i200508-200808
AIR CONDITIONER-DEALER KIT
main55903-52050i200508-200601
AIR CONDITIONER-L/ UNIT (W/H ONLY)
main55903-52050i200508-200808
AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)
main55903-52050i200508-200808
COLD SPEC&REAR WINDOW DEFOGGER-WITH&AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)
main55903-52060i200508-200808
AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)
main55903-52090i200708-200808
SPORTS PACKAGE&REAR WINDOW DEFOGGER-WITH
main55903-52100i200708-200808
SPORTS PACKAGE&COLD SPEC&REAR WINDOW DEFOGGER-WITH
sub55903-52020
main55903-52100i200508-200708
sub55903-52020
main55903-52110i200508-200808
AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)
main55903-52110i200508-200808
AIR CONDITIONER-DEALER KIT
main55903-52110i200508-200601
AIR CONDITIONER-L/ UNIT (W/H ONLY)
main55903-52110i200708-200808
SPORTS PACKAGE&COLD SPEC&REAR WINDOW DEFOGGER-WITH&AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)
main55903-52280i200808-201002
REAR WINDOW DEFOGGER-WITH
main55903-52290i200808-201002
COLD SPEC&REAR WINDOW DEFOGGER-WITH
main55903-52300i200708-200808
SPORTS PACKAGE
main55903-52310i200708-200808
SPORTS PACKAGE&AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)
main55903-52320i200708-200808
SPORTS PACKAGE&REAR WINDOW DEFOGGER-WITH&AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)
main55903-52350i200808-201002
REAR WINDOW DEFOGGER-WITH&AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)
sub55903-52420
main55903-52350i201002-201107
REAR WINDOW DEFOGGER-WITH
sub55903-52420
main55903-52360i200808-201002
COLD SPEC&REAR WINDOW DEFOGGER-WITH&AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)
sub55903-52400
main55903-52360i201002-201107
COLD SPEC&REAR WINDOW DEFOGGER-WITH
sub55903-52400
main55903-52370i200808-201002
AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)
main55903-52370i201002-201107
main55903-52380i200808-201002
main55903-52400i200808-201002
AIR CONDITIONER-DEALER KIT
main55903-52400i201002-201107
main55903-52400i200808-201002
AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)
main55903-52410i200808-201002
main55903-52410i201002-201107
AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))
main55903-52420i200808-201002
MEXICO SPEC&AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)
main55903-52420i201002-201107
MEXICO SPEC
55903BBULB, HEATER CONTROL SUB-ASSY, NO.3
main90010-01112i200708-200808
SPORTS PACKAGE&COLD SPEC&REAR WINDOW DEFOGGER-WITH&AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)
main90010-01112i200508-201107
main90010-01112i200708-200808
SPORTS PACKAGE
main90010-01112i200708-200808
SPORTS PACKAGE&COLD SPEC&REAR WINDOW DEFOGGER-WITH
main90010-01112i200708-200808
SPORTS PACKAGE&REAR WINDOW DEFOGGER-WITH
main90010-01112i200708-200808
SPORTS PACKAGE&REAR WINDOW DEFOGGER-WITH&AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)
main90010-01112i200708-200808
SPORTS PACKAGE&AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)
main90010-01113i200508-200808
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
main55906-52132i200508-201108
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
main55908-52120i200508-201108
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
main55909-52120i200508-201108

10 parts on this diagram · 3 diagrams in section
