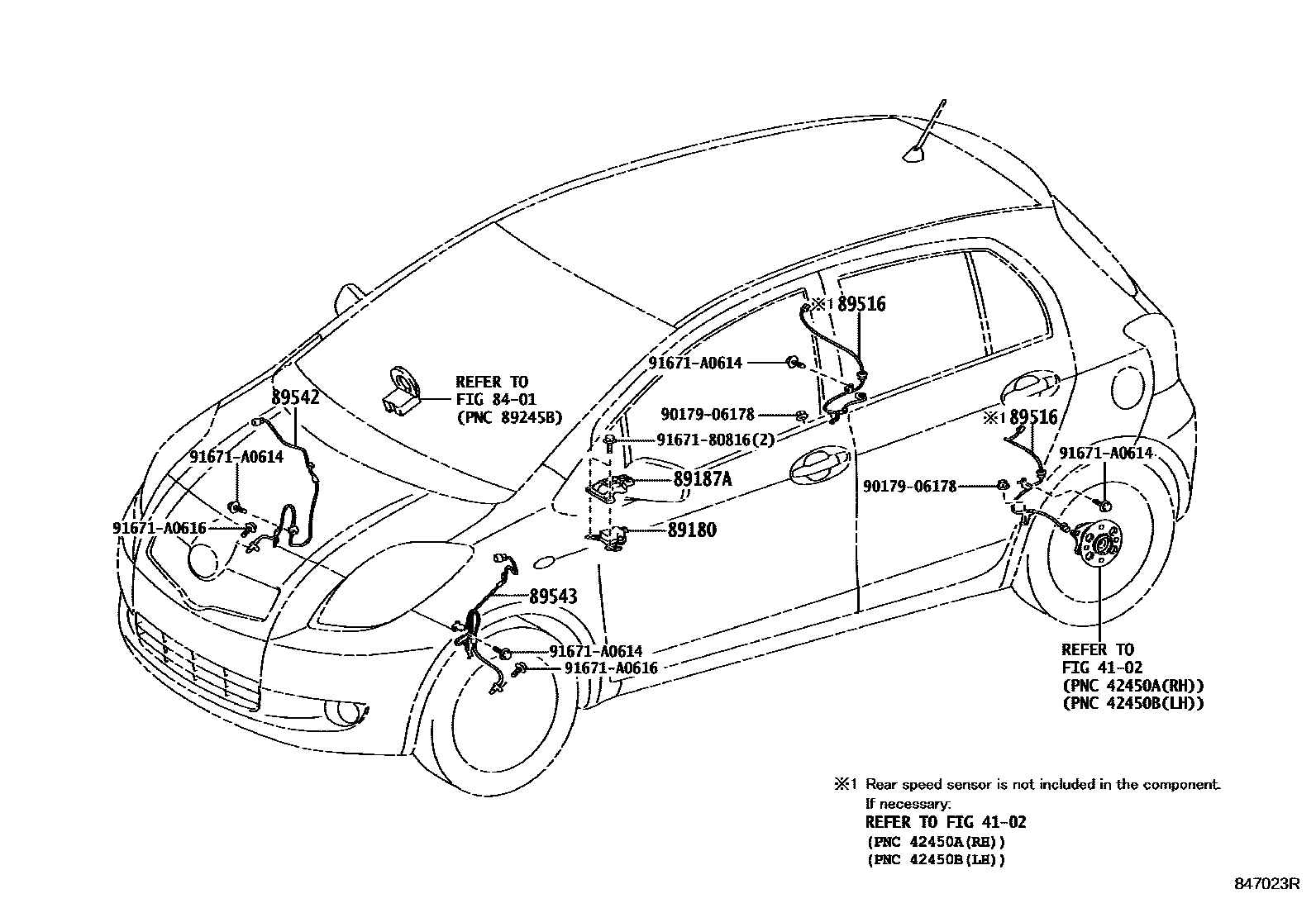

ABS & VSC
4102
8401
89180SENSOR ASSY, YAWRATE
ABS(ANTI-LOCK BRK SYSTM)-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH
89187APROTECTOR, YAWRATE SENSOR
ABS(ANTI-LOCK BRK SYSTM)-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH
89516WIRE, SKID CONTROL SENSOR
ABS-WITH(W/O BRAKE ASSIST),RH
ABS (ANTI-LOCK BRK SYSTM)-WITH(W/O BRAKE ASSIST),RH
RH
LH
ABS-WITH(W/O BRAKE ASSIST),LH
ABS (ANTI-LOCK BRK SYSTM)-WITH(W/O BRAKE ASSIST),LH
RH
LH
89542SENSOR, SPEED, FRONT RH
ABS (ANTI-LOCK BRK SYSTM)-WITH(W/O BRAKE ASSIST)
ABS-WITH(W/O BRAKE ASSIST)
sub89542-52120
89543SENSOR, SPEED, FRONT LH
ABS-WITH(W/O BRAKE ASSIST)
ABS-WITHOUT
ABS (ANTI-LOCK BRK SYSTM)-WITH(W/O BRAKE ASSIST)
ABS (ANTI-LOCK BRK SYSTM)-WITHOUT
PUERTO RICO SPEC
ABS(ANTI-LOCK BRK SYSTM)-WITHOUT
PUERTO RICO SPEC
ABS(ANTI-LOCK BRK SYSTM)-WITHOUT
9017906178
main90179-06178
9167180816
main91671-80816
91671A0614
main91671-A0614
91671A0616
main91671-A0616
11 parts on this diagram · 1 diagram in section
