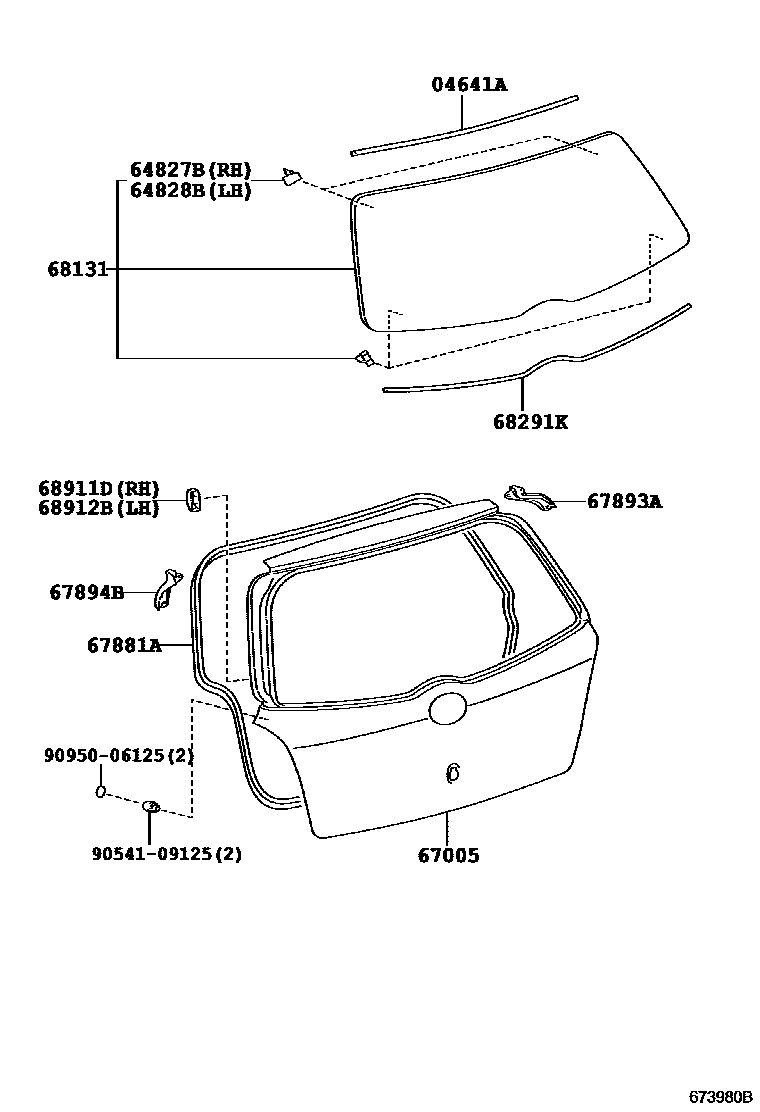

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

04641ADAM KIT, BACK WINDOW GLASS ADHESIVE

main64813-52070iNCP91200508-201107

sub56117-74010

64827BCLIP, BACK WINDOW GLASS, RH

main64827-52070iNCP91200508-201107

64828BCLIP, BACK WINDOW GLASS, LH

main64828-52050iNCP91200508-201107

67005PANEL SUB-ASSY, BACK DOOR

main67005-52720iNCP91..RS200508-200808

sub67005-52A50

main67005-52730iNCP91..STD..CND200508-201108

main67005-52750iNCP91..USA200508-201108

67881AWEATHERSTRIP, BACK DOOR

main67881-52110iNCP91200508-201107

67893APROTECTOR, BACK DOOR PANEL, NO.1

main67893-52040iNCP91200508-201107

67894BPROTECTOR, BACK DOOR PANEL, NO.2

main67894-52040iNCP91200508-201107

68131GLASS, BACK DOOR

main68105-52380iNCP91..USA200508-201107

*UVCEHT,T=3.1,GREEN

main68105-52380iNCP91..USA200508-201107

*UVCEHT,T=3.1,GREEN,REAR WINDOW DEFOGGER-WITH

main68105-52430iNCP91..USA200508-201107

*UVCEHT,T=3.1,GREEN

68291KDAM KIT, BACK WINDOW GLASS

main64814-52040iNCP91200508-201107

sub56117-50140

68911DCOVER, BACK DOOR STAY, RH

main68911-52010iNCP91200508-201107

68912BCOVER, BACK DOOR STAY, LH

main68912-52010iNCP91200508-201107

9054109125

main90541-09125

9095006125

main90950-06125

13 parts on this diagram · 2 diagrams in section
