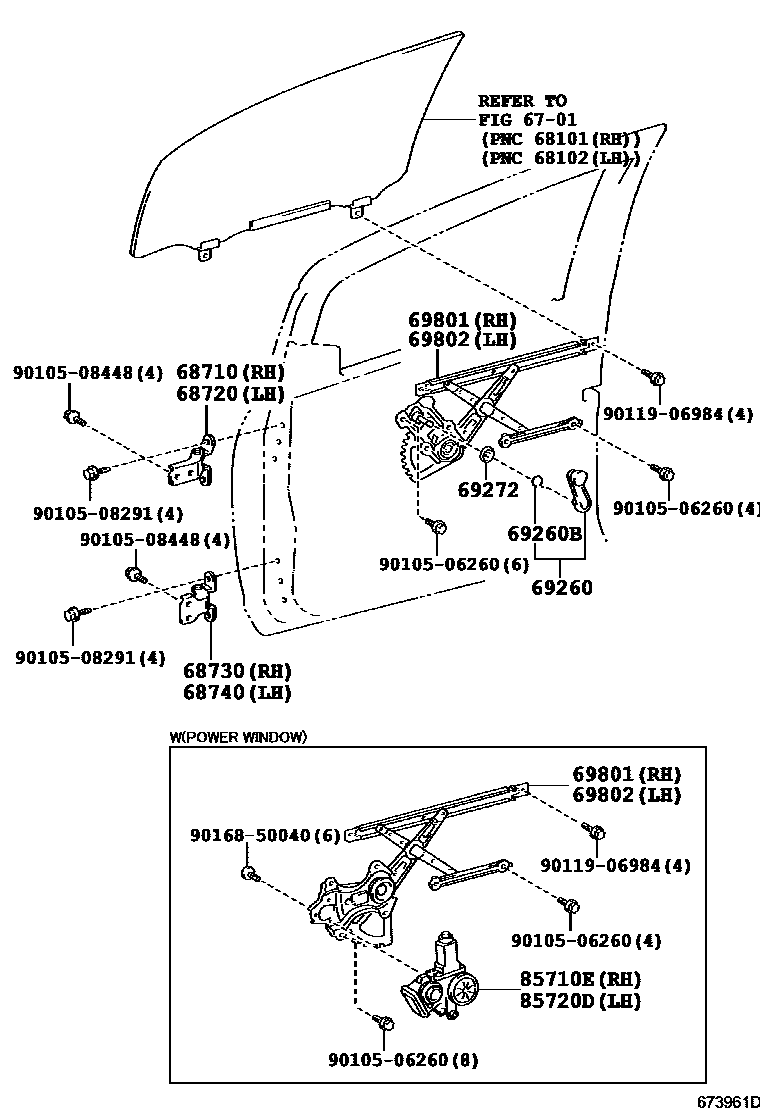

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12150iNCP91200508-200609

sub68710-12151

main68710-12151iNCP91200610-201108

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12150iNCP91200508-200609

sub68720-12151

main68720-12151iNCP91200610-201107

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-33020iNCP91200508-200609

sub68730-33021

main68730-33021iNCP91200610-201107

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-33020iNCP91200508-200609

sub68740-33021

main68740-33021iNCP91200610-201107

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-52070-B0iNCP91..5D200508-201107

DK.GRAY,TRIM1#

main69260-52070-B0iNCP91..5D200508-201107

POWER WINDOW-WITH(FRONT ONLY),DK.GRAY,TRIM1#

main69260-52070-B0iNCP91..5D200508-201107

POWER WINDOW-WITH(FRONT & REAR),DK.GRAY,TRIM1#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274iNCP91200508-201002

POWER WINDOW-WITH(FRONT ONLY)

main90520-01274iNCP91200508-201002

POWER WINDOW-WITH(FRONT & REAR)

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-12020iNCP91..5D200508-200609

POWER WINDOW-WITH(FRONT & REAR)

main69268-12020iNCP91200508-200609

POWER WINDOW-WITH(FRONT ONLY)

main69268-52010iNCP91..3D200610-201002

POWER WINDOW-WITH(FRONT ONLY)

main69268-52010iNCP91..RS200610-201002

POWER WINDOW-WITH(FRONT & REAR)

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-52120iNCP91..5D..STD200508-201107

POWER WINDOW-WITH(FRONT & REAR)

main69801-52120iNCP91..3D..RS200508-201107

POWER WINDOW-WITH(FRONT ONLY)

main69801-52120iNCP91..RS201002-201107

main69810-52340iNCP91200508-201107

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-52110iNCP91..RS201002-201107

main69802-52110iNCP91..5D200508-201107

POWER WINDOW-WITH(FRONT ONLY)

main69802-52110iNCP91..5D200508-201107

POWER WINDOW-WITH(FRONT & REAR)

main69820-52270iNCP91200508-201107

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-35180iNCP91..5D..STD200508-201107

POWER WINDOW-WITH(FRONT ONLY)

main85710-35180iNCP91..3D200508-201107

POWER WINDOW-WITH(FRONT & REAR)

main85710-35180iNCP91..RS201002-201107

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-35140iNCP91..3D200508-201107

POWER WINDOW-WITH(FRONT ONLY)

main85720-35140iNCP91..3D200508-201107

POWER WINDOW-WITH(FRONT & REAR)

main85720-35140iNCP91..RS201002-201107

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9011906984

main90119-06984

9016850040

main90168-50040

17 parts on this diagram · 1 diagram in section
