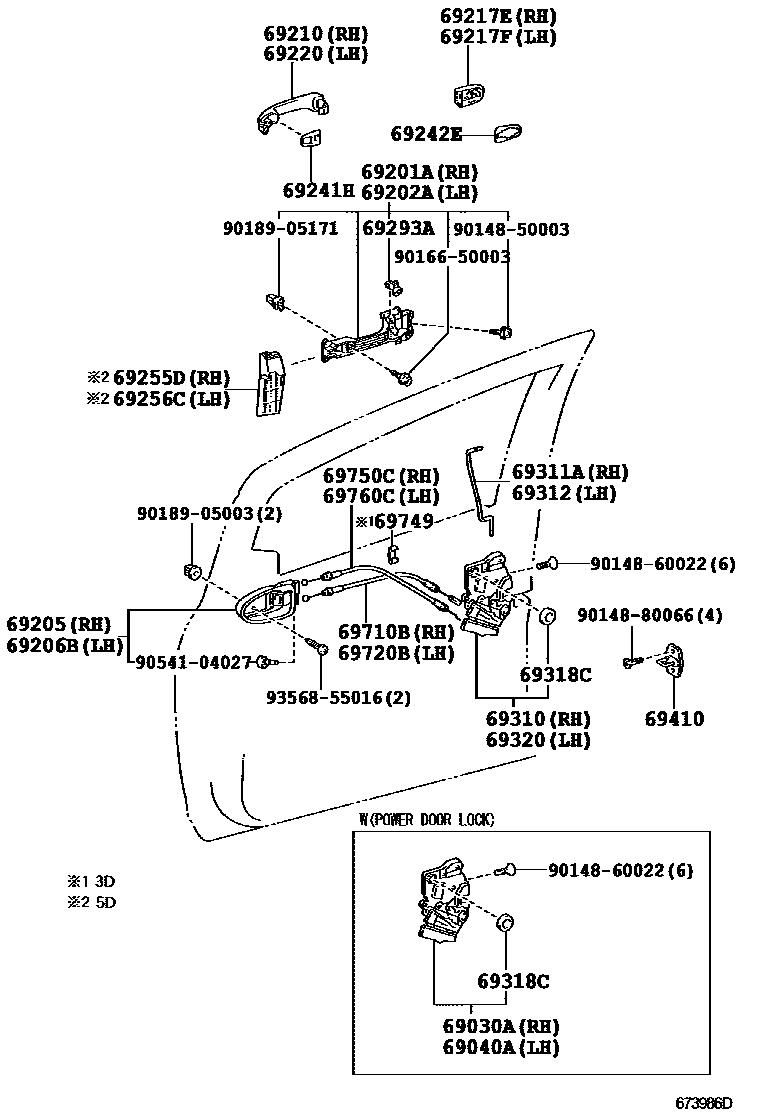

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
POWER DOOR LOCK-W(DRIVER+PASSENGER:TWO-TURN & P-SWITCH)
POWER DOOR LOCK-WITH D+P TWO-TURN W/P-SW
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
POWER DOOR LOCK-WITH D+P TWO-TURN W/P-SW
POWER DOOR LOCK-W(DRIVER+PASSENGER:TWO-TURN & P-SWITCH)
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
MEXICO SPEC&PREMIUM PACKAGE,DK.GRAY,TRIM1#
MEXICO SPEC&PREMIUM,DK.GRAY,TRIM1#
SPORT PACKAGE,DK.GRAY,TRIM1#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
MEXICO SPEC&PREMIUM PACKAGE,DK.GRAY,TRIM1#
MEXICO SPEC&PREMIUM,DK.GRAY,TRIM1#
SPORT PACKAGE,DK.GRAY,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
MEXICO SPEC&PREMIUM&WIRELESS DOOR LOCK-WITH,SUPER WHITE 2,068
sub69211-12903
sub69211-12220
sub69211-52090
MEXICO SPEC&PREMIUM&WIRELESS DOOR LOCK-WITH,DK.GREEN M.M.,6S3
sub69211-12903
sub69211-12220
sub69211-52090
MEXICO SPEC&PREMIUM&WIRELESS DOOR LOCK-WITH,DK.BLUE M.M.,8P4
sub69211-12903
sub69211-12220
sub69211-52090
MEXICO SPEC&PREMIUM&WIRELESS DOOR LOCK-WITH,ORANGE M.M.,4S9
sub69211-12903
sub69211-12220
sub69211-52090
MEXICO SPEC&PREMIUM&WIRELESS DOOR LOCK-WITH,SILVER M.M.,1E7
sub69211-12903
sub69211-12220
sub69211-52090
MEXICO SPEC&PREMIUM&WIRELESS DOOR LOCK-WITH,MEDIUM SILVER ME.,1F8
sub69211-12903
sub69211-12220
sub69211-52090
MEXICO SPEC&PREMIUM&WIRELESS DOOR LOCK-WITH,GRAYISH BLUE M.M.,8T1
sub69211-12903
sub69211-12220
sub69211-52090
MEXICO SPEC&PREMIUM&WIRELESS DOOR LOCK-WITH,DK.BLUE MC.,8P4
sub69211-12903
sub69211-12220
sub69211-52090
MEXICO SPEC&PREMIUM&WIRELESS DOOR LOCK-WITH,SUPER RED 5,3P0
sub69211-12903
sub69211-12220
sub69211-52090
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
MEXICO SPEC&PREMIUM&WIRELESS DOOR LOCK-WITH,SUPER WHITE 2,068
sub69211-12903
sub69211-12220
sub69211-52090
MEXICO SPEC&PREMIUM&WIRELESS DOOR LOCK-WITH,DK.GREEN M.M.,6S3
sub69211-12903
sub69211-12220
sub69211-52090
MEXICO SPEC&PREMIUM&WIRELESS DOOR LOCK-WITH,DK.BLUE M.M.,8P4
sub69211-12903
sub69211-12220
sub69211-52090
MEXICO SPEC&PREMIUM&WIRELESS DOOR LOCK-WITH,ORANGE M.M.,4S9
sub69211-12903
sub69211-12220
sub69211-52090
MEXICO SPEC&PREMIUM&WIRELESS DOOR LOCK-WITH,SILVER M.M.,1E7
sub69211-12903
sub69211-12220
sub69211-52090
MEXICO SPEC&PREMIUM&WIRELESS DOOR LOCK-WITH,MEDIUM SILVER ME.,1F8
sub69211-12903
sub69211-12220
sub69211-52090
MEXICO SPEC&PREMIUM&WIRELESS DOOR LOCK-WITH,GRAYISH BLUE M.M.,8T1
sub69211-12903
sub69211-12220
sub69211-52090
MEXICO SPEC&PREMIUM&WIRELESS DOOR LOCK-WITH,DK.BLUE MC.,8P4
sub69211-12903
sub69211-12220
sub69211-52090
MEXICO SPEC&PREMIUM&WIRELESS DOOR LOCK-WITH,SUPER RED 5,3P0
sub69211-12903
sub69211-12220
sub69211-52090
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69255DPROTECTOR, DOOR OUTSIDE HANDLE
69256CPROTECTOR, DOOR OUTSIDE HANDLE, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9016650003
main90166-50003
9018905003
main90189-05003
9018905171
main90189-05171
9054104027
main90541-04027
9356855016
main93568-55016
34 parts on this diagram · 1 diagram in section
