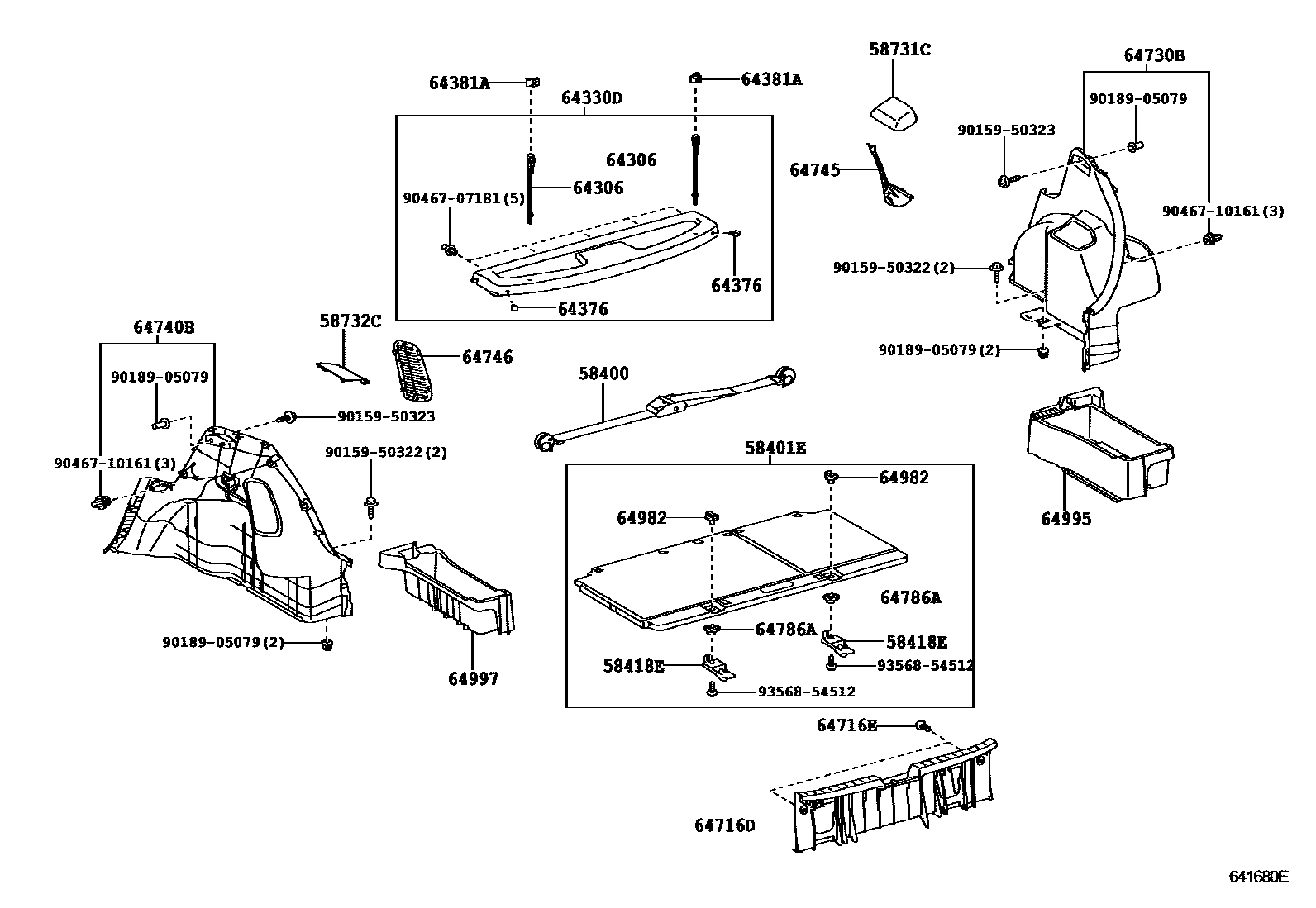

DECK BOARD & DECK TRIM COVER

58400BELT ASSY, LUGGAGE HOLD, NO.1

main58400-52010iNCP91..CND;NCP91..3D..USA200508-200808

58401EBOARD SUB-ASSY, DECK

main58410-52010-B1iNCP91200508-201107

DK.GRAY,TRIM1#

58418EBOARD, REAR FLOOR, NO.4

main58418-52011iNCP91200508-201107

58731CCAP, REAR ABSORBER

main58731-52050-B0iNCP91200508-201012

DK.GRAY,TRIM1#

sub58731-52050

main58731-52050-C0iNCP91201012-201107

BLACK,TRIM1#

sub58731-52050

58732CCAP, REAR ABSORBER

main58732-52030-B0iNCP91200508-201012

DK.GRAY,TRIM1#

sub58732-52030

main58732-52030-C0iNCP91201012-201107

BLACK,TRIM1#

sub58732-52030

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-52020iNCP91200508-200808

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-52190-C0iNCP91200508-201107

BLACK,TRIM1#

64376SPACER, PACKAGE TRAY TRIM, NO.2

main64376-12020iNCP91200508-200808

64381AHANGER, PACKAGE TRAY TRIM

main64381-52010iNCP91200508-200808

64716DCOVER, DECK TRIM, REAR

main64716-52120-B0iNCP91200508-201107

DK.GRAY,TRIM1#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-08186-B4iNCP91200508-201107

DK.GRAY,TRIM1#

sub90467-08186

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-52310-B0iNCP91..5D..RS200508-200808

DK.GRAY,TRIM1#

main64730-52311-B0iNCP91..5D..RS;NCP91..5D..USA200808-201107

DK.GRAY,TRIM1#

main64730-52340-B0iNCP91..5D..STD200508-200808

DK.GRAY,TRIM1#

main64730-52341-B0iNCP91..5D..STD..CND200808-201107

DK.GRAY,TRIM1#

main64730-52350-B0iNCP91..3D200508-201107

DK.GRAY,TRIM1#

64740BBOARD, DECK TRIM SIDE, LH

main64740-52370-B0iNCP91..5D..RS200508-200808

DK.GRAY,TRIM1#

main64740-52371-B0iNCP91..5D..RS;NCP91..5D..USA200808-201107

DK.GRAY,TRIM1#

main64740-52390-B0iNCP91..5D..STD200508-200808

DK.GRAY,TRIM1#

main64740-52391-B0iNCP91..5D..STD..CND200808-201107

DK.GRAY,TRIM1#

main64740-52420-B0iNCP91..3D200508-201107

DK.GRAY,TRIM1#

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-52070-B0iNCP91200508-201107

DK.GRAY,TRIM1#

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-52100-B0iNCP91200508-201107

DK.GRAY,TRIM1#

64786APLATE, JACK COVER

main64786-20010iNCP91200508-201107

64982KNOB, COVER

main64982-13010-C0iNCP91200508-201107

BLACK,TRIM1#

sub64982-13010

64995BOX, DECK FLOOR, RH

main64995-52050iNCP91200508-201107

64997BOX, DECK FLOOR, LH

main64997-52030iNCP91200508-201107

9015950322

main90159-50322

9015950323

main90159-50323

9018905079

main90189-05079

9046707181

main90467-07181

9046710161

main90467-10161

9356854512

main93568-54512

25 parts on this diagram · 1 diagram in section
