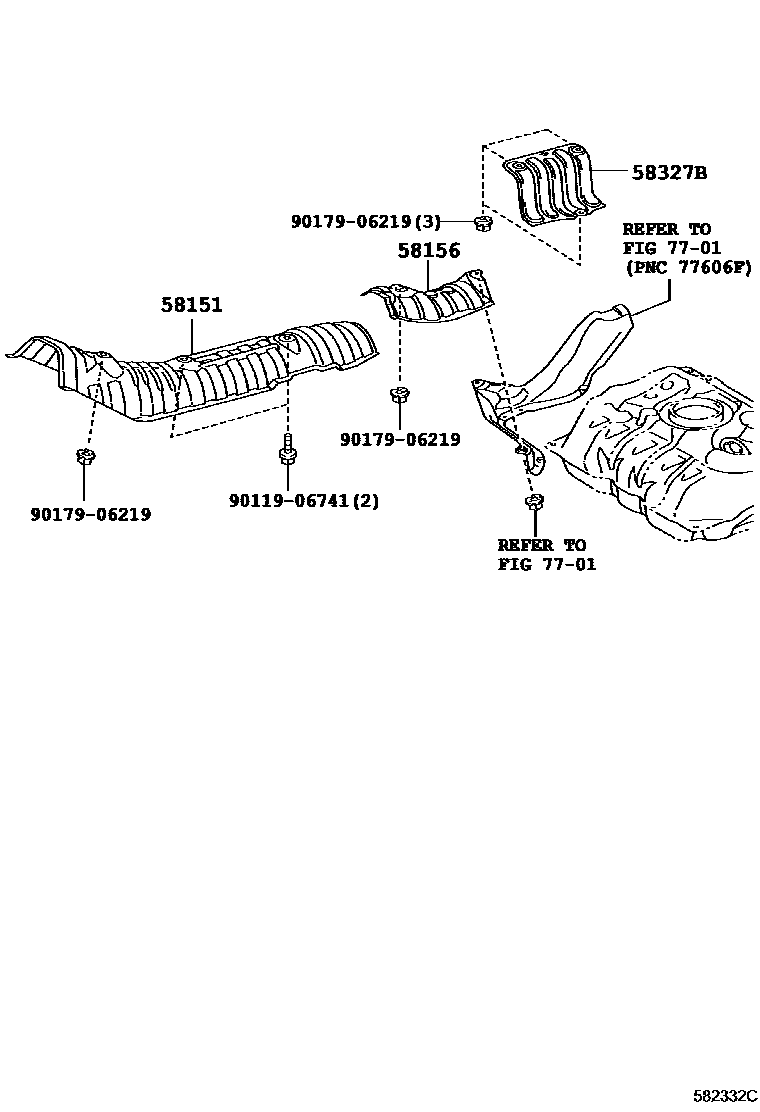

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-52060iNCP91200508-200605

sub58151-52090

main58151-52061iNCP91200606-200910

sub58151-52062

main58151-52062iNCP91200911-201107

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-52010iNCP91200508-201107

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-52120iNCP91200508-200911

sub58327-52121

main58327-52121iNCP91200912-201107

7701

9011906741

main90119-06741

9017906219

main90179-06219

6 parts on this diagram · 1 diagram in section
