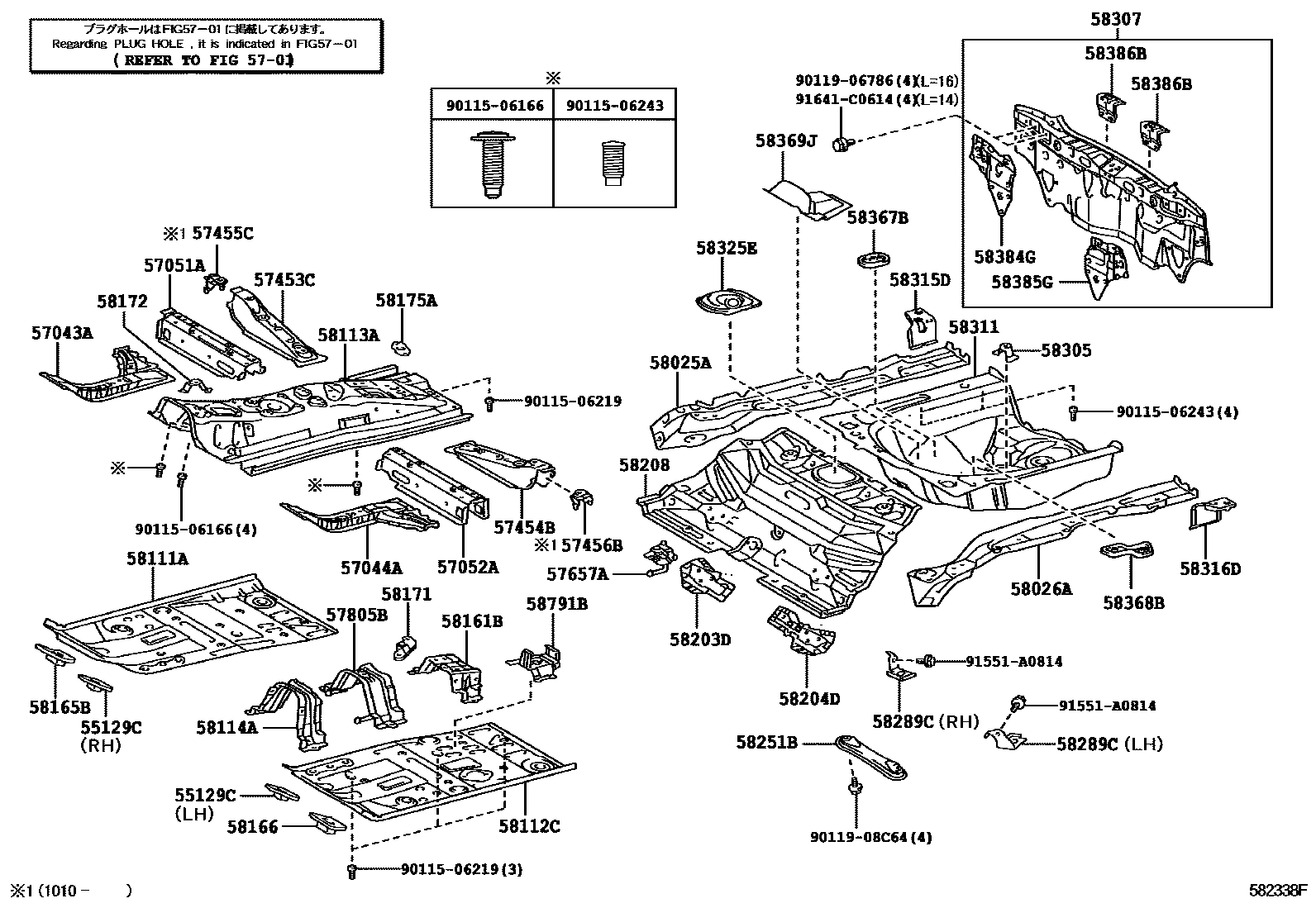

FLOOR PAN & LOWER BACK PANEL

55129CCOVER, DASH PANEL HOLE

main55129-52050iNCP91200508-200708

RH

main55129-52051iNCP91200912-201107

RH

main55139-52020iNCP91200708-200808

LH

main55139-52021iNCP91200912-201107

LH

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-52020iNCP91200508-200708

main57043-52021iNCP91201009-201107

sub57043-52022

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-52040iNCP91200508-200708

main57044-52041iNCP91201009-201107

sub57044-52042

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-52010iNCP91200708-200808

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-52010iNCP91200508-200708

57453CMEMBER, FRONT FLOOR CROSS SIDE, RH

main57453-52020iNCP91200508-200708

main57453-52021iNCP91201010-201107

sub57453-52022

57454BMEMBER, FRONT FLOOR CROSS SIDE, LH

main57454-52010iNCP91200508-200708

main57454-52011iNCP91201010-201107

sub57454-52012

57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH

main57455-52040iNCP91201010-201107

57456BBRACKET, FRONT SEAT MOUNTING, OUTSIDE LH

main57456-52040iNCP91201010-201107

57657ABRACKET, EXHAUST PIPE MOUNTING, NO.2

main51904-52010iNCP91200508-200708

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-52130iNCP91200708-200808

main57805-52131iNCP91201010-201107

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-52010iNCP91200708-200808

main58025-52060iNCP91201011-201107

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-52010iNCP91200808-201011

main58026-52090iNCP91201011-201107

58111APAN, FRONT FLOOR, RH

main58111-52160iNCP91200508-200708

sub58111-52270

58112CPAN, FRONT FLOOR, LH

main58112-52901iNCP91200508-200708

sub58112-52918

58113APANEL, FRONT FLOOR, CENTER

main58113-52901iNCP91200808-201107

sub58113-52917

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-52070iNCP91200508-200708

main58114-52071iNCP91201010-201107

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-52070iNCP91201010-201107

main58161-52090iNCP91200708-200808

58165BCOVER, FRONT FLOOR, RH

main58165-52010iNCP91200508-200708

main58165-52011iNCP91200912-201107

58166COVER, FRONT FLOOR, LH

main58166-52010iNCP91200508-200708

main58166-52011iNCP91200912-201107

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-52090iNCP91200508-200708

58172BRACKET, COMPUTER MOUNTING, NO.3

main58172-52020iNCP91200508-200708

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-52020iNCP91200508-200708

58203DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH

main58203-52060iNCP91200808-201107

58204DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH

main58204-52060iNCP91200508-200708

main58204-52061iNCP91201008-201107

58208PAN, CENTER FLOOR

main58211-52220iNCP91200708-200808

main58211-52160iNCP91..RS;NCP91..USA200508-200708

REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN

58251BBRACE, FLOOR PANEL, FRONT

main58251-52020×2iNCP91200708-200808

58289CBRACKET, FLOOR BRAKE HOSE, REAR

main58289-52030iNCP91200808-201009

RH

main58289-52080iNCP91201010-201107

RH

main58299-52060iNCP91200708-200808

LH

main58299-52100iNCP91201010-201107

LH

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-52070iNCP91200508-200708

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-52430iNCP91200708-200808

58311PAN, REAR FLOOR

main58311-52140iNCP91200508-200708

sub58311-52141

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-52160iNCP91200508-200708

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-52180iNCP91200508-200708

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-52050iNCP91200508-200708

58367BBRACKET, FUEL TUBE

main58367-52040iNCP91..CND;NCP91..3D..USA200508-200708

58368BBRACKET, FUEL TUBE, NO.2

main58368-52020iNCP91..CND;NCP91..3D..USA200508-200708

58369JBRACKET, REAR FLOOR BRACE

main58369-52010iNCP91..CND;NCP91..3D..USA200508-200708

58384GGUSSET, LOWER BACK, UPPER RH

main58384-52080iNCP91200508-200708

58385GGUSSET, LOWER BACK, UPPER LH

main58385-52060iNCP91200508-200708

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-52040×2iNCP91200508-200708

58791BCARRIER, JACK

main58791-52060iNCP91200508-200708

9011506166

main90115-06166

9011506219

main90115-06219

9011506243

main90115-06243

9011906786

main90119-06786

9011908C64

main90119-08C64

91551A0814

main91551-A0814

91641C0614

main91641-C0614

49 parts on this diagram · 1 diagram in section
