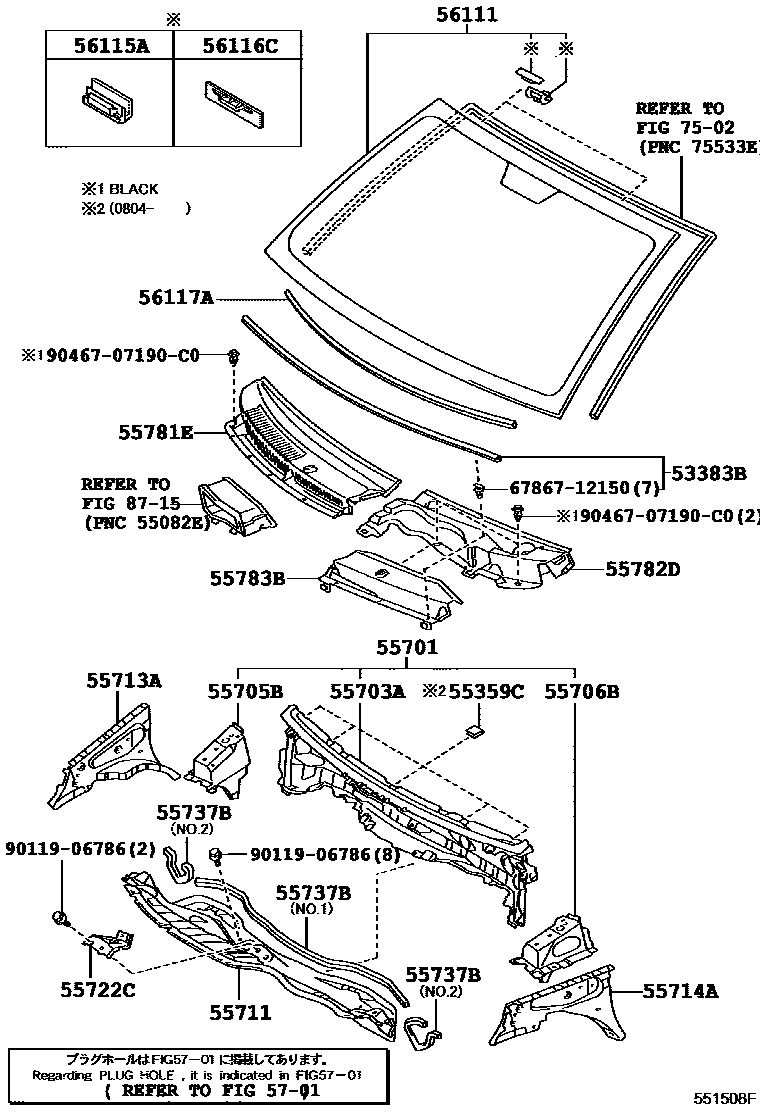

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-52050iNCP91200508-201107

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-52160iNCP91200804-200807

main55359-52170iNCP91200808-201108

55701PANEL SUB-ASSY, COWL

main55700-52200iNCP91200508-201107

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-52180iNCP91200508-201107

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-52090iNCP91200508-201107

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-52090iNCP91200508-201107

55711PANEL, COWL TOP, OUTER

main55701-52170iNCP91200508-201107

55713APANEL, COWL TOP SIDE, RH

main55713-52090iNCP91200508-201107

55714APANEL, COWL TOP SIDE, LH

main55714-52090iNCP91200508-201107

55722CBRACE, COWL TOP TO COWL, INNER

main55722-52030iNCP91200508-201107

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-52010iNCP91200508-201107

NO.1

main55737-52050iNCP91200508-201107

NO.2

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-52050iNCP91..USA200508-201107

MEXICO SPEC

main55708-52060iNCP91..CND200508-200610

COLD SPEC

main55708-52170iNCP91..CND200610-201107

COLD SPEC

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-52050iNCP91200508-201107

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-52180iNCP91200508-200808

56111GLASS, WINDSHIELD

main56101-52260iNCP91200508-200702

*LAM,T=4.56,GREEN

sub56101-52490

main56101-52490iNCP91200703-200908

*LAM,T=4.56,GREEN

sub56101-52491

main56101-52491iNCP91200909-200911

*LAM,T=4.56,GREEN

sub56101-52500

main56101-52924iNCP91200911-201107

*LAM,T=4.56,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNCP91200508-201107

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNCP91200508-201107

56117ADAM, WINDOW GLASS ADHESIVE

main56117-52130iNCP91200508-201107

L=1010

sub56117-50140

5701

7502

8715

6786712150CLIP, DOOR WEATHERSTRIP

main67867-12150

9011906786

main90119-06786

9046707190C0

main90467-07190C0

24 parts on this diagram · 2 diagrams in section
