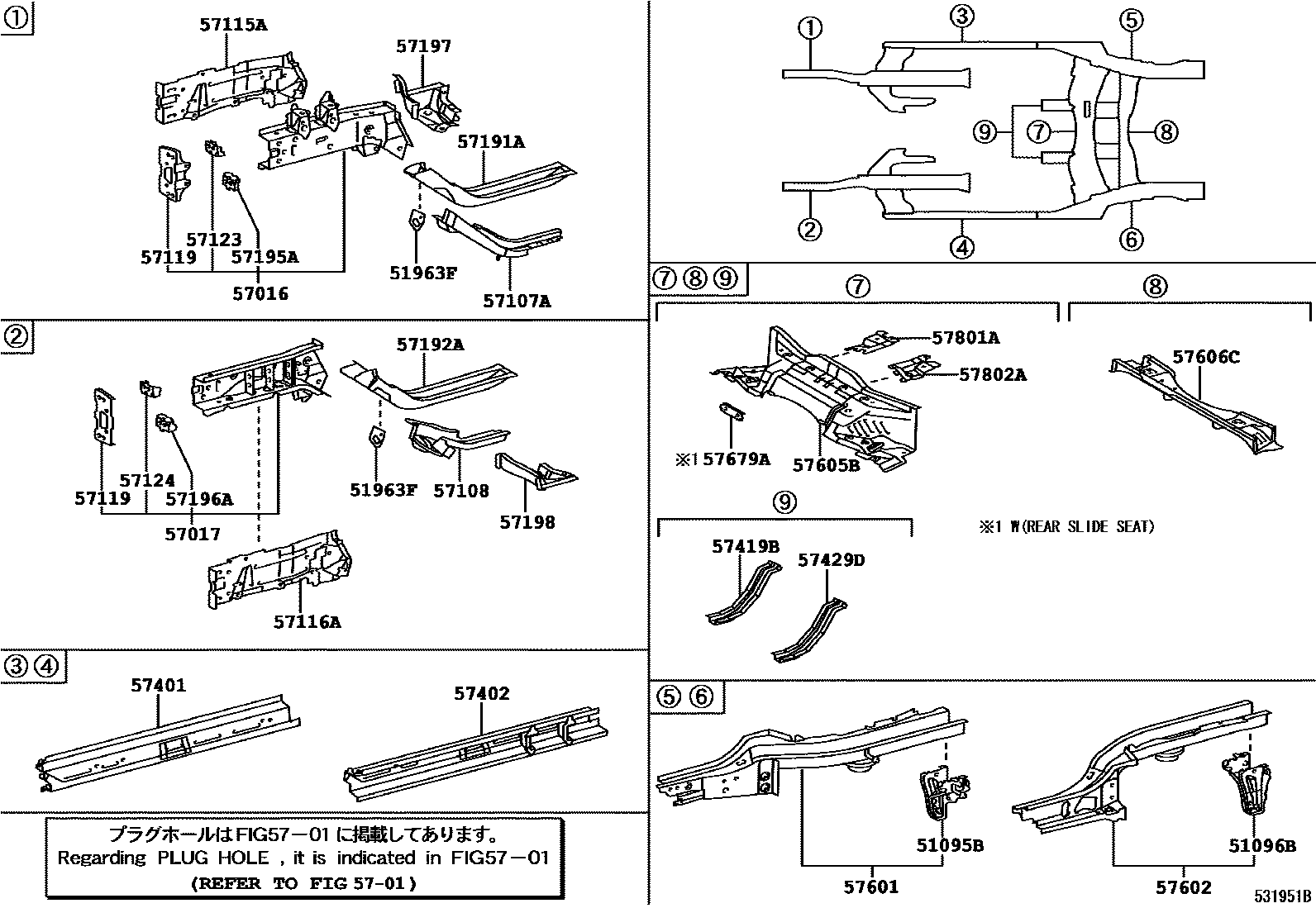

FLOOR SIDE MEMBER

51095BHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-52020iNCP91200508-201107

51096BHOOK SUB-ASSY, TRANSPORT, REAR LH

main51096-52010iNCP91200508-201107

51963FHOOK, TRANSPORT

main51963-52050iNCP91200508-201107

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-52070iNCP91200508-201107

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-52060iNCP91200508-201107

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-52030iNCP91200508-201107

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-52030iNCP91200508-201107

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57025-52010iNCP91200508-201107

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57026-52010iNCP91200508-201107

57119PLATE, FRONT SIDE MEMBER, FRONT

main57119-52020iNCP91200508-201107

RH

main57129-52010iNCP91200508-201107

LH

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-52010iNCP91200508-201107

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-52010iNCP91200508-201107

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-52020iNCP91200508-201107

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-52020iNCP91200508-201107

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-52020iNCP91200508-201107

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-52010iNCP91200508-201107

57197BOX, TORQUE, FRONT RH

main57197-52030iNCP91200508-201107

57198BOX, TORQUE, FRONT LH

main57198-52030iNCP91200508-201107

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-52150iNCP91200508-201012

sub57401-52200

main57401-52200iNCP91201012-201107

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-52170iNCP91200508-201012

sub57402-52220

main57402-52220iNCP91201012-201107

57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR

main57419-52070iNCP91200508-201107

57429DREINFORCEMENT, FRONT FLOOR UNDER, REAR LH

main57429-52080iNCP91200508-201107

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-52230iNCP91200508-201107

sub57601-52400

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-52280iNCP91200508-201107

sub57602-52470

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-52110iNCP91200508-201107

sub57605-52111

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-52170iNCP91200508-201107

sub57606-52171

57679ARETAINER, REAR FLOOR CROSSMEMBER

57801AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH

main57801-52100iNCP91200508-201107

57802AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH

main57802-52100iNCP91200508-201107

30 parts on this diagram · 1 diagram in section
