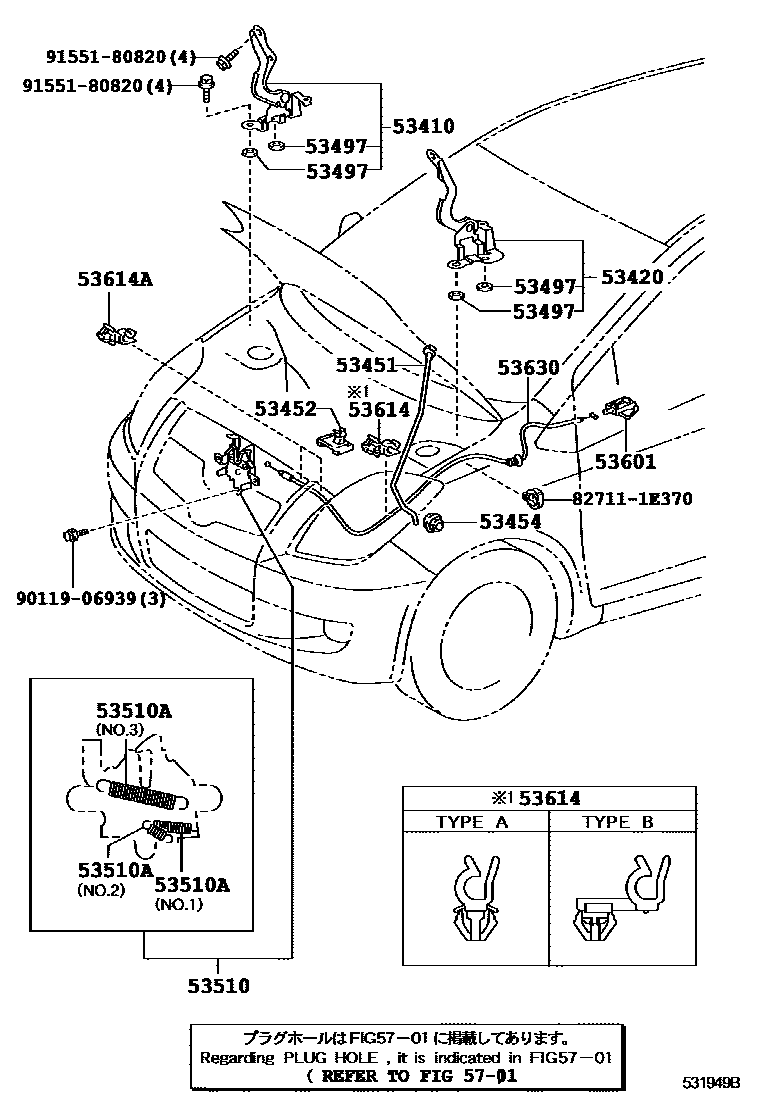

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-52180iNCP91200508-201107

53420HINGE ASSY, HOOD, LH

main53420-52180iNCP91200508-201107

53451ROD, HOOD SUPPORT

main53440-52140iNCP91200508-201107

53452HOLDER, HOOD STAY

main53452-52010iNCP91200508-201107

53454CLIP, HOOD SUPPORT ROD

main53454-52020iNCP91200508-201107

53497PAD, HOOD HINGE, NO.1

main53497-42010iNCP91200508-201107

T=0.5

53510LOCK ASSY, HOOD

main53510-52300iNCP91..USA200508-200708

MEXICO SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main53510-52300iNCP91..3D..5F..RS;NCP91..5D..STD..CND200708-201107

MEXICO SPEC

main53510-52330iNCP91..USA200508-201107

COLD SPEC

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iNCP91200508-201107

WD=0.9,CW=21,NO.1

main90506-12063iNCP91200508-201107

WD=1.2,CW=8.5,NO.2

main90506-14085iNCP91200508-201107

WD=1.4,CW=12,NO.3

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B3iNCP91200508-201012

DK.GRAY,TRIM1#

sub53601-52010

main53601-52010-C0iNCP91201012-201107

BLACK,TRIM1#

sub53601-52010

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-52010iNCP91200508-201107

TYPE A:REFER ILLUST.

main53614-52020iNCP91200706-201107

TYPE B:REFER ILLUST.

53614ACLAMP, HOOD LOCK CONTROL CABLE, NO.1

main53614-52010iNCP91200508-201107

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52110iNCP91200508-201107

5701

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

9011906939

main90119-06939

9155180820

main91551-80820

16 parts on this diagram · 1 diagram in section
