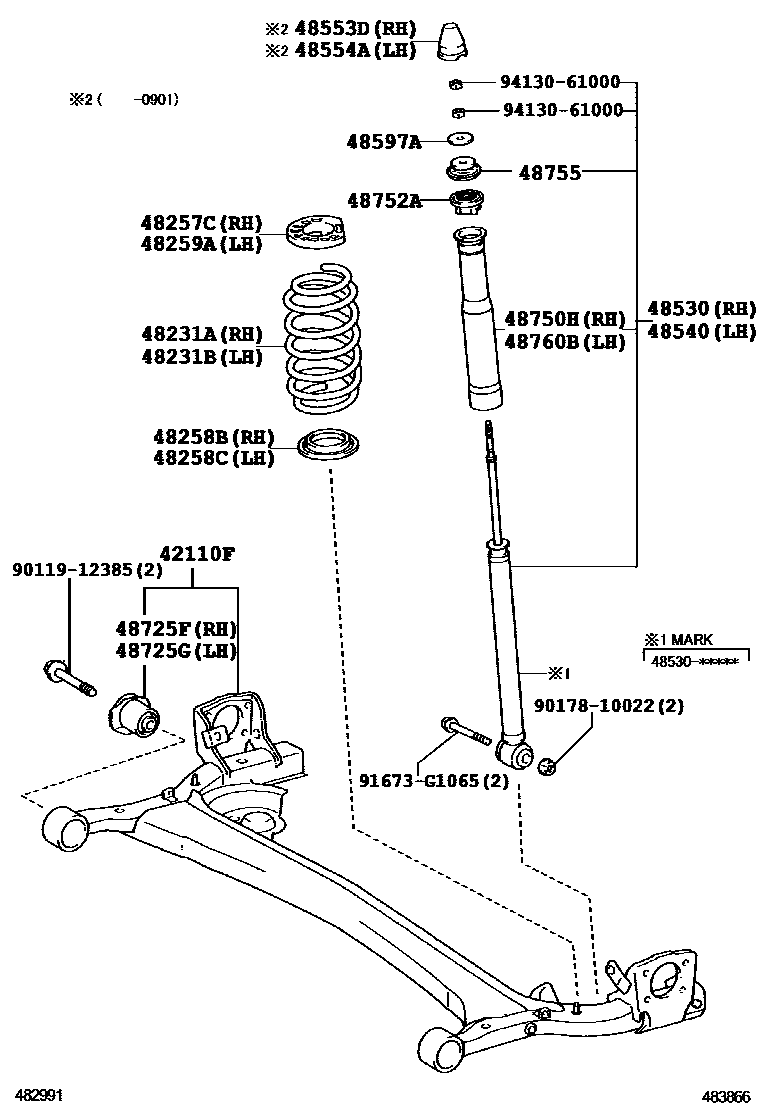

REAR SPRING & SHOCK ABSORBER
48231ASPRING, COIL, REAR RH
MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.
MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.
MEXICO SPEC
MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 ROUGH 5.5JALLOY
MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 ROUGH 5.5JBLW/N
sub48231-52A51
48231BSPRING, COIL, REAR LH
MEXICO SPEC
MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.
MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.
MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 ROUGH 5.5JALLOY
MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 ROUGH 5.5JBLW/N
sub48231-52A51
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-52B00,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROADSPEC.
sub48530-80324
MARK 48530-52B00,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.
sub48530-80324
MARK 48530-52B00,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 ROUGH 5.5JALLOY
sub48530-80324
MARK 48530-52B00,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 ROUGH 5.5JBLW/N
sub48530-80324
MARK 48530-52F10
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-52B00,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROADSPEC.
sub48530-80324
MARK 48530-52B00,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.
sub48530-80324
MARK 48530-52B00,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 ROUGH 5.5JALLOY
sub48530-80324
MARK 48530-52B00,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 ROUGH 5.5JBLW/N
sub48530-80324
MARK 48530-52F10
48553DCAP, REAR SHOCK ABSORBER, RH
48554ACAP, REAR SHOCK ABSORBER, LH
48597ARETAINER, REAR SHOCK ABSORBER CUSHION
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48752ASTOPPER, REAR SUSPENSION SUPPORT
48755SUPPORT, REAR SUSPENSION
48760BSUPPORT ASSY REAR SUSPENSION, LH
9011912385
main90119-12385
9017810022
main90178-10022
91673G1065
main91673-G1065
9413061000
main94130-61000
22 parts on this diagram · 1 diagram in section
