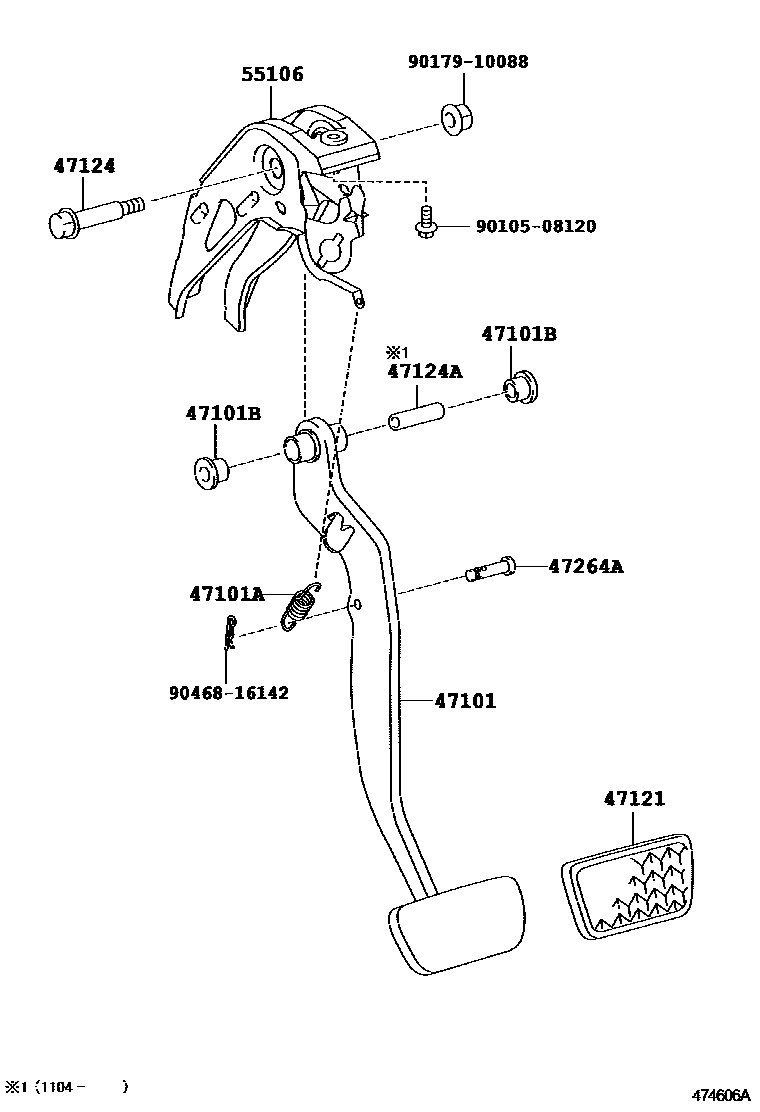

BRAKE PEDAL & BRACKET
47101PEDAL SUB-ASSY, BRAKE
sub47101-52251
ABS (ANTI-LOCK BRK SYSTM)-WITH(W/O BRAKE ASSIST)
sub47101-52251
ABS (ANTI-LOCK BRK SYSTM)-WITH(W/O BRAKE ASSIST)
sub47101-52261
sub47101-52261
ABS (ANTI-LOCK BRK SYSTM)-WITHOUT
ABS-WITHOUT
ABS (ANTI-LOCK BRK SYSTM)-WITHOUT
ABS-WITHOUT
47101ASPRING(FOR BRAKE PEDAL RETURN)
47101BBUSH(FOR BRAKE PEDAL)
47121PAD, BRAKE PEDAL
47124ACOLLAR(FOR BRAKE PEDAL SHAFT)
47264APIN(FOR PUSH ROD)
55106SUPPORT SUB-ASSY, BRAKE PEDAL
ABS (ANTI-LOCK BRK SYSTM)-WITH(W/O BRAKE ASSIST)
9010508120
9017910088
9046816142
11 parts on this diagram · 1 diagram in section
