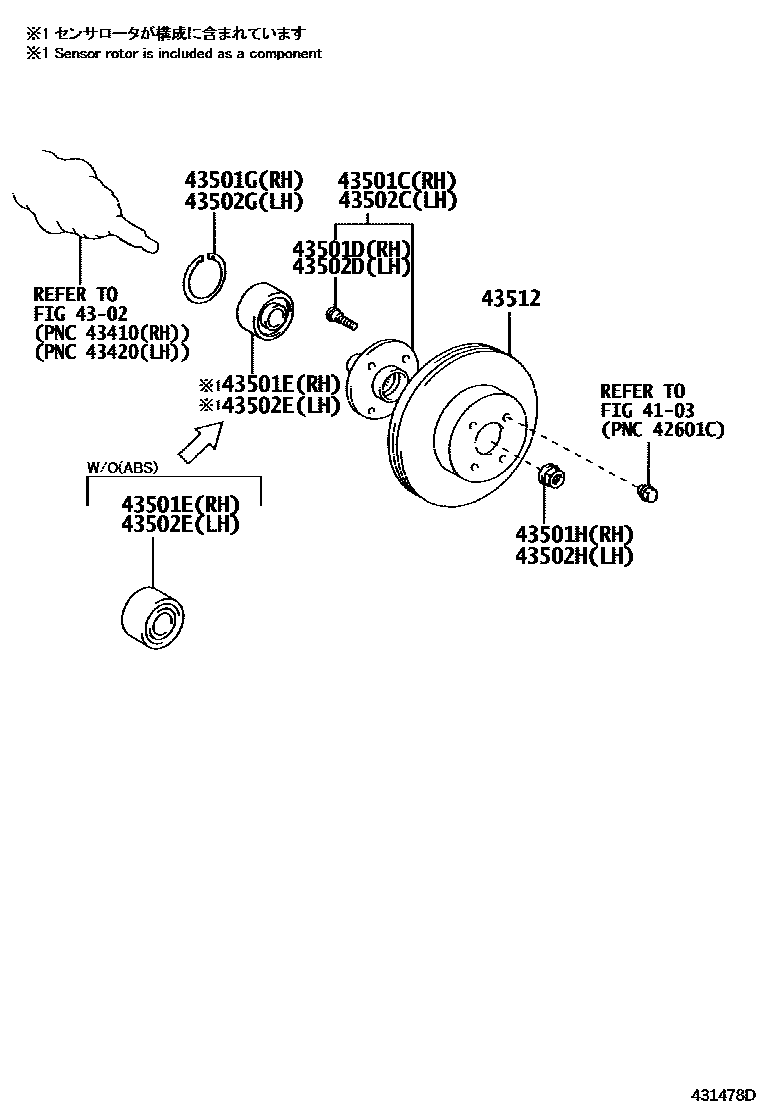

FRONT AXLE HUB
4103
4302
43501CHUB SUB-ASSY, FRONT AXLE, RH
43501DBOLT, HUB (FOR FRONT AXLE RH)
43501EBEARING (FOR FRONT AXLE HUB RH)
ABS (ANTI-LOCK BRK SYSTM)-WITH(W/O BRAKE ASSIST)
sub90369-40009
sub90369-40009
PUERTO RICO SPEC&ABS(ANTI-LOCK BRK SYSTM)-WITHOUT
sub90363-40079
43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
43501HNUT (FOR FRONT AXLE SHAFT RH)
43502CHUB SUB-ASSY, FRONT AXLE, LH
43502DBOLT, HUB (FOR FRONT AXLE LH)
43502EBEARING (FOR FRONT AXLE HUB LH)
ABS (ANTI-LOCK BRK SYSTM)-WITH(W/O BRAKE ASSIST)
sub90369-40009
sub90369-40009
PUERTO RICO SPEC&ABS(ANTI-LOCK BRK SYSTM)-WITHOUT
sub90363-40079
43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)
43502HNUT (FOR FRONT AXLE SHAFT LH)
43512DISC, FRONT
ABS(ANTI-LOCK BRK SYSTM)-WITHOUT
PUERTO RICO SPEC
PUERTO RICO SPEC&ABS(ANTI-LOCK BRK SYSTM)-WITHOUT
13 parts on this diagram · 1 diagram in section
