DISC WHEEL & WHEEL CAP

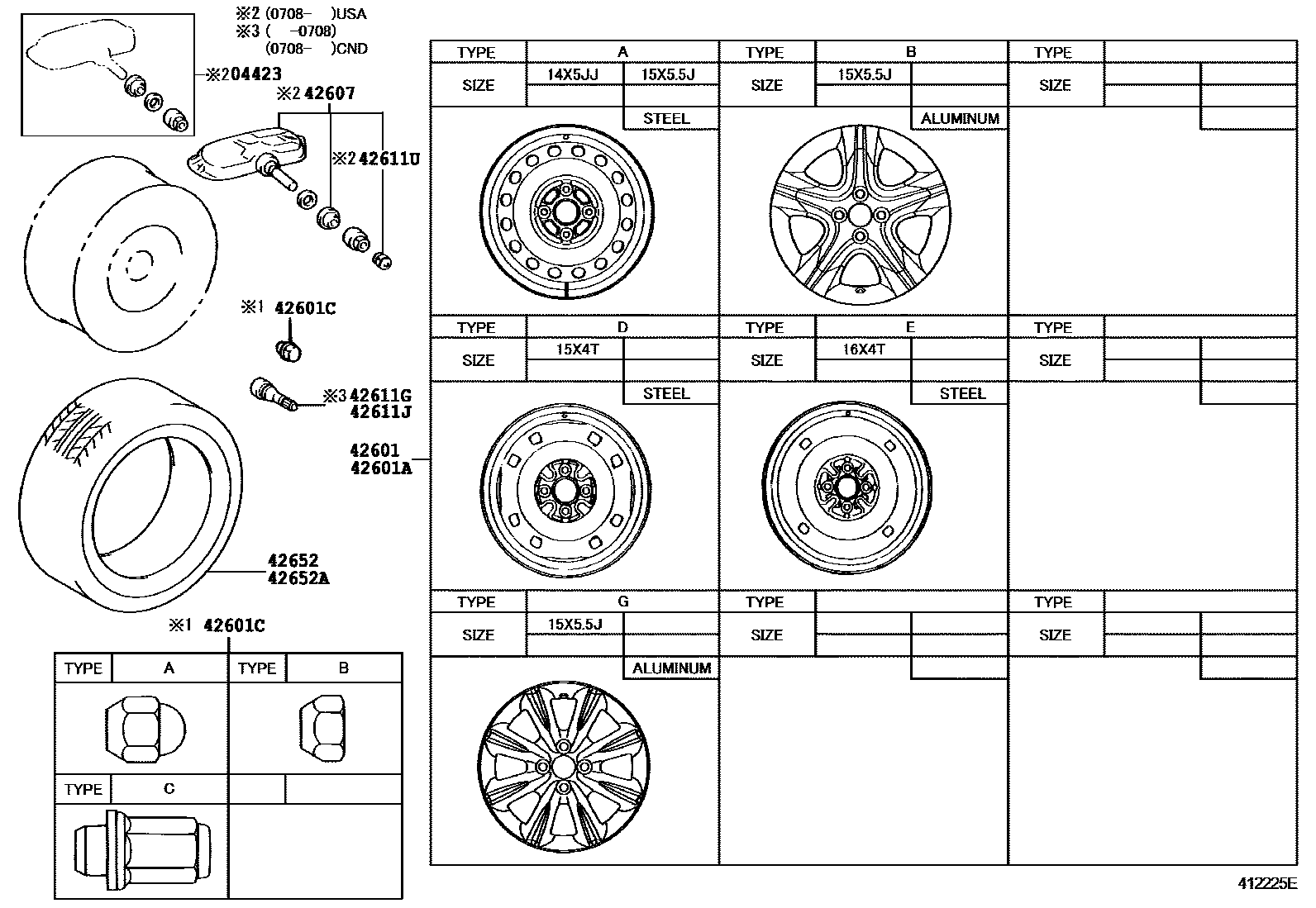

Parts diagram
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
main04423-33030i200708-200808
sub04423-33060
42601WHEEL, DISC
main42611-52490i200508-200706
14X5J, #,TYPE A:REFER ILLUST.
sub42611-52491
main42611-52491i200707-200907
14X5J, #,TYPE A:REFER ILLUST.
sub42611-52492
main42611-52492i200908-201009
14X5J, #,TYPE A:REFER ILLUST.
sub42611-52493
main42611-52493i201010-201107
14X5J, #,TYPE A:REFER ILLUST.
main42611-52500i200508-200706
15X5.5J, #,TIRE & DISK WHEEL-185/60R15 5.5J BLACK,TYPE A:REFER ILLUST.
sub42611-52501
main42611-52500i200508-200706
15X5.5J, #,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.,TYPE A:REFER ILLUST.
sub42611-52501
main42611-52500i200607-200706
15X5.5J, #,PUERTO RICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J STEEL BLACK,TYPE A:REFER ILLUST.
sub42611-52501
main42611-52500i200508-200607
15X5.5J, #,TIRE & DISK WHEEL-185/60R15 5.5J STEEL BLACK,TYPE A:REFER ILLUST.
sub42611-52501
main42611-52501i200710-200907
15X5.5J, #,TYPE A:REFER ILLUST.
sub42611-52502
main42611-52501i200707-200907
15X5.5J, #,PUERTO RICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J STEEL BLACK,TYPE A:REFER ILLUST.
sub42611-52502
main42611-52501i200707-200907
15X5.5J, #,TIRE & DISK WHEEL-185/60R15 5.5J BLACK,TYPE A:REFER ILLUST.
sub42611-52502
main42611-52501i200708-200808
15X5.5J, #,PUERTO RICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J AS BL W/N,TYPE A:REFER ILLUST.
sub42611-52502
main42611-52501i200708-200808
15X5.5J, #,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 ROUGH 5.5JBLW/N,TYPE A:REFER ILLUST.
sub42611-52502
main42611-52501i200708-200808
15X5.5J, #,TIRE & DISK WHEEL-185/60R15 AS5.5J BLACK,TYPE A:REFER ILLUST.
sub42611-52502
main42611-52501i200707-200708
15X5.5J, #,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.,TYPE A:REFER ILLUST.
sub42611-52502
main42611-52502i200908-201107
15X5.5J, #,TYPE A:REFER ILLUST.
sub42611-52503
main42611-52502i200908-201107
15X5.5J, #,TIRE & DISK WHEEL-185/60R15 5.5J BLACK,TYPE A:REFER ILLUST.
sub42611-52503
main42611-52502i200908-201107
15X5.5J, #,PUERTO RICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J STEEL BLACK,TYPE A:REFER ILLUST.
sub42611-52503
main42611-52510i200508-200707
15X5.5J, #,TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM,TYPE B:REFER ILLUST.
sub42611-52511
main42611-52510i200508-200707
15X5.5J, #,TYPE B:REFER ILLUST.
sub42611-52511
main42611-52510i200508-200706
15X5.5J, #,MEXICO SPEC,TYPE B:REFER ILLUST.
sub42611-52511
main42611-52510i200508-200706
15X5.5J, #,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.,TYPE B:REFER ILLUST.
sub42611-52511
main42611-52511i200707-200808
15X5.5J, #,TYPE B:REFER ILLUST.
sub42611-52611
main42611-52511i200707-200708
15X5.5J, #,TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM,TYPE B:REFER ILLUST.
sub42611-52611
main42611-52511i200707-200708
15X5.5J, #,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.,TYPE B:REFER ILLUST.
sub42611-52611
main42611-52511i200708-200808
15X5.5J, #,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 ROUGH 5.5JALLOY,TYPE B:REFER ILLUST.
sub42611-52611
main42611-52511i200708-200808
15X5.5J, #,TIRE & DISK WHEEL-185/60R15 AS5.5J ALLOY,TYPE B:REFER ILLUST.
sub42611-52611
main42611-52530i201101-201107
15X5.5, #,TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM
main42611-52530i200808-201107
15X5.5, #,TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM,TYPE G:REFER ILLUST.
main42611-52530i200808-201107
15X5.5, #,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.,TYPE G:REFER ILLUST.
main42611-52530i200808-201107
15X5.5, #,TYPE G:REFER ILLUST.
main42611-52540i200508-200706
14X5J, #,TIRE & DISK WHEEL-175/65R14 5J SILVER,TYPE A:REFER ILLUST.
sub42611-52541
main42611-52541i200707-200708
14X5J, #,TIRE & DISK WHEEL-175/65R14 5J SILVER,TYPE A:REFER ILLUST.
sub42611-52542
main42611-52541i200708-200710
14X5J, #,TIRE & DISK WHEEL-175/65R14 AS5J SILVER,TYPE A:REFER ILLUST.
sub42611-52542
42601AWHEEL, DISC (FOR SPARE)
main42611-1A020i200508-200708
15X4T,TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.,TYPE D:REFER ILLUST.
main42611-1A020i200508-201107
15X4T,TYPE D:REFER ILLUST.
main42611-1A020i200508-200708
15X4T,TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.,TYPE D:REFER ILLUST.
main42611-1A240i200711-200911
16X4T,MEXICO SPEC,TYPE E:REFER ILLUST.
main42611-1A240i200711-200808
16X4T,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 ROUGH 5.5JBLW/N,TYPE E:REFER ILLUST.
main42611-1A240i200711-200808
16X4T,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 ROUGH 5.5JALLOY,TYPE E:REFER ILLUST.
main42611-1A240i200808-200911
16X4T,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.,TYPEE:REFER ILLUST.
main42611-1A240i200808-200911
16X4T,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.,TYPE E:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
main90942-01007i200508-201108
TYPE B:REFER ILLUST.
main90942-01021i200508-200708
TIRE & DISK WHEEL-175/65R14 5J SILVER,TYPE A:REFER ILLUST.
main90942-01021i200508-201108
TIRE & DISK WHEEL-185/60R15 5.5J BLACK,TYPE A:REFER ILLUST.
main90942-01021i200508-200708
TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.,TYPE A:REFER ILLUST.
main90942-01021i200508-201108
TIRE & DISK WHEEL-185/60R15 5.5J STEEL BLACK,TYPE A:REFER ILLUST.
main90942-01021i200708-200808
TIRE & DISK WHEEL-185/60R15 AS5.5J BLACK,TYPE A:REFER ILLUST.
main90942-01021i200708-200710
TIRE & DISK WHEEL-175/65R14 AS5J SILVER,TYPE A:REFER ILLUST.
main90942-01021i200708-200710
TIRE & DISK WHEEL-185/60R15 ROUGH 5.5JBLW/N,TYPE A:REFER ILLUST.
main90942-01021i200708-200808
TIRE & DISK WHEEL-185/60R15 5.5J AS BL W/N,TYPE A:REFER ILLUST.
main90942-01021i200710-201108
TYPE A:REFER ILLUST.
main90942-01021i200808-201108
SPORT PACKAGE&TIRE & DISK WHEEL-185/60R15 5.5J BLACK,TYPE A:REFER ILLUST.
main90942-01033i200508-201108
TYPE C:REFER ILLUST.
main90942-01033i200708-200808
TIRE & DISK WHEEL-185/60R15 AS5.5J ALLOY,TYPE C:REFER ILLUST.
main90942-01033i200708-200808
TIRE & DISK WHEEL-185/60R15 ROUGH 5.5JALLOY,TYPE C:REFER ILLUST.
main90942-01033i200508-201108
TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM,TYPE C:REFER ILLUST.
main90942-01033i200508-201108
TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.,TYPE C:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
main42607-33011i200708-201012
sub42607-33012
main42607-52010i200808-200911
sub42607-33011
main42607-52030i201101-201107
sub42607-33011
42611GVALVE (FOR TUBELESS TIRE)
main90942-05009i200508-200708
MEXICO SPEC
main90942-05009i200508-200708
TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM
main90942-05009i200708-201107
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009i200508-200708
TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.
main90942-05009i200508-200708
TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.
main90942-05009i200708-201107
42611UCAP, TIRE VALVE
main90942-05039i200708-201107
42652TIRE
main42652-52710i200508-201108
185/60R15 *B/S,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.
sub42652-52711
main42652-52710i200508-201108
185/60R15 *B/S,MEXICO SPEC
sub42652-52711
main42652-52710i200508-201108
185/60R15 *B/S,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.
sub42652-52711
main42652-52710i200708-200808
185/60R15 *B/S,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 ROUGH 5.5JALLOY
sub42652-52711
main42652-52720i200508-201010
P175/65R14 *B/S
main42652-52730i200602-201010
P175/65R14 *D/L
main42652-52740i200508-201107
P185/60R15 *B/S
main42652-52740i200508-200607
P185/60R15 *B/S,TIRE & DISK WHEEL-185/60R15 5.5J STEEL BLACK
main42652-52740i200508-200708
P185/60R15 *B/S,TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM
main42652-52740i200508-200708
P185/60R15 *B/S,TIRE & DISK WHEEL-185/60R15 5.5J BLACK
main42652-52740i200607-200708
P185/60R15 *B/S,PUERTO RICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J STEEL BLACK
main42652-52740i200708-200808
P185/60R15 *B/S,TIRE & DISK WHEEL-185/60R15 AS5.5J ALLOY
main42652-52750i200508-201107
185/60R15,GOODYEAR
main42652-52750i200708-200808
185/60R15,GOODYEAR,TIRE & DISK WHEEL-185/60R15 AS5.5J ALLOY
main42652-52750i200508-200607
185/60R15,GOODYEAR,TIRE & DISK WHEEL-185/60R15 5.5J STEEL BLACK
main42652-52750i200508-200708
185/60R15,GOODYEAR,TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM
main42652-52750i200607-200708
185/60R15,GOODYEAR,PUERTO RICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J STEEL BLACK
main42652-52750i200508-200708
185/60R15,GOODYEAR,TIRE & DISK WHEEL-185/60R15 5.5J BLACK
42652ATIRE (FOR SPARE)
main42652-12E50i200510-200708
T125/70D15,*T/Y,TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.
main42652-12E50i200510-200908
T125/70D15,*T/Y
main42652-12E50i200510-200708
T125/70D15,*T/Y,TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.
main42652-12E50i200908-201108
T125/70D15,*T/Y,PUERTO RICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J STEEL BLACK
main42652-32520i200508-200708
T125/70D15,*B/S,TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.
main42652-32520i200508-201108
T125/70D15,*B/S
main42652-32520i200508-200708
T125/70D15,*B/S,TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.
main42652-32520i200908-201108
T125/70D15,*B/S,VSC-WITH
main42652-47080i200711-200808
T125/70D16 96M,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 ROUGH 5.5JALLOY
main42652-47080i200711-200808
T125/70D16 96M,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 ROUGH 5.5JBLW/N
main42652-47080i200711-200911
T125/70D16 96M,MEXICO SPEC
main42652-47080i200808-200911
T125/70D16 96M,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.
main42652-47080i200808-200911
T125/70D16 96M,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.
main4265A-52020i200911-201108
T125/70D15,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.
main4265A-52020i200911-201108
T125/70D15,MEXICO SPEC
main4265A-52020i200911-201108
T125/70D15,MEXICO SPEC&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.

10 parts on this diagram · 3 diagrams in section
