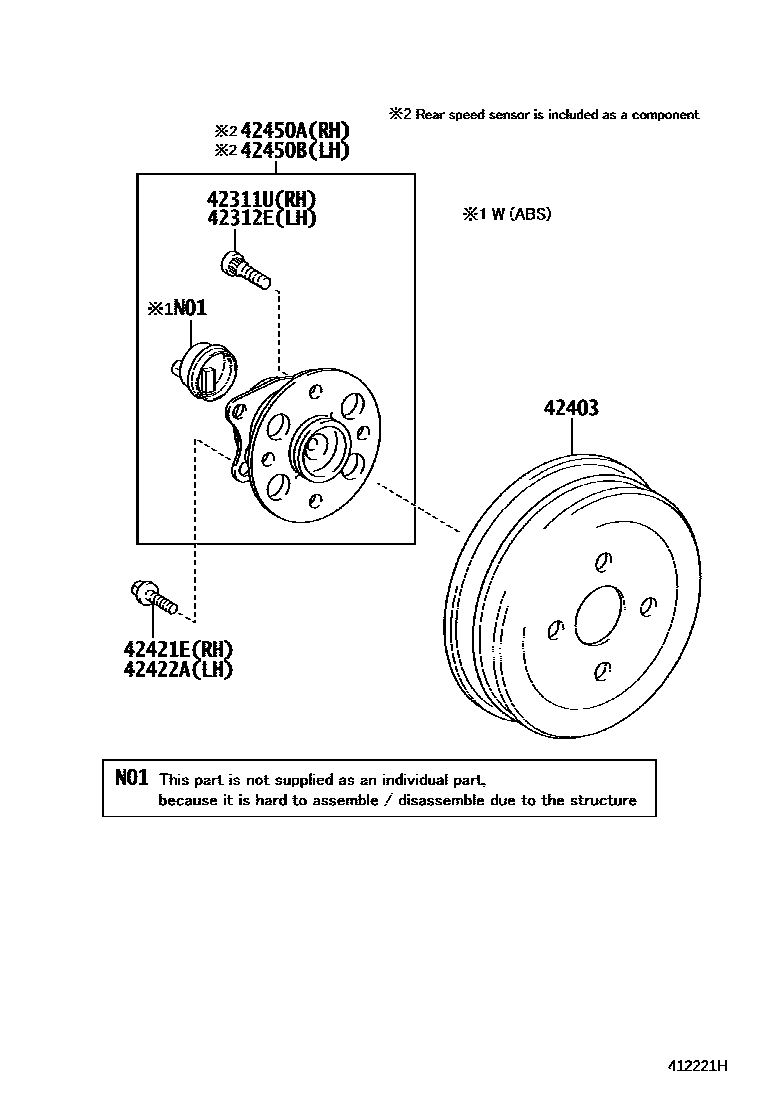

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iNCP91200508-201107

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iNCP91200508-201107

42403DRUM SUB-ASSY, REAR BRAKE

main42431-52070iNCP91200508-201107

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350iNCP91200508-201107

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350iNCP91200508-201107

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-52070iNCP91..CND200508-200708

ABS-WITHOUT

main42410-52070iNCP91..USA200708-200808

ABS (ANTI-LOCK BRK SYSTM)-WITHOUT

main42450-52060iNCP91..USA200708-200808

ABS (ANTI-LOCK BRK SYSTM)-WITH(W/O BRAKE ASSIST)

sub42450-52061

main42450-52060iNCP91200808-201108

sub42450-52061

main42450-52060iNCP91..CND200508-200708

ABS-WITH(W/O BRAKE ASSIST)

sub42450-52061

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-52070iNCP91..CND200708-200808

ABS (ANTI-LOCK BRK SYSTM)-WITHOUT

main42410-52070iNCP91..USA200508-200708

ABS-WITHOUT

main42450-52060iNCP91..CND200508-200708

ABS-WITH(W/O BRAKE ASSIST)

sub42450-52061

main42450-52060iNCP91200808-201108

sub42450-52061

main42450-52060iNCP91..USA200708-200808

ABS (ANTI-LOCK BRK SYSTM)-WITH(W/O BRAKE ASSIST)

sub42450-52061

7 parts on this diagram · 1 diagram in section
