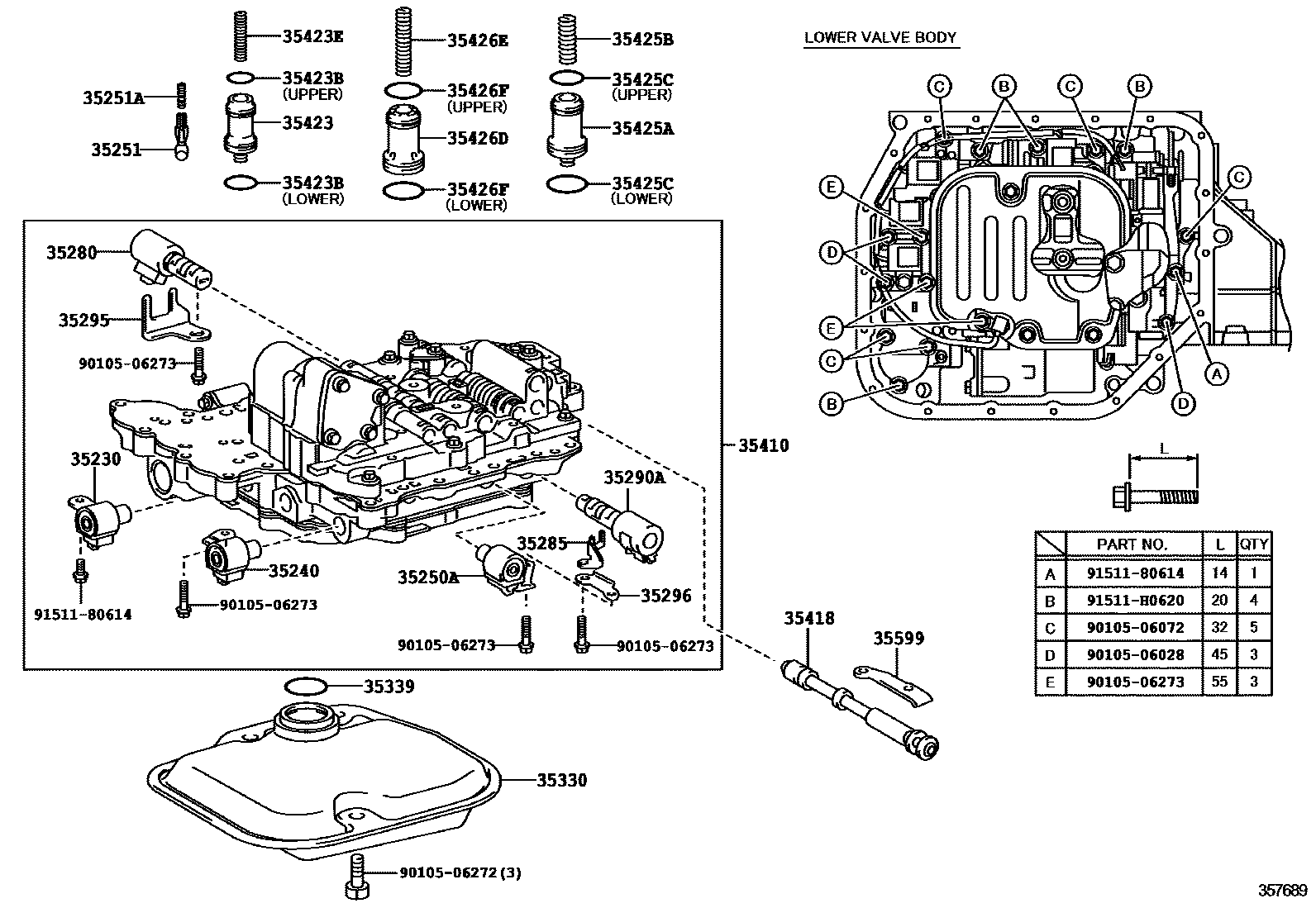

VALVE BODY & OIL STRAINER (ATM)

0001 1U340E 0002 1U340E

35230SOLENOID ASSY, TRANSMISSION 3WAY, NO.2

main35230-52020iNCP91..4FC¥16,000200508-201107

sub35230-52021¥11,100

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-52050iNCP91..4FC..CND;NCP91..3D..4FC..USA¥16,000200508-201107

sub35240-52051¥11,100

35250ASOLENOID ASSY, TRANSMISSION, NO.3

main35250-52080iNCP91..4FC..CND;NCP91..3D..4FC..USA¥11,100200508-200808

35251BODY, CHECK BALL

main35251-30020iNCP91..4FC..CND;NCP91..3D..4FC..USA¥1,020200508-200808

35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)

main90501-03005iNCP91..4FC..CND;NCP91..3D..4FC..USA¥90200508-200808

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-52040iNCP91..4FC¥7,700200508-200808

35285PLATE, SOLENOID LOCK

main35285-52030iNCP91..4FC..CND;NCP91..3D..4FC..USA¥260200508-200808

35290ASOLENOID ASSY, LINE PRESSURE CONTROL

main35290-52040iNCP91..4FC..CND;NCP91..3D..4FC..USA¥7,700200508-200808

35295PLATE, SOLENOID LOCK, NO.2

main35295-52020iNCP91..4FC..CND;NCP91..3D..4FC..USA¥220200508-200808

35296PLATE, SOLENOID LOCK, NO.3

main35296-12010iNCP91..4FC..CND;NCP91..3D..4FC..USA¥130200508-200808

35330STRAINER ASSY, VALVE BODY OIL

main35330-0W020iNCP91..4FC..CND;NCP91..3D..4FC..USA¥4,390200508-200808

sub35330-0W021¥3,040

35339GASKET, OIL STRAINER

main90301-32010iNCP91..4FC..CND;NCP91..3D..4FC..USA¥230200508-200808

35410BODY ASSY, TRANSMISSION VALVE

main35410-52130iNCP91..4FC..CND;NCP91..3D..4FC..USA200508-200702

sub35410-52131¥116,000

main35410-52131iNCP91..4FC..CND;NCP91..3D..4FC..USA¥116,000200702-200808

sub35410-52132¥96,200

sub35330-0W021¥3,040

35418VALVE, MANUAL

main35418-52020iNCP91..4FC..CND;NCP91..3D..4FC..USA¥1,950200508-200808

35423PISTON, B-2 ACCUMULATOR

main35403-52020iNCP91..4FC¥820200508-200808

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-20010iNCP91..4FC..CND;NCP91..3D..4FC..USA¥190200508-200808

UPPER

main90301-29011iNCP91..4FC¥190200508-200808

LOWER

35423ESPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON)

main90501-20158iNCP91..4FC¥180200508-200808

35425APISTON, C-2 ACCUMULATOR

main35405-52020iNCP91..4FC¥880200508-200808

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-24036iNCP91..4FC¥200200508-200808

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-22010iNCP91..4FC¥190200508-200808

UPPER

main90301-35004iNCP91..4FC¥190200508-200808

LOWER

35426DPISTON, C-3 ACCUMULATOR

main35426-52020iNCP91..4FC¥2,170200508-200808

35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

main90501-25057iNCP91..4FC¥200200508-200808

35426FRING, O (FOR C-3 ACCUMULATOR PISTON)

main90301-24016iNCP91..4FC¥190200508-200808

UPPER

main90301-29011iNCP91..4FC¥190200508-200808

LOWER

35599COVER, MANUAL DETENT SPRING

main35599-52010iNCP91..4FC..CND;NCP91..3D..4FC..USA¥260200508-200808

9010506028

main90105-06028¥80

9010506072

main90105-06072¥110

9010506272

main90105-06272¥130

9010506273

main90105-06273¥170

9151180614

main91511-80614¥100

91511H0620

main91511-H0620¥110

30 parts on this diagram · 2 diagrams in section
