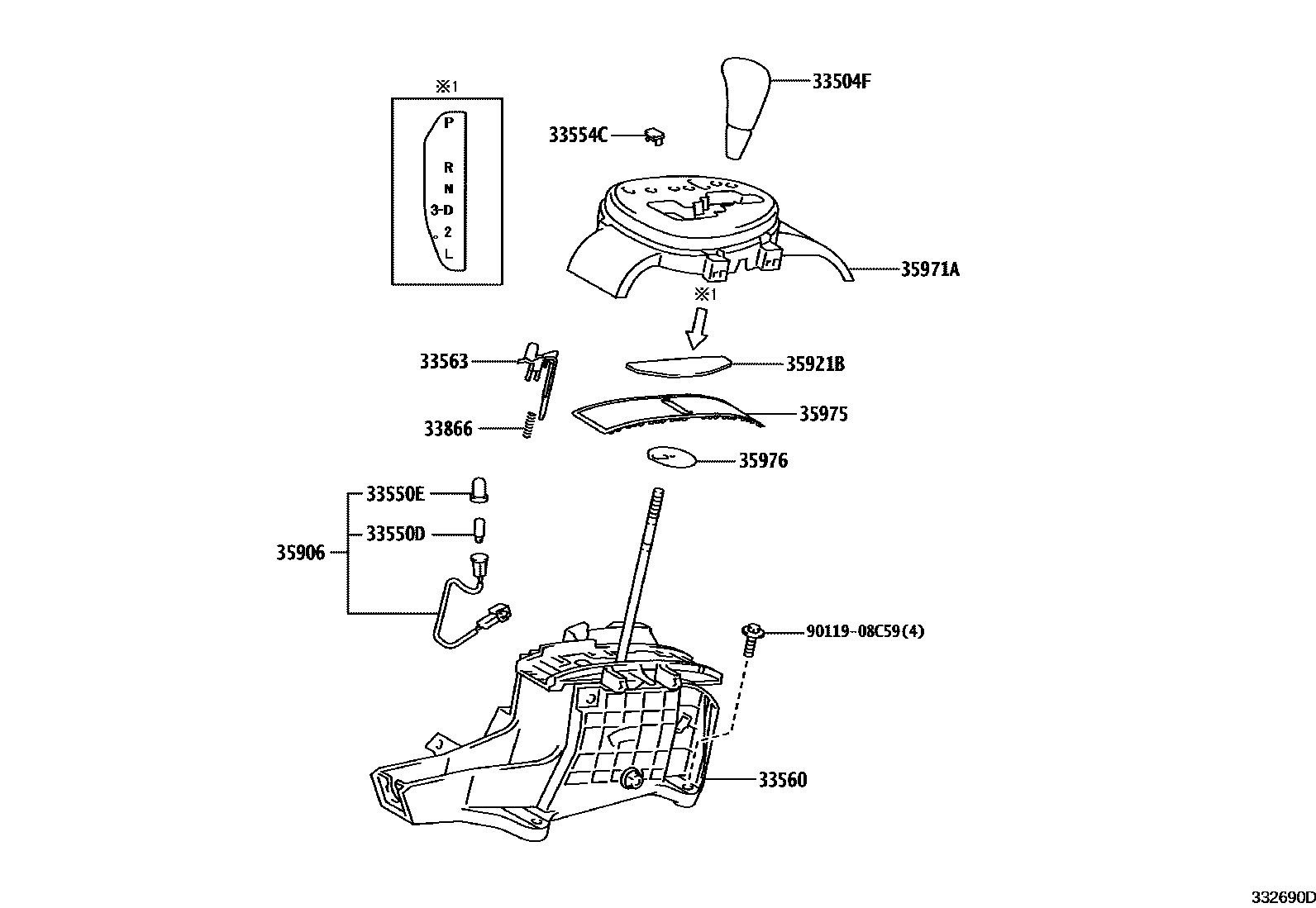

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
DK.GRAY,TRIM1#
SPORTS PACKAGE,DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
SPORT PACKAGE,DK.GRAY,TRIM1#
33550DBULB, POSITION INDICATOR LAMP
12V 1.4W
33550ECAP, POSITION INDICATOR LAMP
SPORTS PACKAGE
33554CCOVER, SHIFT LOCK RELEASE BUTTON
33560UNIT ASSY, SHIFT LOCK CONTROL
33563BUTTON, SHIFT LOCK RELEASE
33866SPRING, SHIFT LOCK RELEASE
35906WIRE SUB-ASSY, INDICATOR LAMP
SPORTS PACKAGE
35921BPLATE, CONTROL POSITION INDICATOR NO,2
35971AHOUSING, POSITION INDICATOR, UPPER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
9011908C59
main90119-08C59
13 parts on this diagram · 3 diagrams in section
