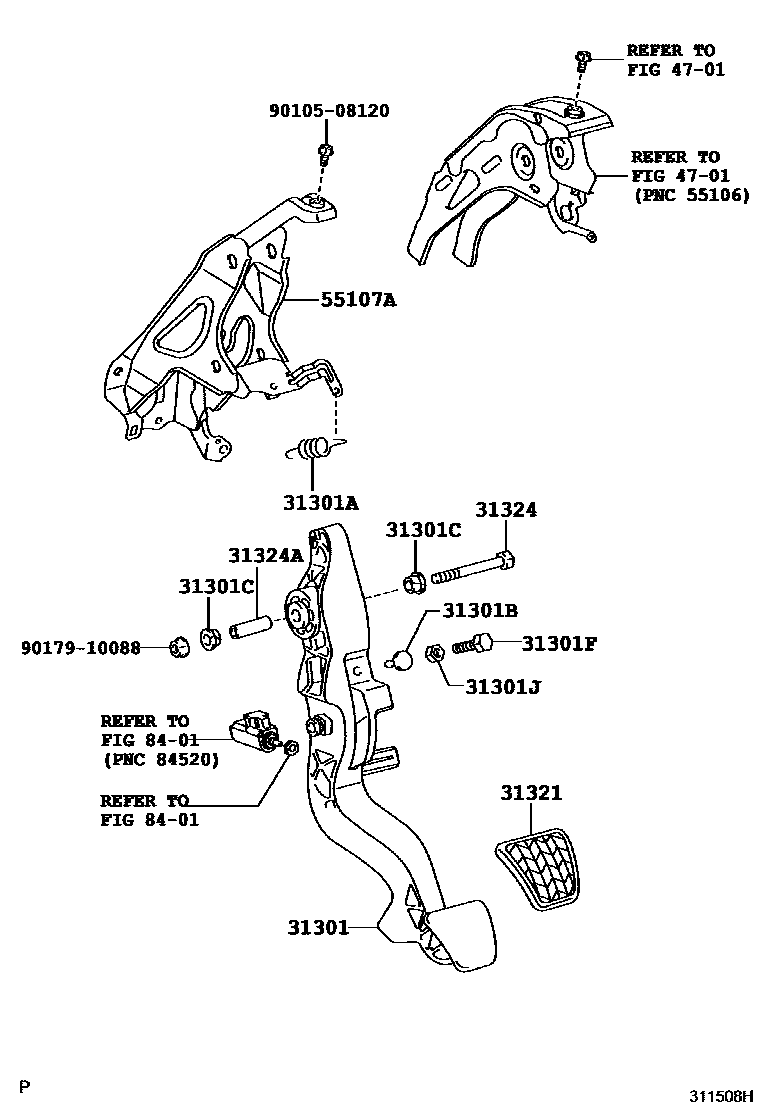

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31311-52040iNCP91..5F200508-200808

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iNCP91..5F200508-200808

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iNCP91..5F200508-200808

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iNCP91..5F200508-200808

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iNCP91..5F200508-200808

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94130-61000iNCP91..5F200508-201108

31321PAD, CLUTCH PEDAL

main31321-52010iNCP91..5F200508-200808

31324SHAFT, CLUTCH PEDAL

main90101-10081iNCP91..5F200508-201012

main90105-10563iNCP91..5F201101

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10004iNCP91..5F200508-200808

4701

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-52120iNCP91..5F200508-201012

sub55107-52121

main55107-52121iNCP91..5F201101

8401

9010508120

main90105-08120

9017910088

main90179-10088

14 parts on this diagram · 2 diagrams in section
